Consists of: Master Link MF, C-grab CG, C-grab Duo CGD, Chain KLA, Safety Hook GBK
RUD PSA-VRS UNC Fall Protection Anchorage Point
WLL range 1 – 2 persons Non-removable special bolt
Categories

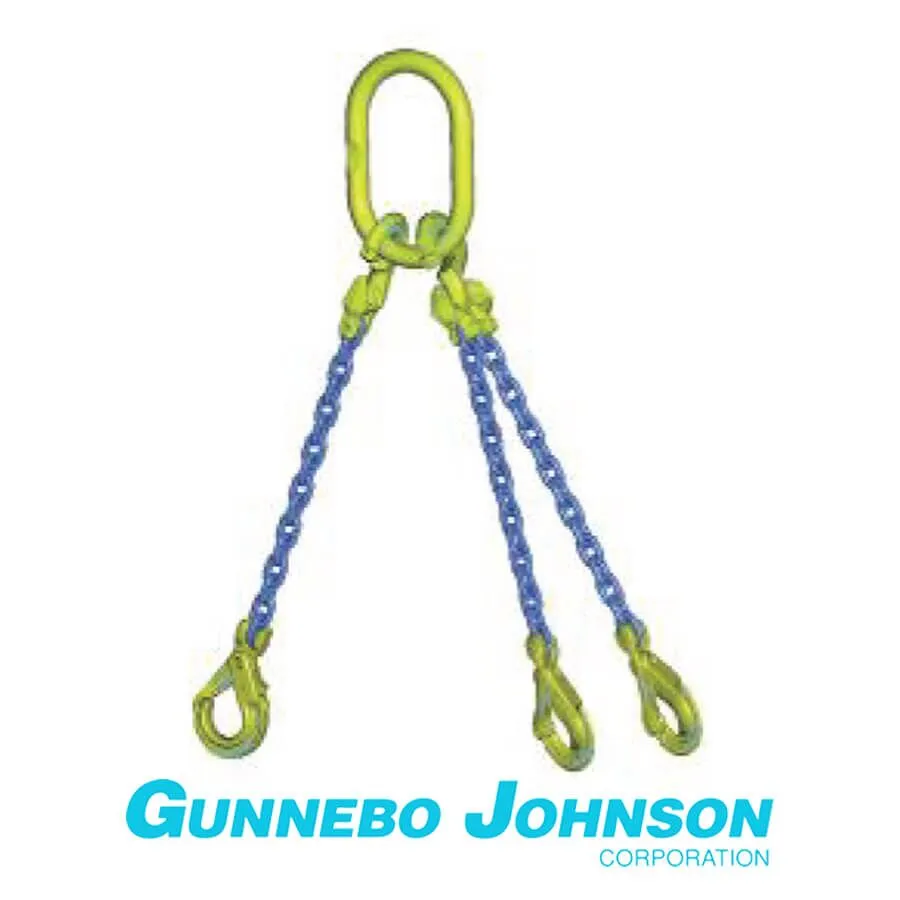

Gunnebo-Johnson GrabiQ Triple Leg TG3-GBK
| Chain Size | WLL (lb) | Total Component Length (in) | |||
|---|---|---|---|---|---|
| (mm) | (in) |  60° |
45° |
30° |
|
| 6 | – | 8400 | 6800 | 4850 | 12.24 |
| 8 | 5/16” | 14800 | 12100 | 8500 | 15.43 |
| 10 | 3/8” | 22900 | 18700 | 13200 | 18.66 |
| 13 | 1/2” | 39000 | 31800 | 22500 | 23.78 |
| 16 | 5/8” | 58700 | 47900 | 33900 | 26.77 |
4:1 Design Factor
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
