RUD PSA-VRS UNC Fall Protection Anchorage Point
WLL range 1 – 2 persons Non-removable special bolt
Categories

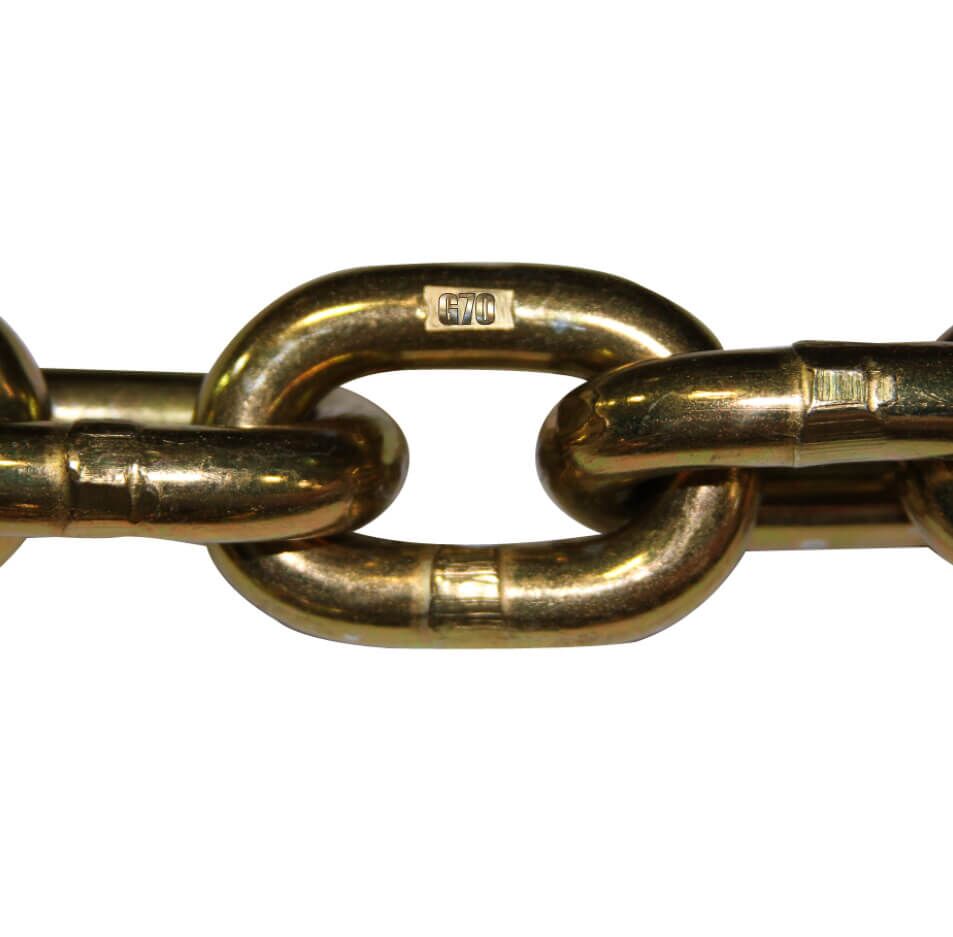

Grade 70 Binding Chain
| CERTEX Cat. Ref. No. | Trade Size In Inches | Material Size | Nominal Inside Link Dimensions, Inches | Maximum Length, 100 Links, Inches | Weight per 100 ft. In Pounds | Working* Load Limit In Pounds | ||
|---|---|---|---|---|---|---|---|---|
| Inches | Decimal | Length | Width | |||||
| CX06-0739 | 1/4 | 9/32 | .281 | .84 | .48 | 87 | 74 | 3,150 |
| CX06-0740 | 5/16 | 11/32 | .327 | .99 | .47 | 102 | 100 | 4,700 |
| CX06-0741 | 3/8 | 13/32 | .406 | 1.15 | .54 | 119 | 156 | 6,600 |
| CX06-0742 | 7/16 | 15/32 | .468 | 1.30 | .62 | 134 | 204 | 8,750 |
| CX06-0743 | 1/2 | 17/32 | .531 | 1.45 | .73 | 149 | 259 | 11,300 |
Dimensions and weights are approximate and subject to variations.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
