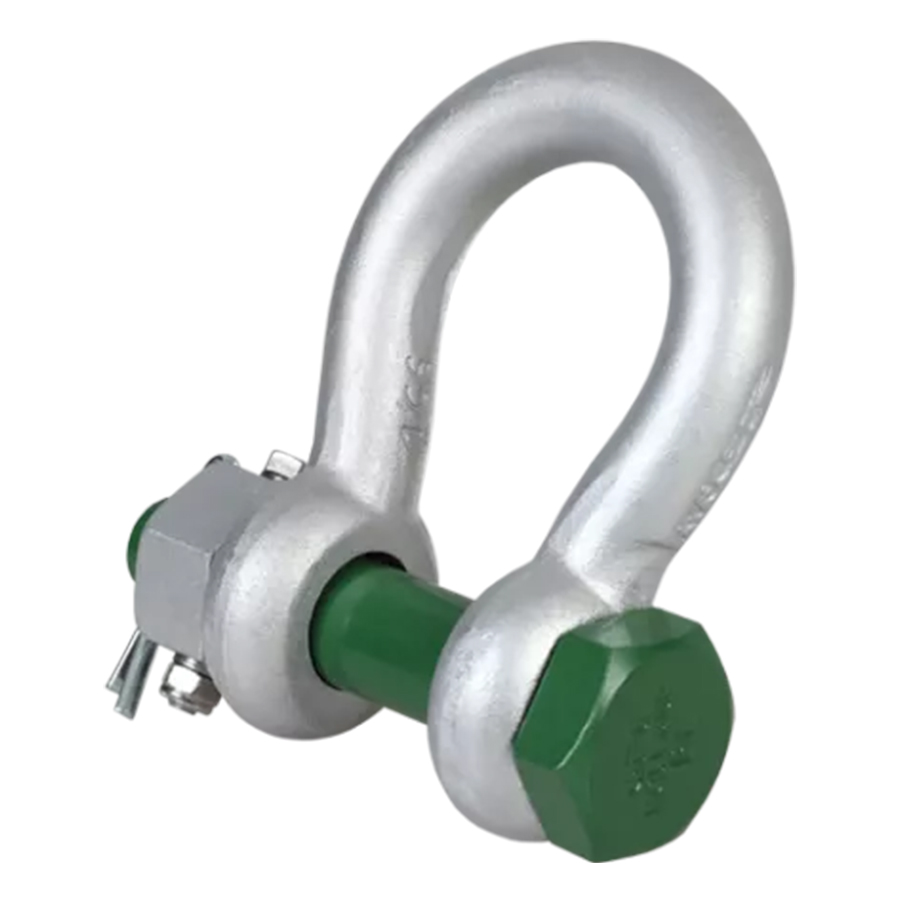

Standard bow shackle with safety bolt and fixed nut
Productcode
G-4143
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
DNV 2.7-1a
DNV 2.7-1b
CE
Standard
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A, from 2 t and upward these shackles comply with ASME B30.26
| Article code | working load limit (ton) | diameter bow (mm) A  |
diameter pin (mm) B |
diameter eye (mm) C |
width eye (mm) D |
width inside (mm) E |
length inside (mm) F |
width bow (mm) G |
length (mm) H |
length bolt (mm) I |
width (mm) J |
thickness nut (mm) K |
securing bolt thread (mm) L |
securing bolt length (mm) M |
Torque (nm) | Net weight (KG) | |
 |
GPGHMB13FN | 2 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 90 | 80 | 59 | 13 | M6 | 35 | 8,4 | 0.42 |
|
GPGHMB16FN | 3,25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | M6 | 40 | 8,4 | 0.74 |
|
GPGHMB19FN | 4,75 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 115 | 89 | 19 | M6 | 45 | 8,4 | 1.18 |
|
GPGHMB22FN | 6,5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | M8 | 50 | 20 | 1.77 |
|
GPGHMB25FN | 8,5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | M8 | 55 | 20 | 2.58 |
|
GPGHMB28FN | 9,5 | 28 | 32 | 67 | 28 | 47 | 108 | 75 | 186 | 166 | 131 | 27 | M10 | 60 | 39 | 3.66 |
|
GPGHMB32FN | 12 | 32 | 35 | 73 | 32 | 51 | 115 | 83 | 201 | 184 | 147 | 30 | M10 | 65 | 39 | 4.80 |
|
GPGHMB35FN | 13,5 | 35 | 38 | 79 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | M10 | 70 | 39 | 6.54 |
|
GPGHMB38FN | 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 19 | M8 | 75 | 20 | 8.19 |
|
GPGHMB45FN | 25 | 45 | 50 | 104 | 45 | 74 | 178 | 126 | 300 | 243 | 216 | 23 | M8 | 90 | 20 | 14.0 |
|
GPGHMB50FN | 35 | 50 | 57 | 112 | 50 | 83 | 197 | 138 | 332 | 269 | 238 | 26 | M10 | 100 | 39 | 19.9 |
|
GPGHMB57FN | 42,5 | 57 | 65 | 132 | 57 | 95 | 222 | 160 | 378 | 301 | 274 | 29 | M12 | 110 | 68 | 28.3 |
|
GPGHMB65FN | 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 329 | 310 | 32 | M12 | 120 | 68 | 39.6 |
|
GPGHMB75FN | 85 | 75 | 83 | 167 | 75 | 127 | 330 | 190 | 530 | 381 | 340 | 39 | M12 | 140 | 68 | 62 |
| Article code | working load limit (ton) | diameter bow (inch) A |
diameter pin (inch) B |
diameter eye (inch) C |
width eye (inch) D |
width inside (inch) E |
length inside (inch) F |
width bow (inch) G |
length (inch) H |
length bolt (inch) I |
width (inch) J |
thickness nut (inch) K |
securing bolt thread (inch) L |
securing bolt length (inch) M |
Torque (nm) | Net weight (LBS) | |
|
GPGHMB13FN | 2 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 17/32 | 3 5/32 | 2 5/16 | 1/2 | M6 | 1 3/8 | 8,4 | 0.92 |
|
GPGHMB16FN | 3,25 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 27/32 | 2 15/32 | 21/32 | M6 | 1 9/16 | 8,4 | 1.62 |
|
GPGHMB19FN | 4,75 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 17/32 | 3 1/2 | 3/4 | M6 | 1 25/32 | 8,4 | 2.59 |
|
GPGHMB22FN | 6,5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 5 1/8 | 4 1/32 | 7/8 | M8 | 1 31/32 | 20 | 3.90 |
|
GPGHMB25FN | 8,5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 29/32 | 4 21/32 | 31/32 | M8 | 2 5/32 | 20 | 5.69 |
|
GPGHMB28FN | 9,5 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 5/16 | 6 17/32 | 5 5/32 | 1 1/16 | M10 | 2 3/8 | 39 | 8.07 |
|
GPGHMB32FN | 12 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 7 1/4 | 5 25/32 | 1 3/16 | M10 | 2 9/16 | 39 | 10.6 |
|
GPGHMB35FN | 13,5 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 3/4 | 6 3/8 | 1 5/16 | M10 | 2 3/4 | 39 | 14.4 |
|
GPGHMB38FN | 17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 7 15/16 | 6 7/8 | 3/4 | M8 | 2 15/16 | 20 | 18.1 |
|
GPGHMB45FN | 25 | 1 3/4 | 2 | 4 3/32 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 9 9/16 | 8 1/2 | 29/32 | M8 | 3 17/32 | 20 | 30.8 |
|
GPGHMB50FN | 35 | 2 | 2 1/4 | 4 13/32 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 1/16 | 10 19/32 | 9 3/8 | 1 1/32 | M10 | 3 15/16 | 39 | 43.8 |
|
GPGHMB57FN | 42,5 | 2 1/4 | 2 9/16 | 5 3/16 | 2 1/4 | 3 3/4 | 8 3/4 | 6 5/16 | 14 7/8 | 11 27/32 | 10 23/32 | 1 5/32 | M12 | 4 11/32 | 68 | 62.5 |
|
GPGHMB65FN | 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 3/32 | 17 1/16 | 12 15/16 | 12 7/32 | 1 1/4 | M12 | 4 23/32 | 68 | 87.3 |
|
GPGHMB75FN | 85 | 3 | 3 1/4 | 6 9/16 | 2 15/16 | 5 | 13 | 7 15/32 | 20 7/8 | 15 | 13 3/8 | 1 17/32 | M12 | 5 1/2 | 68 | 137 |
The Green Pin® Bow Shackle FN is a bow shackle with a safety bolt and a fixed nut. The Green Pin® Bow Shackle FN offers a triple safety due to the split pin, safety bolt and fixed nut. The fixed nut is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. When the load is dynamic or can be exposed to extreme vibrations the GreenPin® Bow Shackle FN is thus a top choice. Of course, the Green Pin® Bow Shackle FN conforms to a wide range of certifications from class societies such as DNV GL. The shackle is suitable for both one-leg and multi-leg systems. It is available in a range with a working load limit from 2 up to 85 ton.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
