Green Pin® Catch Shackle BN

Green Pin® Catch Shackle BN

Standard bow shackle with safety bolt which enables all components to be tethered

Product details

Productcode
G-4163H
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
CE
DNV 2.7-1a
DNV 2.7-1b
ABS PDA
ABS MA
Standard
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A and comply with ASME B30.26
Note
supplied without wires


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Pdf Article code working load limit (ton) Net weight (kg) diameter bow (mm) A diameter pin (mm) B
diameter eye (mm) C
 width eye (mm) D
 width inside (mm) E
 length inside (mm) F
 width bow (mm)G
length (mm) H length bolt (mm) I
 width (mm) J
 thickness nut (mm) K diameter hole (mm) L  height (mm) M   width (mm) N   Net weight (KG)
GPGHMB13H 2 0.47 13,5 16 34 13 22 51 32 89 102 58 19 15 48,4 27 0.47
GPGHMB16H 3,25 0.81 16 19 40 16 27 64 43 110 122 75 23 15 53,7 31,8 0.81
GPGHMB19H 4,75 1.32 19 22 46 19 31 76 51 129 143 89 26 15 60,1 36,5 1.32
GPGHMB22H 6,5 1.92 22 25 52 22 36 83 58 144 160,5 102 29 15 65,5 41,3 1.92
GPGHMB25H 8,5 2.77 25 28 59 25 43 95 68 164 183 118 32 15 70,5 46 2.77
GPGHMB28H 9,5 3.91 28 32 66 28 47 108 75 185 201 131 34 15 74 50,8 3.91
Pdf Article code working load limit (ton) Net weight (lbs) diameter bow (inch) A diameter pin (inch) B
diameter eye (inch) C
 width eye (inch) D
 width inside (inch) E
 length inside (inch) F
 width bow (inch)G
length (inch) H length bolt (inch) I
 width (inch) J
 thickness nut (inch) K diameter hole (inch) L  height (inch) M   width (inch) N   Net weight (LBS)
GPGHMB13H 2 1.04 1/2 5/8 1 11/32 1/2 7/8 2 1 1/4 3 1/2 4 1/32 2 9/32 3/4 19/32 1 7/8 1 1/16 1.04
GPGHMB16H 3,25 1.80 5/8 3/4 1 9/16 5/8 1 1/16 2 17/32 1 11/16 4 11/32 4 13/16 2 15/16 29/32 19/32 2 3/32 1 7/32 1.80
GPGHMB19H 4,75 2.91 3/4 7/8 1 13/16 3/4 1 7/32 3 2 5 3/32 5 5/8 3 1/2 1 1/32 19/32 2 3/8 1 13/32 2.91
GPGHMB22H 6,5 4.23 7/8 1 2 1/16 7/8 1 13/32 3 9/32 2 9/32 5 21/32 6 5/16 4 1/32 1 5/32 19/32 2 9/16 1 5/8 4.23
GPGHMB25H 8,5 6.10 1 1 1/8 2 5/16 31/32 1 11/16 3 3/4 2 11/16 6 15/32 7 7/32 4 21/32 1 1/4 19/32 2 3/4 1 13/16 6.10
GPGHMB28H 9,5 8.62 1 1/8 1 1/4 2 19/32 1 3/32 1 27/32 4 1/4 2 15/16 7 9/32 7 29/32 5 5/32 1 11/32 19/32 2 29/32 1 31/32 8.62

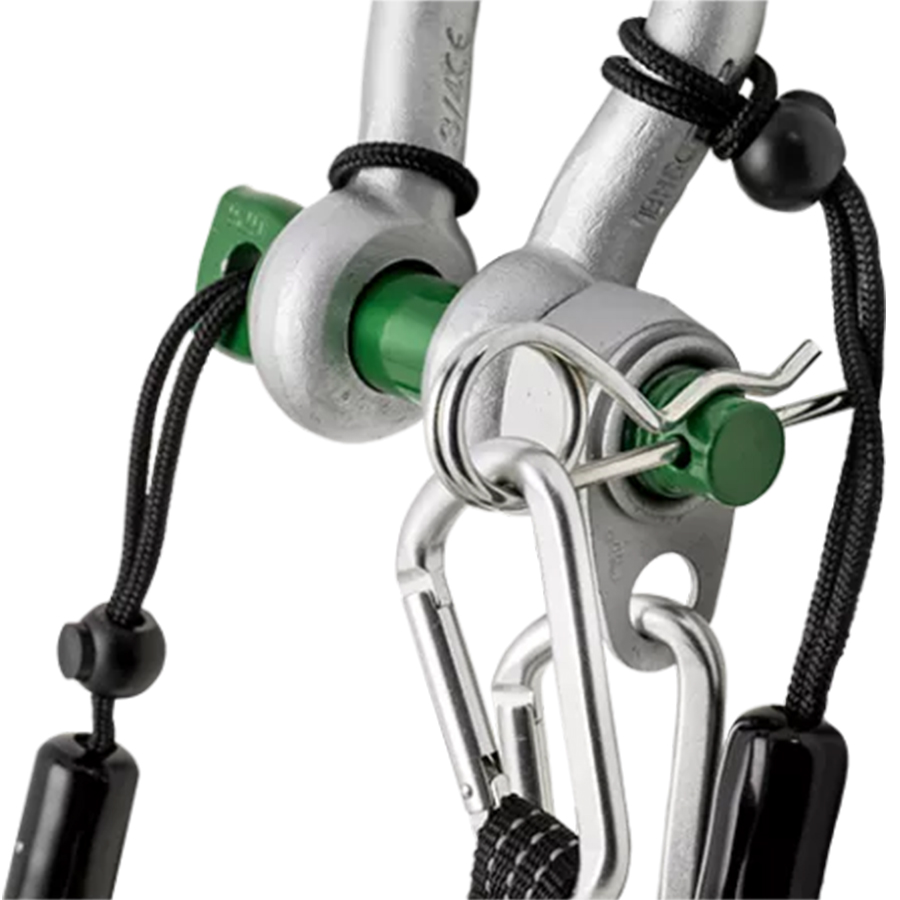

For a long time, the lifting industry has been looking for a solution to prevent the dropping of equipment and components from heights. Dropped objects are a well-known safety hazard in the industry and have led to numerous accidents. Green Pin® now offers a unique solution to this problem: The Green Pin® Catch shackle BN prevents the accidental dropping of shackle bolts, nuts, cotter pins and even complete shackles, thereby preventing injuries or deaths. These innovative shackles have an attachment point on each individual component to connect them to a lanyard. The lanyards can then be securely fastened to something or someone, for example to a tool-belt that the rigger is wearing. Also, ease of use is guaranteed: the disc on the nut that enables tethering rotates independently from the nut itself, thereby not coiling the attached lanyard. The Green Pin® Catch Shackle is supplied without any wiring so every user can choose their preferred method of securing the products. The Green Pin® Catch Shackle BN has been developed in cooperation with DROPS, the non-profit organization that is focused exclusively on dropped object prevention.In addition to the tethering options, the shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization. Of course, the Green Pin® Catch Shackle BN conforms to a wide range of certifications from class societies such as DNV. The Green Pin® Catch Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 up to 9.5 ton.

  • Prevents accidental dropping of shackle components
  • All components can be tethered
  • Reduces number of injuries and deaths
  • For all types of tethering methods
  • Co-developed with DROPS-organization

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
