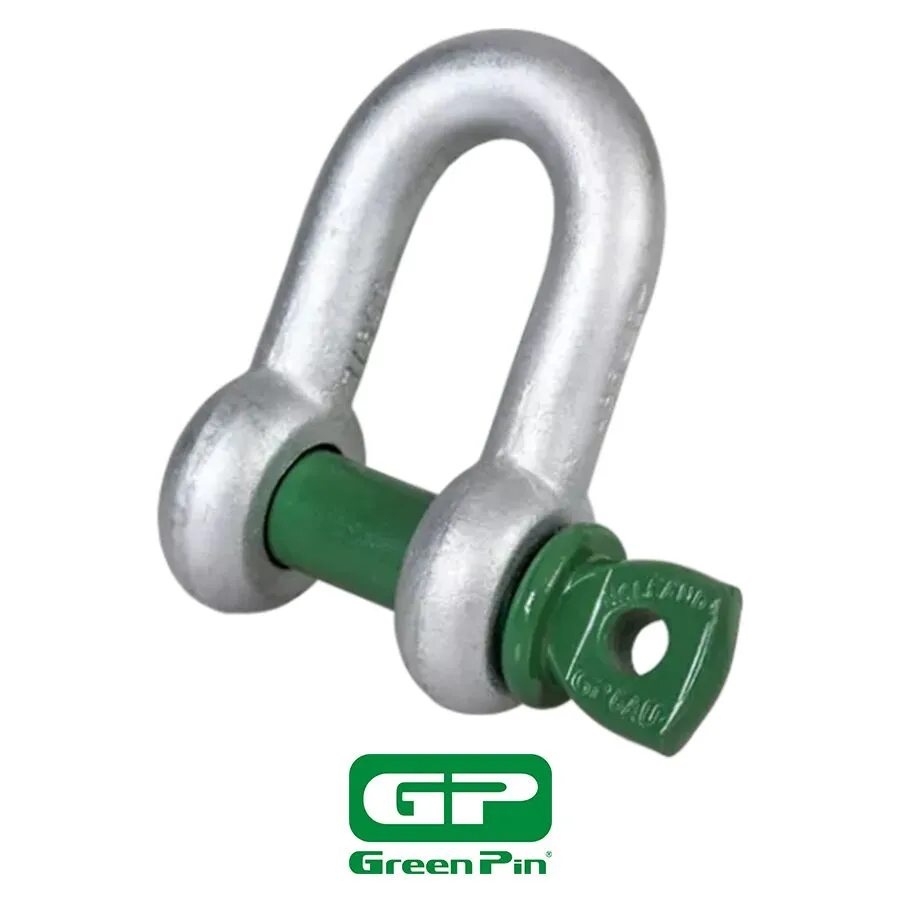

Standard dee shackle with screw collar pin
Productcode
G-4151
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
DNVGL-ST-0378
CE
ABS PDA
ABS MA
Standard
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 2, Grade A, from 2 t and upward these shackles comply with ASME B30.26
| Article code | working load limit (ton) | diameter bow (mm) A  |
diameter pin (mm) B |
diameter eye (mm) C |
width eye (mm) D |
width inside (mm) E |
length inside (mm) F |
length (mm) G |
length bolt (mm) H |
Net weight (KG) | |
 |
GPGDBB05 | 0,33 | 5 | 6 | 12 | 5 | 9,5 | 19 | 33 | 29,5 | 0.02 |
|
GPGDBB06 | 0,5 | 7 | 8 | 16 | 7 | 12 | 22,5 | 41,5 | 38 | 0.04 |
|
GPGDBB08 | 0,75 | 9 | 10 | 20 | 9 | 13,5 | 27 | 51 | 46,5 | 0.09 |
|
GPGDBB10 | 1 | 10 | 11 | 23 | 10 | 17 | 32 | 59 | 54 | 0.12 |
|
GPGDBB11 | 1,5 | 11 | 13 | 25 | 11 | 19 | 37 | 67 | 59,5 | 0.17 |
|
GPGDBB13 | 2 | 13,5 | 16 | 34 | 13 | 22 | 43 | 82 | 73 | 0.32 |
|
GPGDBB16 | 3,25 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 89 | 0.54 |
|
GPGDBB19 | 4,75 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 103 | 0.87 |
|
GPGDBB22 | 6,5 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 119 | 1.34 |
|
GPGDBB25 | 8,5 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 137 | 2.08 |
|
GPGDBB28 | 9,5 | 28 | 32 | 67 | 28 | 47 | 90 | 168 | 153 | 2.77 |
|
GPGDBB32 | 12 | 32 | 35 | 73 | 32 | 51 | 94 | 180 | 170 | 3.72 |
|
GPGDBB35 | 13,5 | 35 | 38 | 79 | 35 | 57 | 115 | 209 | 186 | 5.44 |
|
GPGDBB38 | 17 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 203 | 6.85 |
|
GPGDBB45 | 25 | 45 | 50 | 104 | 45 | 74 | 149 | 271 | 243 | 11.5 |
|
GPGDBB50 | 35 | 50 | 57 | 112 | 50 | 83 | 171 | 306 | 272 | 15.8 |
|
GPGDBB57 | 42,5 | 57 | 65 | 132 | 57 | 95 | 190 | 346 | 310 | 24.6 |
|
GPGDBB65 | 55 | 65 | 70 | 145 | 65 | 105 | 203 | 376 | 344 | 32.7 |
| Article code | diameter bow (inch) A |
diameter pin (inch) B |
diameter eye (inch) C |
width eye (inch) D |
width inside (inch) E |
length inside (inch) F |
length (inch) G |
length bolt (inch) H |
Net weight (LBS) | |
|
GPGDBB05 | 3/16 | 1/4 | 15/32 | 3/16 | 3/8 | 3/4 | 1 5/16 | 1 5/32 | 0.05 |
|
GPGDBB06 | 1/4 | 5/16 | 5/8 | 9/32 | 15/32 | 7/8 | 1 5/8 | 1 1/2 | 0.10 |
|
GPGDBB08 | 5/16 | 3/8 | 25/32 | 11/32 | 17/32 | 1 1/16 | 2 | 1 27/32 | 0.20 |
|
GPGDBB10 | 3/8 | 7/16 | 29/32 | 13/32 | 21/32 | 1 1/4 | 2 5/16 | 2 1/8 | 0.27 |
|
GPGDBB11 | 7/16 | 1/2 | 31/32 | 7/16 | 3/4 | 1 15/32 | 2 5/8 | 2 11/32 | 0.38 |
|
GPGDBB13 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 1 11/16 | 3 7/32 | 2 7/8 | 0.70 |
|
GPGDBB16 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 | 3 13/16 | 3 1/2 | 1.20 |
|
GPGDBB19 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 2 5/16 | 4 13/32 | 4 1/16 | 1.92 |
|
GPGDBB22 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 2 7/8 | 5 9/32 | 4 11/16 | 2.95 |
|
GPGDBB25 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 11/32 | 6 1/16 | 5 13/32 | 4.59 |
|
GPGDBB28 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 3 17/32 | 6 5/8 | 6 1/32 | 6.11 |
|
GPGDBB32 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 3 11/16 | 7 3/32 | 6 11/16 | 8.21 |
|
GPGDBB35 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 2 1/4 | 4 17/32 | 8 7/32 | 7 5/16 | 12.0 |
|
GPGDBB38 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 | 9 1/16 | 8 | 15.1 |
|
GPGDBB45 | 1 3/4 | 2 | 4 3/32 | 1 25/32 | 2 29/32 | 5 7/8 | 10 21/32 | 9 9/16 | 25.2 |
|
GPGDBB50 | 2 | 2 1/4 | 4 13/32 | 1 31/32 | 3 9/32 | 6 23/32 | 12 1/16 | 10 23/32 | 34.8 |
|
GPGDBB57 | 2 1/4 | 2 9/16 | 5 3/16 | 2 1/4 | 3 3/4 | 7 15/32 | 13 5/8 | 12 7/32 | 54.3 |
|
GPGDBB65 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 8 | 14 13/16 | 13 17/32 | 72.0 |
The Green Pin® Dee Shackle SC is a dee shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Due to the galvanization of the shackle its long-term durability is assured. Furthermore, the shackle’s design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® Dee Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Dee Shackle SC is suitable for one-leg lifting systems only and is available in a range with a working load limit from 0.33 up to 55 ton.
