Dee shackle with square sunken hole screw pin (flush pin)
Productcode
G-4159
Material
bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor
MBL equals 6 x WLL
Finish
hot dipped galvanized
Certification
2.1
2.2
3.1
MTCa
CE/em>
Standard
EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Grade A
Note
key for unscrewing the pin must be ordered separately
| Article code | working load limit (ton) | Net weight (kg) | diameter bow (mm) A  |
diameter pin (mm) B |
diameter eye (mm) C |
width eye (mm) D |
width inside (mm) E |
length inside (mm) F |
length (mm) G |
length bolt (mm) H |
size hole (mm) I |
Net weight (KG) | |
| GPGDVV13 | 2 | 0.29 | 13,5 | 16 | 34 | 13 | 22 | 43 | 82 | 51 | 11 | 0.29 | |
| GPGDVV16 | 3,25 | 0.60 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 63 | 11 | 0.60 | |
| GPGDVV19 | 4,75 | 0.98 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 74 | 11 | 0.98 | |
| GPGDVV22 | 6,5 | 1.26 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 85 | 13 | 1.26 | |
| GPGDVV25 | 8,5 | 2.14 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 99 | 13 | 2.14 | |
| GPGDVV28 | 9,5 | 2.58 | 28 | 32 | 67 | 28 | 47 | 90 | 168 | 110 | 17 | 2.58 | |
| GPGDVV32 | 12 | 3.49 | 32 | 35 | 73 | 32 | 51 | 94 | 180 | 122 | 17 | 3.49 | |
| GPGDVV38 | 17 | 6.22 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 145 | 17 | 6.22 |
| Article code | Net weight (LBS) | diameter bow (inch) A |
diameter pin (inch) B |
diameter eye (inch) C |
width eye (inch) D |
width inside (inch) E |
length inside (inch) F |
length (inch) G |
length bolt (inch) H |
size hole (inch) I |
Net weight (LBS) | |
| GPGDVV13 | 0.65 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 1 11/16 | 3 7/32 | 2 | 7/16 | 0.65 | |
| GPGDVV16 | 1.33 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 | 3 13/16 | 2 15/32 | 7/16 | 1.33 | |
| GPGDVV19 | 2.15 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 2 5/16 | 4 13/32 | 2 29/32 | 7/16 | 2.15 | |
| GPGDVV22 | 2.77 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 2 7/8 | 5 9/32 | 3 11/32 | 1/2 | 2.77 | |
| GPGDVV25 | 4.72 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 11/32 | 6 1/16 | 3 29/32 | 1/2 | 4.72 | |
| GPGDVV28 | 5.68 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 3 17/32 | 6 9/16 | 4 11/32 | 21/32 | 5.68 | |
| GPGDVV32 | 7.69 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 3 11/16 | 7 3/32 | 4 13/16 | 21/32 | 7.69 | |
| GPGDVV38 | 13.7 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 | 9 1/16 | 5 23/32 | 21/32 | 13.7 |

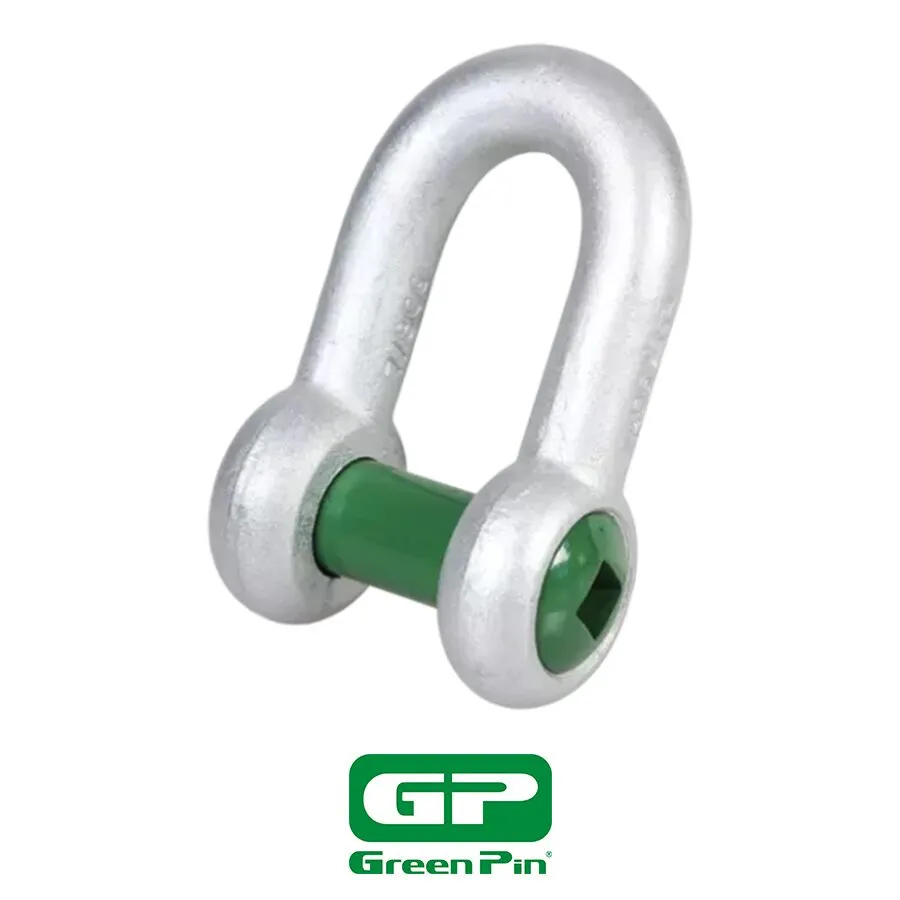

The Green Pin® Fishing Dee Shackle FP is a dee shackle with a square sunken hole screw pin (flush pin). The Green Pin® Fishing Dee Shackle FP contains no protruding parts so it does not damage or get caught in fishing nets. Another important feature is that the chamber in the shackle eye hides the screw thread and reduces wear of rope. Galvanization of the bow shackle ensures its long-term durability. The Green Pin® Fishing Dee Shackle FP is suitable for one-leg lifting systems only and can be assembled with the help of the Green Pin® Sunken Hole Key. The shackle is available in a range with a working load limit from 2 up to 17 ton.
