Green Pin® Heavy Duty Bow Shackle BN

Green Pin® Heavy Duty Bow Shackle BN

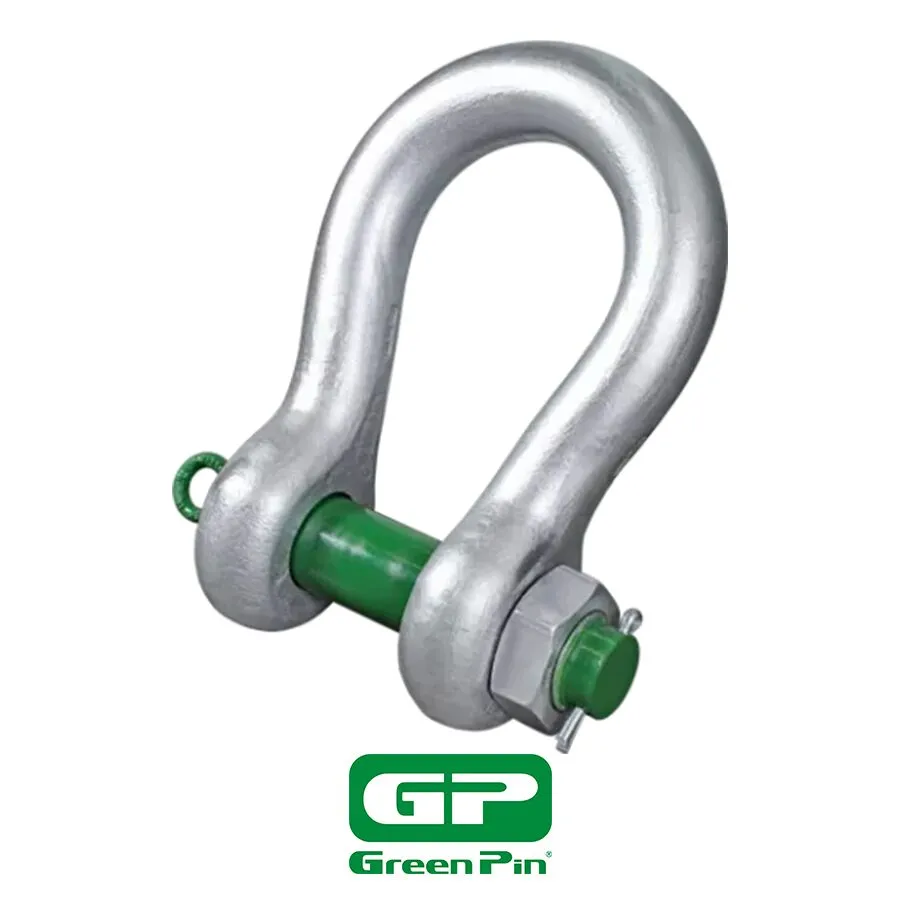

High load capacity bow shackle with safety bolt

Product details

Productcode
P-6036
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
shackle bow painted silver, pin painted green
Certification
2.1
2.2
3.1
MTCa
MTCb
LROS
MPIa
USa
CE


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Pdf Article code working load limit (ton) Weight shackle pin (kg) diameter bow   (mm) A diameter pin (mm) B
 diameter eye (mm) C
 width eye (mm) D
 width inside (mm) E
 length inside (mm) F
 width bow  (mm) G
 length (mm) H length bolt (mm) I width  (mm)
J 		thickness nut (mm)
K  		Net weight (KG)
HDGPHM0120 120 28,12 95 95 204 95 147 400 238 644 453 428 50 116
HDGPHM0150 150 39,15 105 108 235 105 169 410 275 686 496 485 50 161
HDGPHM0200 200 69,15 120 130 270 120 179 513 290 833 564 530 71 252
HDGPHM0250 250 85,5 130 140 284 130 205 554 305 896 614 565 71 317
HDGPHM0300 300 102 140 150 308 140 205 618 305 987 644 585 81 386
HDGPHM0400 400 126,66 170 175 376 164 231 669 325 1115 698 665 70 620
HDGPHM0500 500 147,51 180 185 398 164 256 719 350 1191 728 710 70 720
HDGPHM0600 600 204,43 200 205 444 189 282 719 375 1244 810 775 70 975
HDGPHM0700 700 241,66 210 215 454 204 308 718 400 1263 870 820 70 980
HDGPHM0800 800 253,47 210 220 464 204 308 718 400 1270 870 820 70 1100
HDGPHM0900 900 292,09 220 230 485 215 328 718 420 1296 920 860 70 1280
HDGPHM1000 1000 325,46 240 240 515 215 349 718 420 1336 940 900 70 1460
HDGPHM1250 1250 449,98 260 270 585 230 369 768 450 1456 1025 970 70 1990
HDGPHM1500 1500 519,27 280 290 625 230 369 818 450 1556 1025 1010 70 2400
Pdf Article code working load limit (ton) Weight shackle pin (LB) diameter bow   (inch) A diameter pin (inch) B
 diameter eye (inch) C
 width eye (inch) D
 width inside (inch) E
 length inside (inch) F
 width bow  (inch) G
 length (inch) H length bolt (inch) I width  (inch)
J 		thickness nut (inch)
K  		Net weight (LBS)
HDGPHM0120 120 61,99 3 3/4 3 3/4 8 1/32 3 3/4 5 25/32 15 3/4 9 3/8 25 11/32 17 27/32 16 27/32 1 31/32 256
HDGPHM0150 150 86,31 4 1/8 4 1/4 9 1/4 4 1/8 6 21/32 16 5/32 10 13/16 27 19 17/32 19 3/32 1 31/32 355
HDGPHM0200 200 152,45 4 23/32 5 1/8 10 5/8 4 23/32 7 1/16 20 3/16 11 13/32 32 25/32 22 7/32 20 7/8 2 25/32 556
HDGPHM0250 250 188,5 5 1/8 5 1/2 11 3/16 5 1/8 8 1/16 21 13/16 12 35 9/32 24 3/16 22 1/4 2 25/32 699
HDGPHM0300 300 224,87 5 1/2 5 29/32 12 1/8 5 1/2 8 1/16 24 11/32 12 38 27/32 25 11/32 23 1/32 3 3/16 851
HDGPHM0400 400 279,25 6 11/16 6 7/8 14 13/16 6 15/32 9 3/32 26 11/32 12 25/32 43 29/32 27 15/16 26 3/16 2 3/4 1367
HDGPHM0500 500 325,2 7 3/32 7 9/32 15 21/32 6 15/32 10 3/32 28 5/16 13 25/32 46 7/8 28 21/32 27 15/16 2 3/4 1588
HDGPHM0600 600 450,69 7 7/8 8 1/16 17 15/32 7 7/16 11 3/32 28 5/16 14 3/4 48 31/32 31 7/8 30 1/2 2 3/4 2150
HDGPHM0700 700 532,77 8 9/32 8 15/32 17 7/8 8 1/32 12 1/8 28 9/32 15 3/4 49 23/32 34 1/4 32 9/32 2 3/4 2161
HDGPHM0800 800 558,81 8 9/32 8 21/32 18 9/32 8 1/32 12 1/8 28 9/32 15 3/4 50 34 1/4 32 9/32 2 3/4 2426
HDGPHM0900 900 643,95 8 21/32 9 1/16 19 3/32 8 15/32 12 19/32 28 9/32 16 17/32 51 1/32 36 7/32 33 27/32 2 3/4 2822
HDGPHM1000 1000 717,51 9 7/16 9 7/16 20 9/32 8 15/32 13 3/4 28 9/32 16 17/32 52 19/32 37 35 7/16 2 3/4 3219
HDGPHM1250 1250 992,03 10 1/4 10 5/8 23 1/32 9 1/16 14 17/32 30 1/4 17 23/32 57 5/16 40 11/32 38 3/16 2 3/4 4388
HDGPHM1500 1500 1144,79 11 1/32 11 13/32 24 19/32 9 1/16 14 17/32 32 7/32 17 23/32 61 1/4 40 11/32 39 3/4 2 3/4 5292

The Green Pin® Heavy Duty Bow Shackle BN is a high load capacity bow shackle with a safety bolt. The Green Pin® Heavy Duty Bow Shackle BN is a good choice for heavy lifting projects and is suitable for both one-leg en multi-leg systems. When rotation of the pin is a risk, this shackle’s safety bolt prevents accidental unscrewing. Another important feature of the product is that the Green Pin® Heavy Duty Bow Shackle BN conforms to a wide range of certifications. For example, Heavy Duty Shackles of 150T and higher include a Lloyd’s proofload test certificate. The Green Pin® Heavy Duty Bow Shackle BN is available in a range with a working load limit from 120 up to 1500 ton.

  • Good choice for heavy lifting projects
  • Suitable for both one-leg and multi-leg systems
  • Superior stock availability of 99%
  • Conforms to wide range of certifications
  • Safety bolt: perfect for when rotation of the pin is a risk

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
