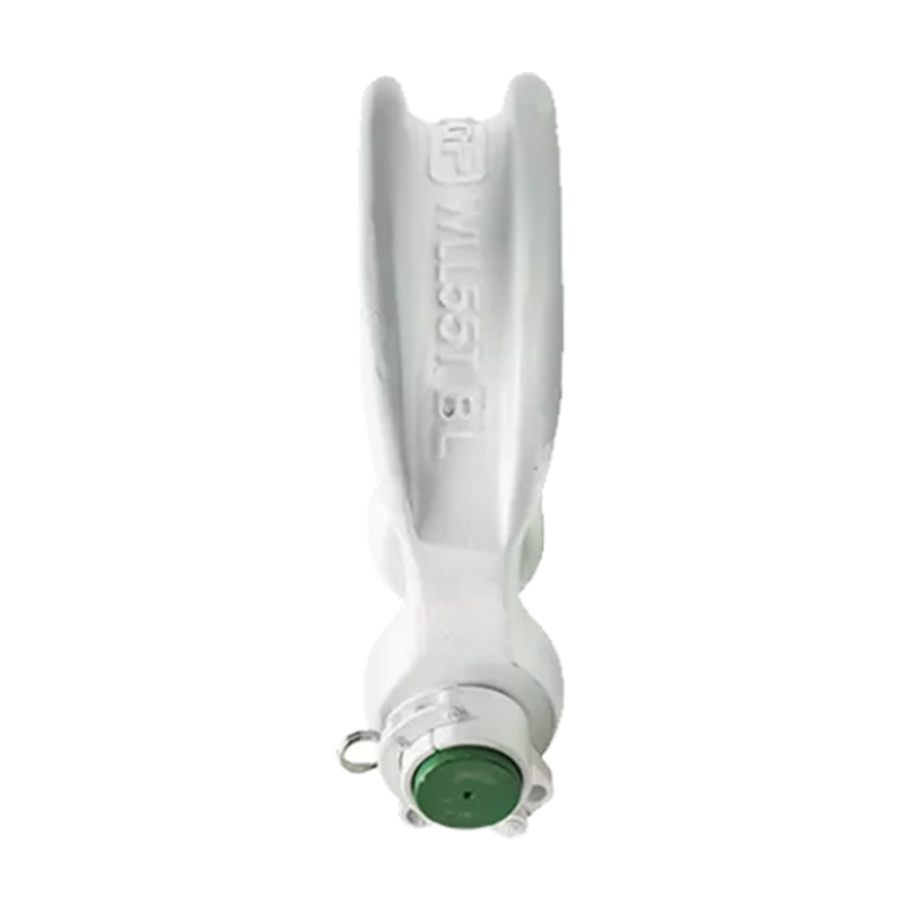

Release ROV Sling shackle (grade 8) with locking clamp
Productcode
P-6065
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
shackle bow painted white, pin painted green
Temp. range
-20°C up to +200°C
Certification
2.1
2.2
3.1
MTCb
| Article code | working load limit (ton) | Net weight (kg) | diameter body (mm) A  |
diameter pin (mm) B |
diameter eye (mm) C |
width eye (mm) D |
width inside (mm) E |
length inside (mm) F |
width bow (mm)G |
length (mm) H |
length bolt (mm) I |
width (mm) J |
width locking clamp (mm) K |
bearing surface (mm) L |
Net weight (KG) | |
 |
SLGPF0012ROVRLLC | 12,5 | 4.27 | 28 | 28 | 61 | 25 | 44 | 121 | 82 | 197 | 143 | 146 | 31 | 54 | 4.27 |
|
SLGPF0018ROVRLLC | 18 | 6.85 | 35 | 35 | 69 | 30 | 54 | 148 | 102 | 239 | 184 | 180 | 31 | 64 | 6.85 |
|
SLGPF0030ROVRLLC | 30 | 12.5 | 40 | 42 | 90 | 35 | 69 | 165 | 126 | 279 | 210 | 200 | 40 | 79 | 12.5 |
|
SLGPF0040ROVRLLC | 40 | 20.3 | 55 | 51 | 109 | 45 | 84 | 199 | 140 | 331 | 256 | 235 | 40 | 97 | 20.3 |
|
SLGPF0055ROVRLLC | 55 | 30.4 | 60 | 57 | 115 | 55 | 90 | 240 | 160 | 389 | 289 | 270 | 40 | 100 | 30.4 |
|
SLGPF0075ROVRLLC | 75 | 45.0 | 68 | 70 | 125 | 54 | 110 | 290 | 185 | 473 | 317 | 317 | 40 | 120 | 45.0 |
|
SLGPF0125ROVRLLC | 125 | 92.0 | 85 | 80 | 154 | 85 | 137 | 366 | 220 | 583 | 413 | 390 | 40 | 150 | 92.0 |
|
SLGPF0150ROVRLLC | 150 | 140 | 94 | 95 | 179 | 89 | 147 | 391 | 253 | 645 | 445 | 434 | 55 | 170 | 140 |
|
SLGPF0200ROVRLLC | 200 | 205 | 110 | 105 | 199 | 100 | 158 | 481 | 280 | 759 | 480 | 482 | 55 | 205 | 205 |
|
SLGPF0250ROVRLLC | 250 | 264 | 126 | 120 | 227 | 110 | 179 | 542 | 300 | 859 | 523 | 530 | 55 | 240 | 264 |
|
SLGPF0300ROVRLLC | 300 | 360 | 135 | 134 | 245 | 122 | 195 | 601 | 350 | 947 | 563 | 620 | 55 | 265 | 360 |
| Article code | working load limit (ton) | Net weight (lbs) | diameter body (inch) A |
diameter pin (inch) B |
diameter eye (inch) C |
width eye (inch) D |
width inside (inch) E |
length inside (inch) F |
width bow (inch)G |
length (inch) H |
length bolt (inch) I |
width (inch) J |
width locking clamp (inch) K |
bearing surface (inch) L |
Net weight (LBS) | |
|
SLGPF0012ROVRLLC | 12,5 | 9.42 | 1 1/8 | 1 1/8 | 2 3/8 | 1 | 1 3/4 | 4 3/4 | 3 1/4 | 7 3/4 | 5 5/8 | 5 3/4 | 1 7/32 | 2 1/8 | 9.42 |
|
SLGPF0018ROVRLLC | 18 | 15.1 | 1 3/8 | 1 3/8 | 2 23/32 | 1 3/16 | 2 1/8 | 5 13/16 | 4 1/32 | 9 13/32 | 7 1/4 | 7 3/32 | 1 7/32 | 2 17/32 | 15.1 |
|
SLGPF0030ROVRLLC | 30 | 27.5 | 1 9/16 | 1 21/32 | 3 17/32 | 1 3/8 | 2 23/32 | 6 1/2 | 4 31/32 | 10 31/32 | 8 9/32 | 7 7/8 | 1 9/16 | 3 1/8 | 27.5 |
|
SLGPF0040ROVRLLC | 40 | 44.7 | 2 5/32 | 2 | 4 9/32 | 1 25/32 | 3 5/16 | 7 27/32 | 5 1/2 | 13 1/32 | 10 3/32 | 9 1/4 | 1 9/16 | 3 13/16 | 44.7 |
|
SLGPF0055ROVRLLC | 55 | 67.1 | 2 3/8 | 2 1/4 | 4 17/32 | 2 5/32 | 3 17/32 | 9 7/16 | 6 5/16 | 15 5/16 | 11 3/8 | 10 5/8 | 1 9/16 | 3 15/16 | 67.1 |
|
SLGPF0075ROVRLLC | 75 | 99.2 | 2 11/16 | 2 3/4 | 4 29/32 | 2 1/8 | 4 11/32 | 11 13/32 | 7 9/32 | 18 5/8 | 12 15/32 | 12 15/32 | 1 9/16 | 4 23/32 | 99.2 |
|
SLGPF0125ROVRLLC | 125 | 203 | 3 11/32 | 3 5/32 | 6 1/16 | 3 11/32 | 5 13/32 | 14 13/32 | 8 21/32 | 22 15/16 | 16 1/4 | 15 11/32 | 1 9/16 | 5 29/32 | 203 |
|
SLGPF0150ROVRLLC | 150 | 309 | 3 11/16 | 3 3/4 | 7 1/16 | 3 1/2 | 5 25/32 | 15 13/32 | 9 31/32 | 25 13/32 | 17 17/32 | 17 3/32 | 2 5/32 | 6 11/16 | 309 |
|
SLGPF0200ROVRLLC | 200 | 452 | 4 11/32 | 4 1/8 | 7 27/32 | 3 15/16 | 6 7/32 | 18 15/16 | 11 1/32 | 29 7/8 | 18 29/32 | 18 31/32 | 2 5/32 | 8 1/16 | 452 |
|
SLGPF0250ROVRLLC | 250 | 582 | 4 31/32 | 4 23/32 | 8 15/16 | 4 11/32 | 7 1/16 | 21 11/32 | 11 13/16 | 33 13/16 | 20 19/32 | 20 7/8 | 2 5/32 | 9 7/16 | 582 |
|
SLGPF0300ROVRLLC | 300 | 794 | 5 5/16 | 5 9/32 | 9 21/32 | 4 13/16 | 7 11/16 | 23 21/32 | 13 25/32 | 37 9/32 | 22 5/32 | 24 13/32 | 2 5/32 | 10 7/16 | 794 |
The Green Pin® Locking Clamp ROV Sling Shackle is perfect for release operations with remotely operated vehicles (ROV). The grade 8 shackle has been specially developed for sub-sea applications and is easy to handle for the ROV pilot.The Locking Clamp ROV Sling Shackle is an excellent choice due to the shape of the shackle crown. Compared to the standard Green Pin® Shackles, Sling Shackles have an increased bow radius to improve your sling’s resistance to wear and tear and enable you to use a lighter rope to lift the same heavy load. This means that by using the Green Pin® Locking Clamp ROV Sling Shackle you can save on rope costs.The ROV Sling Shackle has a powerful locking system that ensures that the load will not be released before you want it to. The white coating optimizes visibility underwater and ensures its long-term durability. The Green Pin® Locking Clamp ROV Sling Shackle is available in a range with a working load limit from 12.5 up to 300 tons.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
