Green Pin® Mooring Bow Shackle NS9415 BN

Green Pin® Mooring Bow Shackle NS9415 BN

Grade 8 mooring bow shackle with safety bolt and sunken bolt head
Productcode
G-4863
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Finish
hot dipped galvanized
Temp. range
-20°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
CE
DNV NS 9415
Standard
NS 9415 (NYTEK)
Note
*The shackles are standard delivered without cotter pin. A synthetic or Stainless-Steel cotter pin can be ordered separately


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Pdf Article code minimum breaking load (ton) diameter bow (mm) A diameter pin (mm) B
diameter eye (mm) C
 width eye (mm) D
 width inside (mm) E
 length inside (mm) F
 width bow (mm) G
 		 length (mm) H length bolt (mm) I
 width (mm) J
 thickness nut (mm) K Net weight (KG)
AMGHMB19 30 19 22 48 19 44 100 58 154 125 96 19 1.34
AMGHMB22 40 22 25 54 22 52 125 68 187 142 112 22 2.08
AMGHMB28 60 28 32 66 28 62 150 89 227 178 145 27 4.07
AMGHMB32 90 32 35 76 32 82 170 98 258 207 162 30 5.95
AMGHMB42 110 42 45 90 42 112 200 150 310 261 234 25 14.7
AMGHMB45 150 45 50 105 45 125 225 175 348 288 265 23 16.7
Pdf Article code minimum breaking load (ton) diameter bow (inch) A diameter pin (inch) B
diameter eye (inch) C
 width eye (inch) D
 width inside (inch) E
 length inside (inch) F
 width bow (inch) G
 		 length (inch) H length bolt (inch) I
 width (inch) J
 thickness nut (inch) K Net weight (LBS)
AMGHMB19 30 3/4 7/8 1 7/8 3/4 1 23/32 3 15/16 2 9/32 6 1/16 4 29/32 3 25/32 3/4 2.96
AMGHMB22 40 7/8 1 2 1/8 7/8 2 1/16 4 29/32 2 11/16 7 3/8 5 19/32 4 13/32 7/8 4.59
AMGHMB28 60 1 1/8 1 1/4 2 19/32 1 1/8 2 7/16 5 29/32 3 1/2 8 15/16 7 5 23/32 1 1/16 8.96
AMGHMB32 90 1 1/4 1 3/8 3 1 1/4 3 7/32 6 11/16 3 27/32 10 5/32 8 5/32 6 3/8 1 3/16 13.1
AMGHMB42 110 1 5/8 1 3/4 3 17/32 1 5/8 4 13/32 7 7/8 5 29/32 12 7/32 10 9/32 9 7/32 31/32 32.5
AMGHMB45 150 1 3/4 2 4 1/8 1 3/4 4 29/32 8 27/32 6 7/8 13 11/16 11 11/32 10 7/16 29/32 36.9

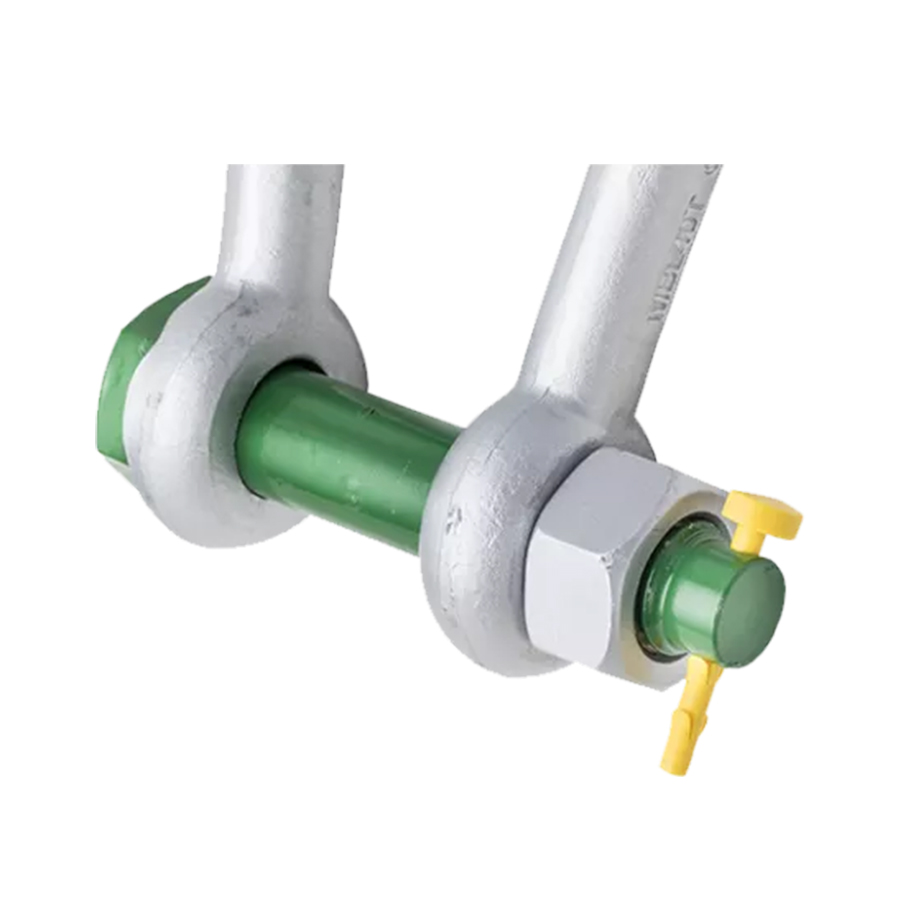

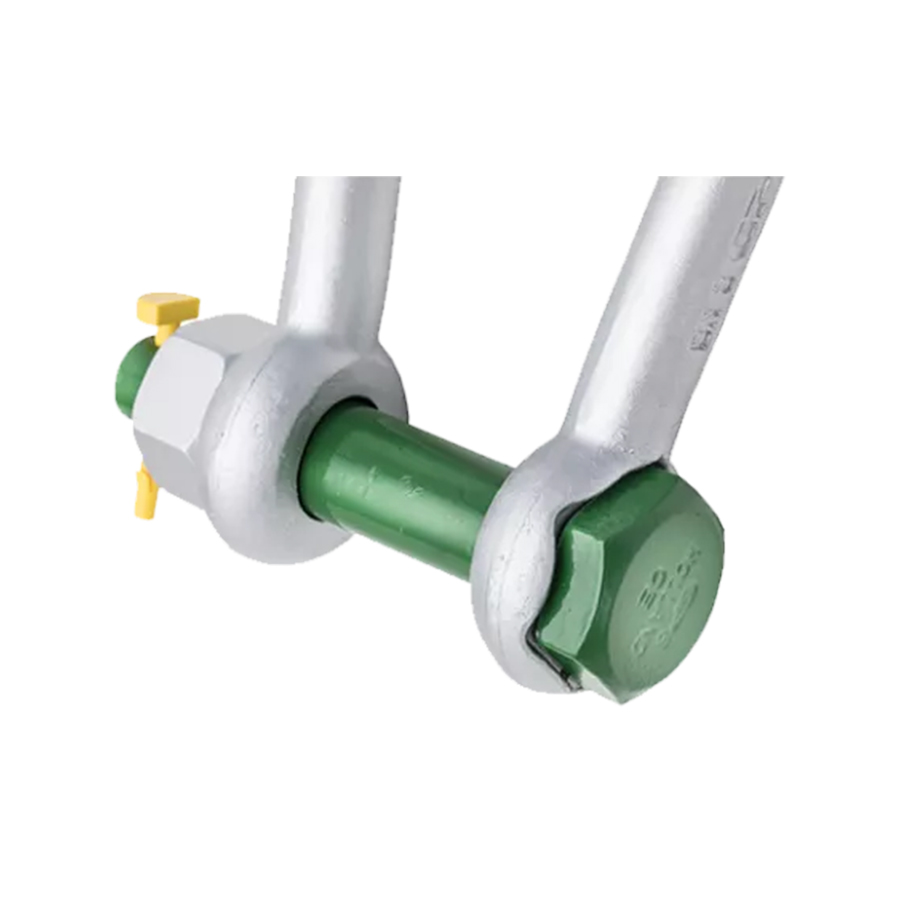

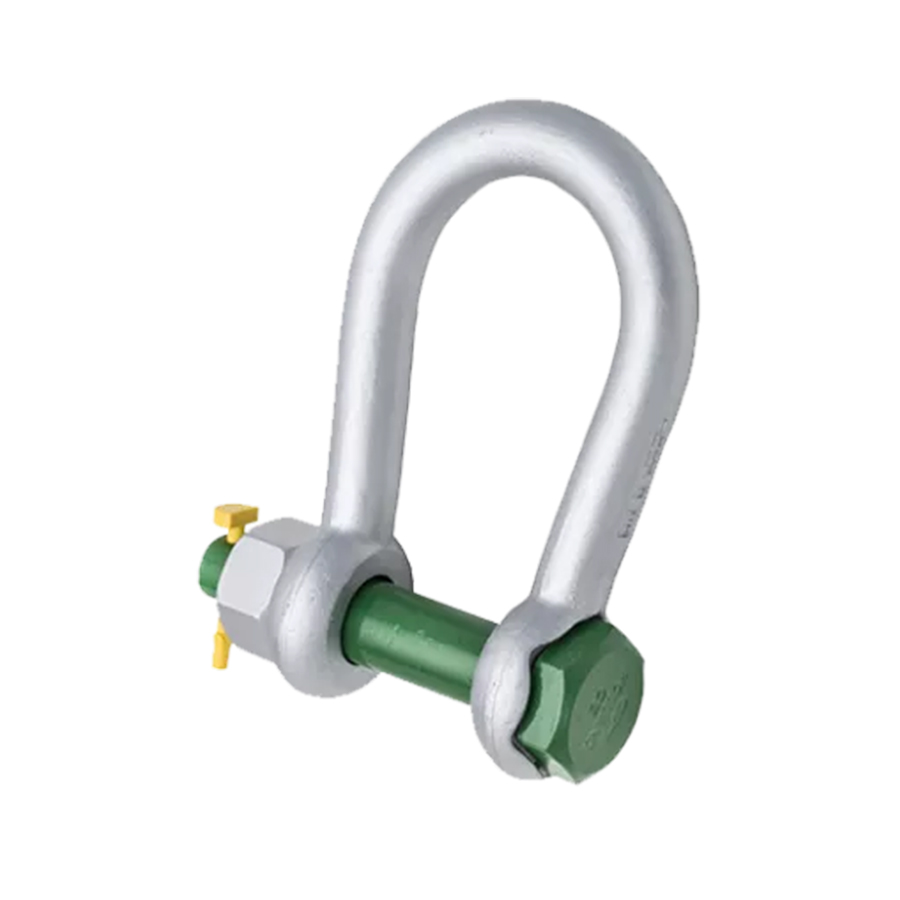

The Green Pin® Mooring Bow Shackle NS9415 BN is a bow shackle with a safety bolt and a sunken bolt head that has been designed for mooring applications. The shackle offers a double safety (safety bolt and synthetic cotter pin*) which prevents accidental unscrewing of the pin. The sunken bolt prevents rotation of the bolt, making it much easier to assemble. It also minimizes the risk of damage to the cage net or mooring line. The wider shackle mouth enables you to connect the shackle to a mooring or connecting plate which is wider than usual. The shackle offers best-in-class quality, guaranteeing absolute security for your mooring system. The hot dipped galvanization ensures long-term durability even under severe environmental conditions, as required by the NS 9415 standard and in compliance with NYTEK-regulation (as certified by DNV). The Mooring Bow Shackle NS9415 BN is suitable for both one-leg and multi-leg systems and is available in a range of minimum breaking load from 30 up to 150 t.

  • Ideal for aquaculture: DNV-certified to NS 9415
  • Fast and easy (dis)assembly due to the sunken bolt
  • Wide shackle mouth: perfect for wide connecting points
  • Hot dip galvanization assures long-term durability
  • Part of Green Pin® aquaculture system

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
