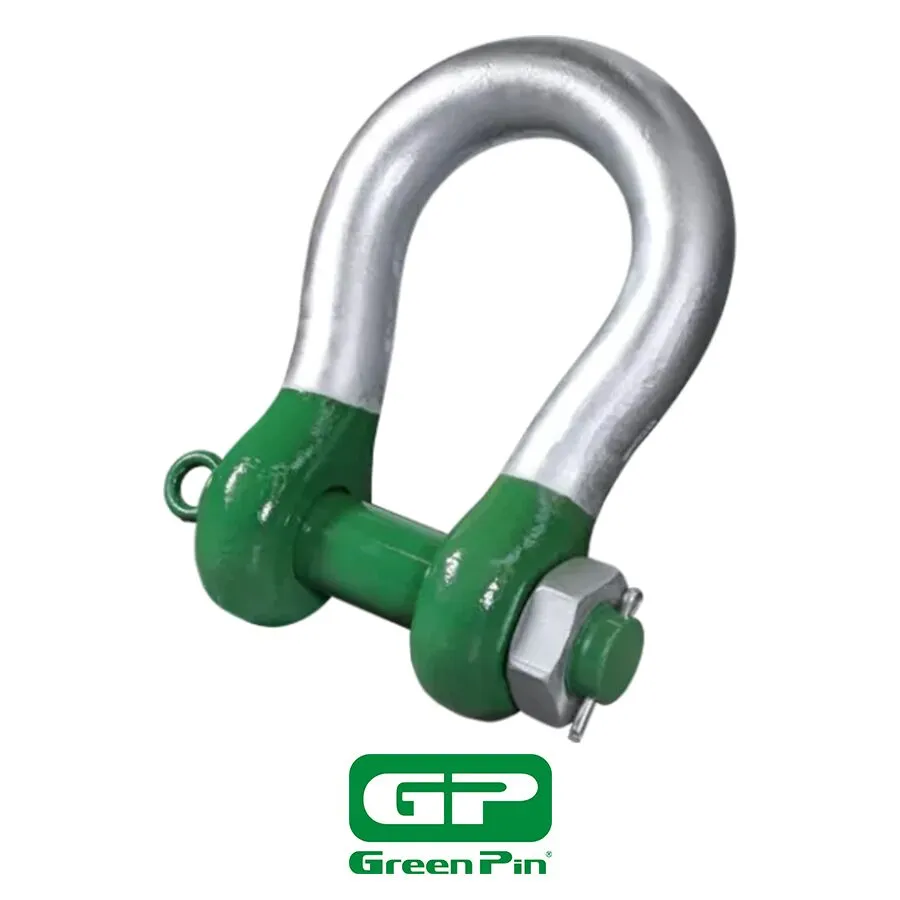

Green Pin Polar® Heavy Duty Bow Shackle BN

Green Pin Polar® Heavy Duty Bow Shackle BN

High load capacity, grade 8 bow shackle with safety bolt for use under low temperatures

Product details

Productcode
P-6031
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
shackle bow painted silver, pin painted green (120 tons shackle is hot dipped galvanized)
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
MTCb
LROS
MPIa
USa
CE


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Pdf Article code working load limit (ton) Weight shackle pin (kg) diameter bow (mm)
A 		diameter pin (mm)
B 		diameter eye (mm)
C
 width eye (mm)
D
 width inside (mm)
E
 length inside (mm)
F  		width bow (mm)
G
 length (mm)
H 		length bolt (mm)
I 		width  (mm)
J  		thickness nut  (mm)
K 		Net weight (KG)
HDPOHM0120 120 28,12 95 95 204 95 147 400 238 644 453 428 50 110
HDPOHM0150 150 39,15 105 108 235 105 169 410 275 686 496 485 50 160
HDPOHM0200 200 69,15 120 130 270 120 179 513 290 833 564 530 71 235
HDPOHM0250 250 85,5 130 140 284 130 205 554 305 896 614 565 71 285
HDPOHM0300 300 102 140 150 308 140 205 618 305 987 644 585 81 368
HDPOHM0400 400 126,66 170 175 376 164 231 668 325 1114 690 665 70 560
HDPOHM0500 500 147,51 180 185 398 164 256 718 350 1190 720 710 70 716
HDPOHM0600 600 204,43 200 205 444 189 282 718 375 1243 810 775 70 940
HDPOHM0700 700 241,66 210 215 454 204 308 718 400 1263 870 820 70 980
HDPOHM0800 800 253,47 210 220 464 204 308 718 400 1270 870 820 70 1100
HDPOHM0900 900 292,09 220 230 485 215 328 718 420 1296 920 860 70 1280
HDPOHM1000 1000 325,46 240 240 515 215 349 718 420 1336 940 900 70 1460
HDPOHM1250 1250 449,98 260 270 585 230 369 768 450 1456 1025 970 70 1990
HDPOHM1500 1500 519,27 280 290 625 230 369 818 450 1556 1025 1010 70 2400
Pdf Article code Weight shackle pin (LB) diameter bow (inch)
A 		diameter pin (inch)
B 		diameter eye (inch)
C
 width eye (inch)
D
 width inside (inch)
E
 length inside (inch)
F  		width bow (inch)
G
 length (inch)
H 		length bolt (inch)
I 		width  (inch)
J  		thickness nut  (inch)
K 		Net weight (LBS)
HDPOHM0120 61,99 3 3/4 3 3/4 8 1/32 3 3/4 5 25/32 15 3/4 9 3/8 25 11/32 17 27/32 16 27/32 1 31/32 243
HDPOHM0150 86,31 4 1/8 4 1/4 9 1/4 4 1/8 6 21/32 16 5/32 10 13/16 27 19 17/32 19 3/32 1 31/32 353
HDPOHM0200 152,45 4 23/32 5 1/8 10 5/8 4 23/32 7 1/16 20 3/16 11 13/32 32 25/32 22 7/32 20 7/8 2 25/32 518
HDPOHM0250 188,5 5 1/8 5 1/2 11 3/16 5 1/8 8 1/16 21 13/16 12 35 9/32 24 3/16 22 1/4 2 25/32 628
HDPOHM0300 224,87 5 1/2 5 29/32 12 1/8 5 1/2 8 1/16 24 11/32 12 38 27/32 25 11/32 23 1/32 3 3/16 811
HDPOHM0400 279,25 6 11/16 6 7/8 14 13/16 6 15/32 9 3/32 26 5/16 12 25/32 43 27/32 27 5/32 26 3/16 2 3/4 1235
HDPOHM0500 325,2 7 3/32 7 9/32 15 21/32 6 15/32 10 3/32 28 9/32 13 25/32 46 27/32 28 11/32 27 15/16 2 3/4 1579
HDPOHM0600 450,69 7 7/8 8 1/16 17 15/32 7 7/16 11 3/32 28 9/32 14 3/4 48 15/16 31 7/8 30 1/2 2 3/4 2073
HDPOHM0700 532,77 8 9/32 8 15/32 17 7/8 8 1/32 12 1/8 28 9/32 15 3/4 49 23/32 34 1/4 32 9/32 2 3/4 2161
HDPOHM0800 558,81 8 9/32 8 21/32 18 9/32 8 1/32 12 1/8 28 9/32 15 3/4 50 34 1/4 32 9/32 2 3/4 2426
HDPOHM0900 643,95 8 21/32 9 1/16 19 3/32 8 15/32 12 29/32 28 9/32 16 17/32 51 1/32 36 7/32 33 27/32 2 3/4 2822
HDPOHM1000 717,51 9 7/16 9 7/16 20 9/32 8 15/32 13 3/4 28 9/32 16 17/32 52 19/32 37 35 7/16 2 3/4 3219
HDPOHM1250 992,03 10 1/4 10 5/8 23 1/32 9 1/16 14 17/32 30 1/4 17 23/32 57 5/16 40 11/32 38 3/16 2 3/4 4388
HDPOHM1500 1144,79 11 1/32 11 13/32 24 19/32 9 1/16 14 17/32 32 7/32 17 23/32 61 1/4 40 11/32 39 3/4 2 3/4 5292

The Green Pin Polar® Heavy Duty Shackle BN is a high load capacity bow shackle with a safety bolt that has been optimized for use in low temperatures. The shackle can be used in extreme climatic conditions, down to -40°C (-40°F). The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Of course, the Green Pin Polar® Heavy Duty Shackle BN conforms to a wide range of certifications. The Green Pin Polar® Heavy Duty Shackle BN is suitable for both one-leg systems and multi-leg systems and is available with a working load limit of 120t or 1500t.

  • Perfect for use in low-temperature situations (down to -40 °C / -40 °F)
  • Good choice for heavy lifting projects
  • Conforms to wide range of certifications
  • Suitable for both one-leg and multi-leg systems

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
