Green Pin® Spring Release ROV Shackle

Release ROV shackle (grade 8) with spring

Product details

Productcode
P-5367
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
shackle bow painted white, pin painted green
Temp. range
-40°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
LROS
CE
Note
for in-line use only.This shackle is assembled with wire rope slings and a monkey’s fist.For size starting from WLL 42.5 up to and including 150 t a special compression tool (sold separately) is required to assemble the shackle.

EMAIL PAGE

WARNINGS & CAUTIONS

Pdf	Article code	working load limit (ton)	Weight shackle pin (kg)	Net weight (kg)	diameter bow (mm) A	diameter pin (mm) B	diameter eye (mm) C	width eye (mm) D	width inside (mm) E	length inside (mm) F	width bow (mm) G	length (mm) H	length bolt (mm) I	width (mm) J	Net weight (KG)
	POGHMB32ROVSRL	12	2,26	5.24	32	35	72	32	51	115	83	201	291	147	5.24
	POGHMB35ROVSRL	13,5	2,54	7.00	35	38	80	35	57	133	92	227	301	162	7
	POGHMB38ROVSRL	17	3,86	9.25	38	42	88	38	60	146	99	249	360	175	9.25
	POGHMB45ROVSRL	25	5,62	15.5	45	50	103	45	74	178	126	300	370	216	15.5
	POGHMB50ROVSRL	35	7,89	20.4	50	57	116	50	83	197	138	334	400	238	20.4
	POGHMB57ROVSRL	42,5	10,6	39.0	57	65	130	57	95	222	160	377	460	274	39
	POGHMB65ROVSRL	55	12,84	42.0	65	70	145	65	105	260	180	433	490	310	42
	POGHMB75ROVSRL	85	18,69	67.0	75	83	162	75	127	329	190	527	587	340	67
	HDPOHM0120ROVSRL	120	65,7	123	95	95	208	91	147	399	238	646	687	428	123
	HDPOHM0150ROVSRL	150	85,78	168	105	108	238	102	169	410	275	688	727	485	168

Pdf

Article code

working load limit (ton)

Weight shackle pin (lb)

Net weight (lbs)

diameter bow (inch)
A

diameter pin (inch)
B

diameter eye (inch)
C

width eye (inch)
D

width inside (inch)
E

length inside (inch)
F

width bow (inch)
G

length (inch)
H

length bolt (inch)
I

width (inch)
J

Net weight (LBS)

POGHMB32ROVSRL

4,98

11.6

1 1/4

1 3/8

2 13/16

1 9/32

4 17/32

3 9/32

7 29/32

11 1/2

5 25/32

11.6

POGHMB35ROVSRL

13,5

5,61

15.4

1 3/8

1 1/2

3 5/32

1 3/8

2 1/4

5 1/4

3 5/8

8 15/16

11 7/8

6 11/32

15.4

POGHMB38ROVSRL

8,51

20.4

1 1/2

1 5/8

3 1/2

1 17/32

2 11/32

5 3/4

3 29/32

9 13/16

14 5/32

6 7/8

20.4

POGHMB45ROVSRL

12,38

34.2

1 3/4

4 1/32

1 25/32

2 29/32

4 15/16

11 13/16

14 9/16

8 17/32

34.2

POGHMB50ROVSRL

17,4

45.0

2 1/4

4 9/16

1 31/32

3 9/32

7 3/4

5 7/16

13 5/32

15 3/4

9 3/8

45.0

POGHMB57ROVSRL

42,5

23,37

86.0

2 1/4

2 9/16

5 1/8

2 1/4

3 3/4

8 3/4

6 9/32

14 13/16

18 1/8

10 25/32

86.0

POGHMB65ROVSRL

28,31

92.6

2 1/2

2 3/4

5 23/32

2 9/16

4 1/8

10 1/4

7 3/32

17 3/32

19 5/16

12 3/16

92.6

POGHMB75ROVSRL

41,2

148

3 1/4

6 11/32

2 15/16

12 15/16

7 1/2

20 3/4

23 1/8

13 3/8

148

HDPOHM0120ROVSRL

120

144,84

271

3 3/4

8 3/16

3 19/32

5 25/32

15 23/32

9 3/8

25 7/16

27 1/32

16 7/8

271

HDPOHM0150ROVSRL

150

189,11

370

4 1/8

4 1/4

9 3/8

6 5/8

16 5/32

10 13/16

27 3/32

28 19/32

19 1/8

370

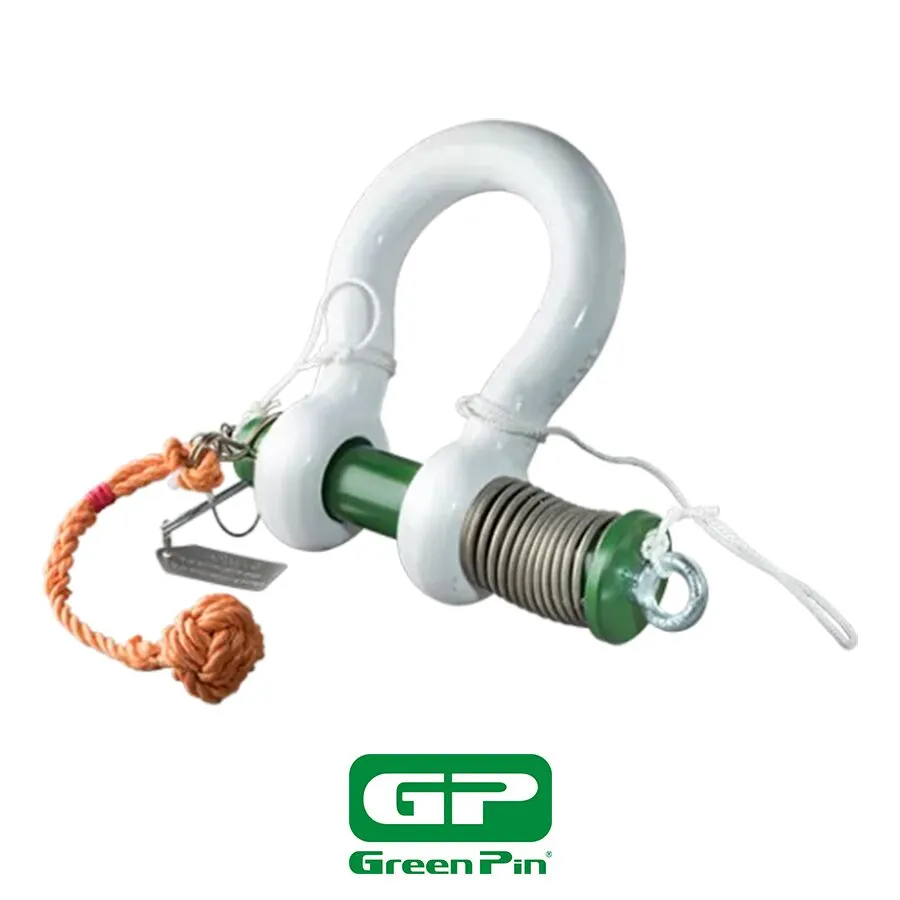

The Green Pin^® Spring Release ROV Shackle is a grade 8 shackle developed specifically for (subsea) release operations with a remotely operated vehicle (ROV). The shackle has a specially designed quick release system that can be manipulated easily by a hydraulically operated ROV arm, without compromising safety. By activating the spring the shackle is disassembled quickly and safely. The Green Pin^® Spring Release ROV Shackle is also suitable for use in extremely low temperatures (down to -60 °C / -76°F). Assembly of the shackle can be done by hand for the smaller sizes. A compression tool (sold separately) should be used for sizes with a working load limit of 42.5 ton and up. Of course, the Green Pin^® Spring Release ROV Shackle conforms to a wide range of certifications. The Green Pin^® Spring Release ROV Shackle is available in a range with a working load limit from 12 up to 150 ton.

Excellent choice for ROV release operations
Quick release system that is manipulated easily by an ROV arm
Reduces the time needed to disassemble shackles underwater
Developed specifically for sub-sea applications
White coating optimizes visibility under water
