Grade 8 bow shackle with safety bolt and fixed nut
Productcode
G-5243
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
hot dipped galvanized (150 ton and upward are painted)
Temp. range
-20°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
MTCb
LROS
CE
Standard
ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade B
| Article code | working load limit (ton) | Weight shackle pin (KG) | Net weight (kg) | diameter bow (mm) A  |
diameter pin (mm) B |
diameter eye (mm) C |
width eye (mm) D |
width inside (mm) E |
length inside (mm) F |
width bow (mm) G |
length (mm) H |
length bolt (mm) I |
width (mm) J |
thickness nut (mm) K |
securing bolt thread (mm) L |
securing bolt length (mm) M |
Torque (nm) | Net weight (KG) | |
 |
SUGHMB13FN | 3,3 | 0,18 | 0.44 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 90 | 80 | 59 | 13 | M6 | 35 | 8,4 | 0.44 |
|
SUGHMB16FN | 5 | 0,3 | 0.79 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | M6 | 40 | 8,4 | 0.79 |
|
SUGHMB19FN | 7 | 0,45 | 1.26 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 115 | 89 | 19 | M6 | 45 | 8,4 | 1.26 |
|
SUGHMB22FN | 9,5 | 0,73 | 1.88 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | M8 | 50 | 20 | 1.88 |
|
SUGHMB25FN | 12,5 | 1,08 | 2.78 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | M8 | 55 | 20 | 2.78 |
|
SUGHMB28FN | 15 | 1,41 | 3.87 | 28 | 32 | 67 | 28 | 47 | 108 | 75 | 186 | 166 | 131 | 27 | M10 | 60 | 39 | 3.87 |
|
SUGHMB32FN | 18 | 1,79 | 5.26 | 32 | 35 | 73 | 32 | 51 | 115 | 83 | 201 | 184 | 147 | 30 | M10 | 65 | 39 | 5.26 |
|
SUGHMB35FN | 21 | 2,3 | 6.94 | 35 | 38 | 79 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | M10 | 70 | 39 | 6.94 |
|
SUGHMB38FN | 30 | 2,76 | 8.79 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 19 | M8 | 75 | 20 | 8.79 |
|
SUGHMB45FN | 40 | 4,92 | 15.0 | 45 | 50 | 104 | 45 | 74 | 178 | 126 | 300 | 243 | 216 | 23 | M8 | 90 | 20 | 15 |
|
SUGHMB57FN | 55 | 6,95 | 22.0 | 57 | 57 | 119 | 57 | 83 | 197 | 138 | 342 | 283 | 252 | 26 | M10 | 100 | 39 | 22 |
|
SUGHMB70FN | 85 | 12,2 | 42.0 | 70 | 70 | 145 | 70 | 105 | 260 | 180 | 438 | 339 | 320 | 32 | M12 | 120 | 68 | 42 |
|
SUGHMB83FN | 120 | 21,1 | 70.0 | 83 | 83 | 164 | 83 | 127 | 330 | 190 | 537 | 397 | 356 | 39 | M12 | 140 | 68 | 70.0 |
| HDSUHM0150FN | 150 | 28,12 | 112 | 95 | 95 | 204 | 95 | 147 | 400 | 238 | 644 | 453 | 428 | 50 | M12 | 150 | 75 | 112 | |
| HDSUHM0175FN | 175 | 39,15 | 160 | 105 | 108 | 235 | 105 | 169 | 410 | 275 | 686 | 496 | 485 | 50 | M12 | 160 | 75 | 160 |
| Article code | working load limit (ton) | Weight shackle pin (LB) | Net weight (LBS) | diameter bow (inch) A |
diameter pin (inch) B |
diameter eye (inch) C |
width eye (inch) D |
width inside (inch) E |
length inside (inch) F |
width bow (inch) G |
length (inch) H |
length bolt (inch) I |
width (inch) J |
thickness nut (inch) K |
securing bolt thread (inch) L |
securing bolt length (inch) M |
Torque (nm) | Net weight (LBS) | |
|
SUGHMB13FN | 3,3 | 0,4 | 0.97 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 17/32 | 3 5/32 | 2 5/16 | 1/2 | M6 | 1 3/8 | 8,4 | 0.97 |
|
SUGHMB16FN | 5 | 0,65 | 1.74 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 27/32 | 2 15/16 | 21/32 | M6 | 1 9/16 | 8,4 | 1.74 |
|
SUGHMB19FN | 7 | 1 | 2.78 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 17/32 | 3 1/2 | 3/4 | M6 | 1 25/32 | 8,4 | 2.78 |
|
SUGHMB22FN | 9,5 | 1,61 | 4.15 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 5 1/8 | 4 1/32 | 7/8 | M8 | 1 31/32 | 20 | 4.15 |
|
SUGHMB25FN | 12,5 | 2,38 | 6.13 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 29/32 | 4 21/32 | 31/32 | M8 | 2 5/32 | 20 | 6.13 |
|
SUGHMB28FN | 15 | 3,12 | 8.53 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 5/16 | 6 17/32 | 5 5/32 | 1 1/16 | M10 | 2 3/8 | 39 | 8.53 |
|
SUGHMB32FN | 18 | 3,94 | 11.6 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 7 1/4 | 5 25/32 | 1 3/16 | M10 | 2 9/16 | 39 | 11.6 |
|
SUGHMB35FN | 21 | 5,07 | 15.3 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 3/4 | 6 3/8 | 1 5/16 | M10 | 2 3/4 | 39 | 15.3 |
|
SUGHMB38FN | 30 | 6,09 | 19.4 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 7 5/16 | 6 7/8 | 3/4 | M8 | 2 15/16 | 20 | 19.4 |
|
SUGHMB45FN | 40 | 10,86 | 33.1 | 1 3/4 | 2 | 4 3/32 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 9 9/16 | 8 1/2 | 29/32 | M8 | 3 17/32 | 20 | 33.1 |
|
SUGHMB57FN | 55 | 15,33 | 48.5 | 2 | 2 1/4 | 4 11/32 | 2 1/4 | 3 9/32 | 7 3/4 | 5 7/16 | 13 15/32 | 11 5/32 | 9 29/32 | 1 1/32 | M10 | 3 15/16 | 39 | 48.5 |
|
SUGHMB70FN | 85 | 26,9 | 92.6 | 2 1/2 | 2 3/4 | 5 23/32 | 2 3/4 | 4 1/8 | 10 1/4 | 7 3/32 | 17 1/4 | 13 11/32 | 12 19/32 | 1 1/4 | M12 | 4 23/32 | 68 | 92.6 |
|
SUGHMB83FN | 120 | 46,52 | 154 | 3 | 3 1/4 | 6 15/32 | 3 9/32 | 5 | 13 | 7 15/32 | 21 5/32 | 15 5/8 | 14 1/32 | 1 17/32 | M12 | 5 1/2 | 68 | 154 |
| HDSUHM0150FN | 150 | 61,99 | 247 | 3 3/4 | 3 3/4 | 8 1/32 | 3 3/4 | 5 25/32 | 15 3/4 | 9 3/8 | 25 11/32 | 17 27/32 | 16 27/32 | 1 31/32 | M12 | 5 29/32 | 75 | 247 | |
| HDSUHM0175FN | 175 | 86,31 | 353 | 4 1/8 | 4 1/4 | 9 1/4 | 4 1/8 | 6 21/32 | 16 5/32 | 10 13/16 | 27 | 19 17/32 | 19 3/32 | 1 31/32 | M12 | 6 5/16 | 75 | 353 |

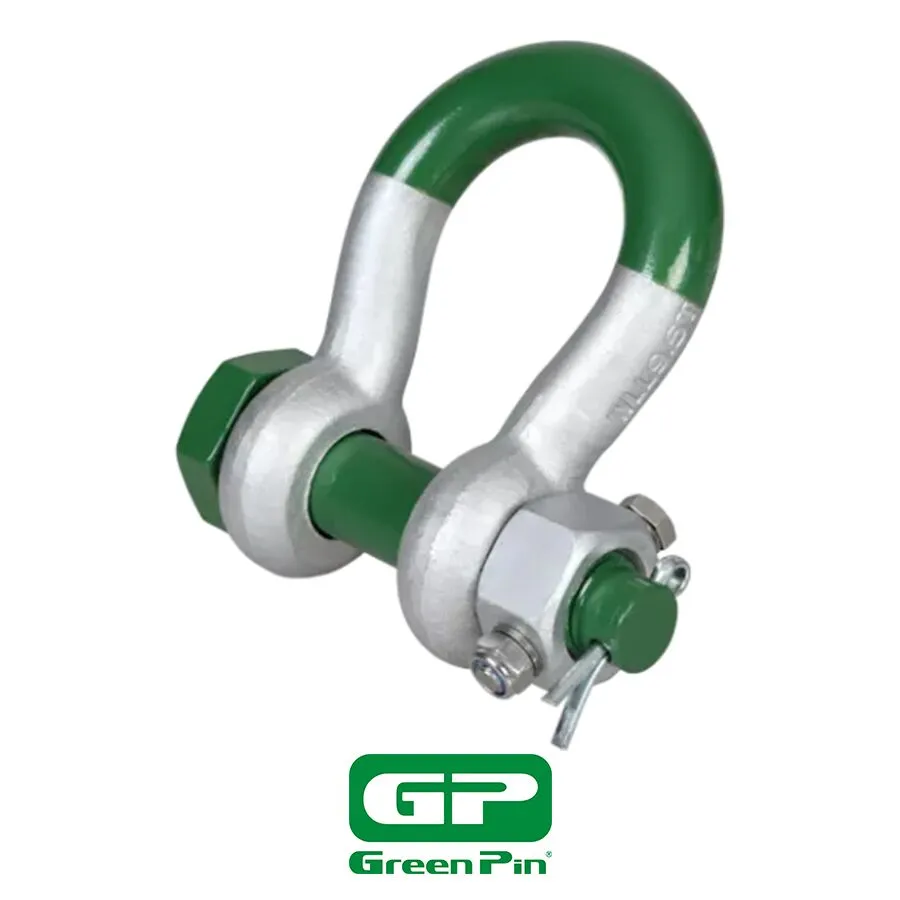

The Green Pin Super® Bow Shackle FN is a grade 8 bow shackle with a safety bolt and a fixed nut. Handling of the Green Pin Super® Bow Shackle FN is easier due to the smaller size and weight (with equal WLL compared to non-Super products). The shackle is the perfect choice when the load is dynamic or exposed to extreme vibrations because of its triple safety (split pin, safety bolt and fixed nut). The fixed nut of the Green Pin Super® Bow Shackle FN is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized as the chamber in the shackle eye hides the screw thread. The Green Pin Super® Bow Shackle FN is available in a range with a working load limit from 3.3 to 175 ton.
