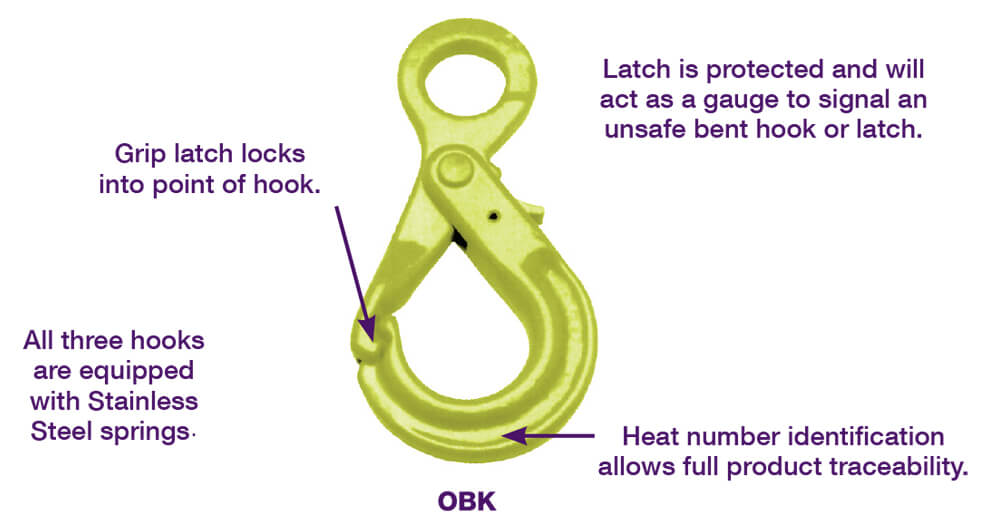

• All three hooks are equipped with Stainless Steel springs.
• Grip latch locks into point of hook.
• Latch is protected and will act as a gauge to signal an unsafe bent hook or latch.
• Heat number identification allows full product traceability.

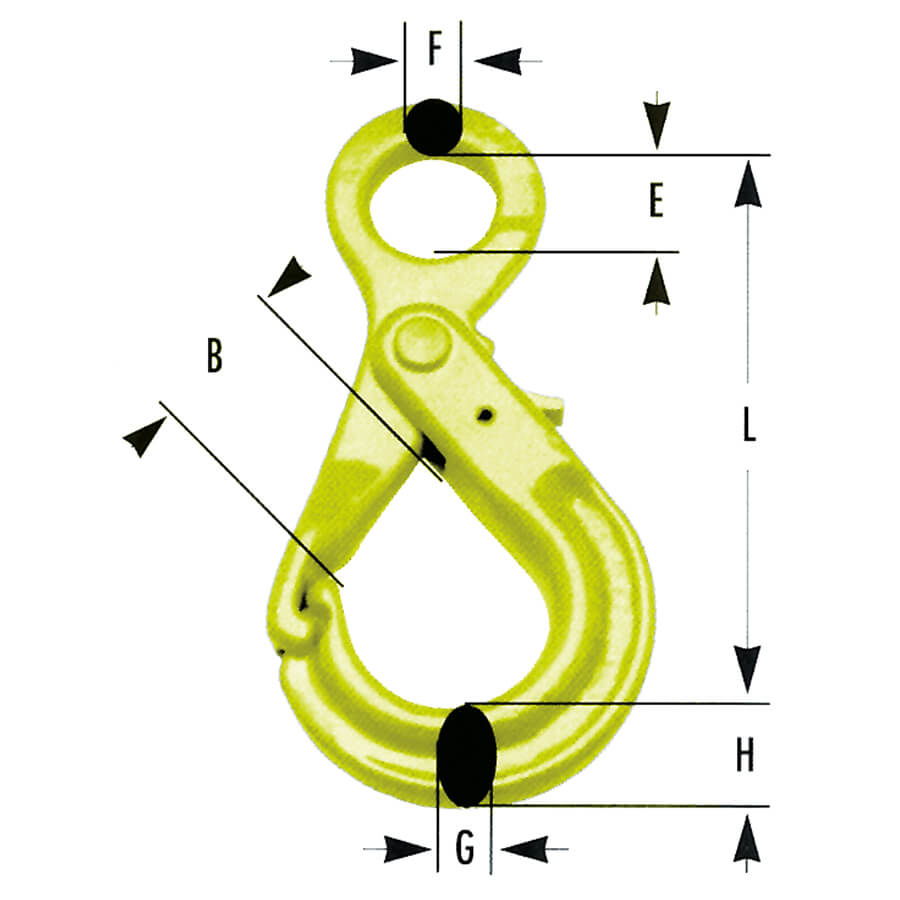

| CERTEX Cat. Ref. No. | GunneboJohnson Code | Chain Size | Grade | Working Load Limit *(Lbs) | Dimensions (Inches) | Weight Each (Lbs) | |||||
| L | B | E | F | G | H | ||||||
| CX06-0546 | OBK-7/8-10 | 9/32 | 100 | 4,300 | 5.1 | 1.3 | .99 | .39 | .67 | .79 | 1.5 |
| CX06-0547 | OBK-10-10 | 3/8 | 100 | 8,800 | 6.4 | 1.7 | 1.3 | .49 | .83 | .97 | 2.7 |
| CX06-0548 | OBK-13-10 | 1/2 | 100 | 15,000 | 7.7 | 2.0 | 1.6 | .59 | 1.0 | 1.2 | 4.5 |
| CX06-0549 | OBK-16-10 | 5/8 | 100 | 22,600 | 9.3 | 2.4 | 2.0 | .75 | 1.2 | 1.5 | 7.7 |
| CX06-0550 | OBK-18/20-8 | 3/4 | 80 | 28,300 | 11.5 | 2.8 | 2.3 | 1.1 | 1.4 | 1.9 | 10.2 |
* Design factor 4:1 Proof tested and certified.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Ring body and bolt made from stainless steel Non-removable special bolt
Large WLL range 1.5 t – 16 t Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring WLL possible up to 90° in load ring plane
