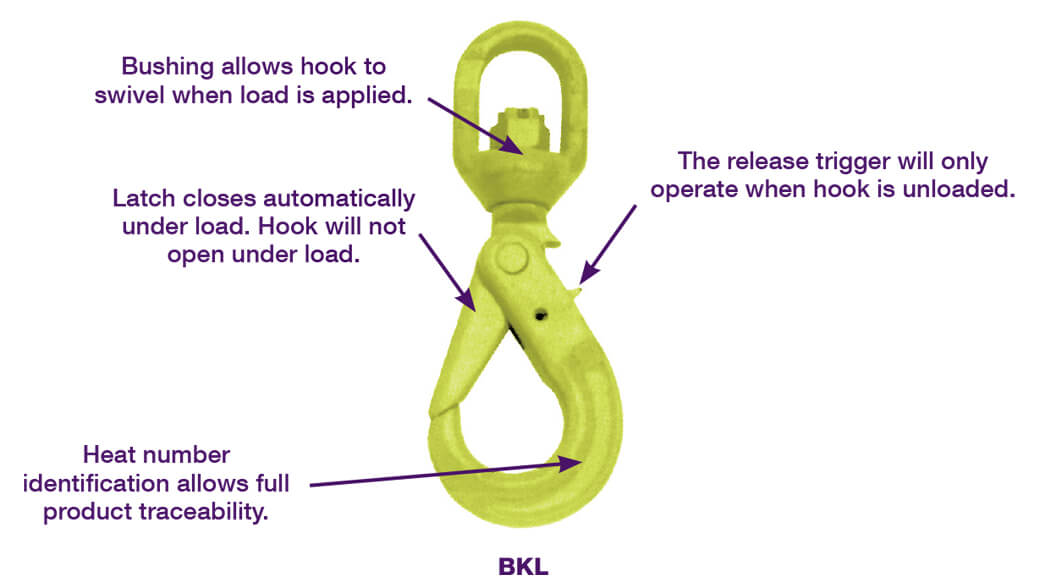

(Swivel Eye Type)
| CERTEX Cat. Ref. No. |
Gunnebo-Johnson Code |
Chain Size |
Working Load Limit *(Lbs |

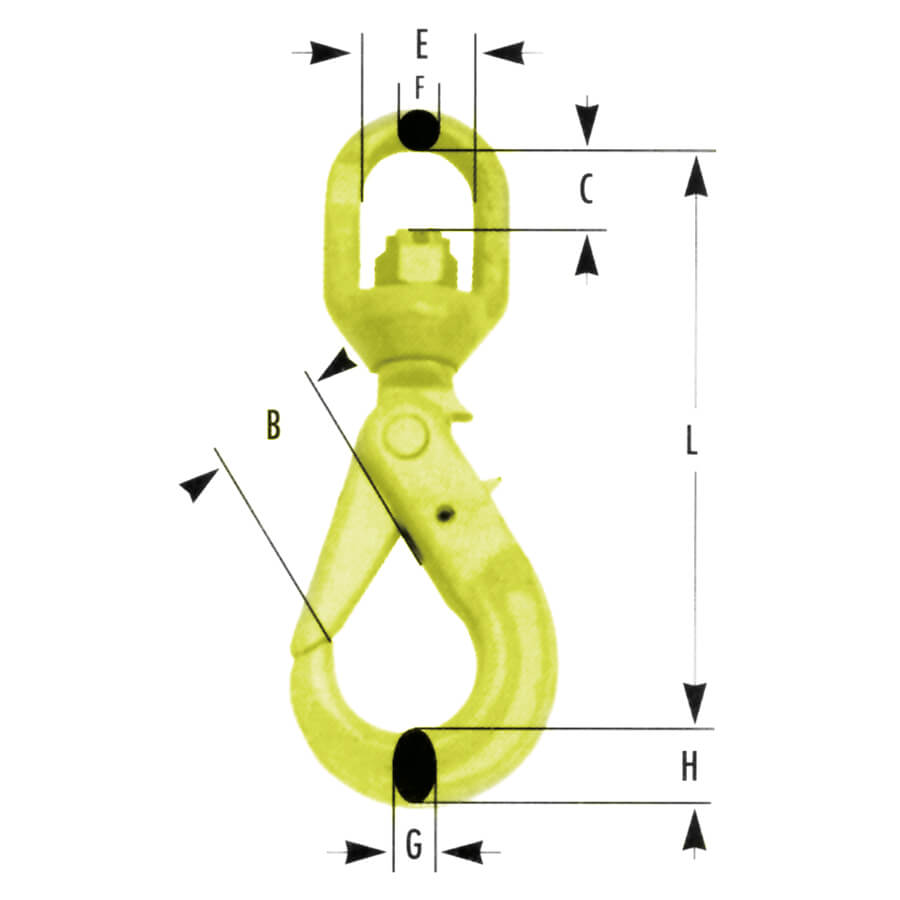

Dimensions (Inches) | Weight Each (Lbs) |
||||||
| L | B | C | E | F | G | H | |||||
| CX06-0551 | BKL-6-10 | 7/32 | 2,700 | 5.9 | 1.1 | .91 | 1.3 | .43 | .55 | .75 | 1.4 |
| CX06-0552 | BKL-7/8-10 | 9/32 | 4,300 | 7.2 | 1.4 | 1.1 | 1.4 | .47 | .67 | .91 | 2.4 |
| CX06-0553 | BKL-10-10 | 3/8 | 8,800 | 8.6 | 1.7 | 1.5 | 1.7 | .59 | .99 | 1.1 | 4.4 |
| CX06-0554 | BKL-13-10 | 1/2 | 15,000 | 10.9 | 2.1 | 1.7 | 1.9 | .75 | 1.1 | 1.5 | 8.4 |
| CX06-0555 | BKL-16-10 | 5/8 | 22,600 | 13.2 | 2.5 | 2.3 | 2.4 | .87 | 1.5 | 1.9 | 15.0 |
* Design factor 4:1 Proof tested and certified.
