1/4 Ton capacity
Harrington’s LX mini puller is lightweight, compact and built to perform. It fits conveniently in a toolbox and will
easily handle pulling and moving jobs in many applications including transportation, construction and plumbing.
Available in two capacities to fit all applications.

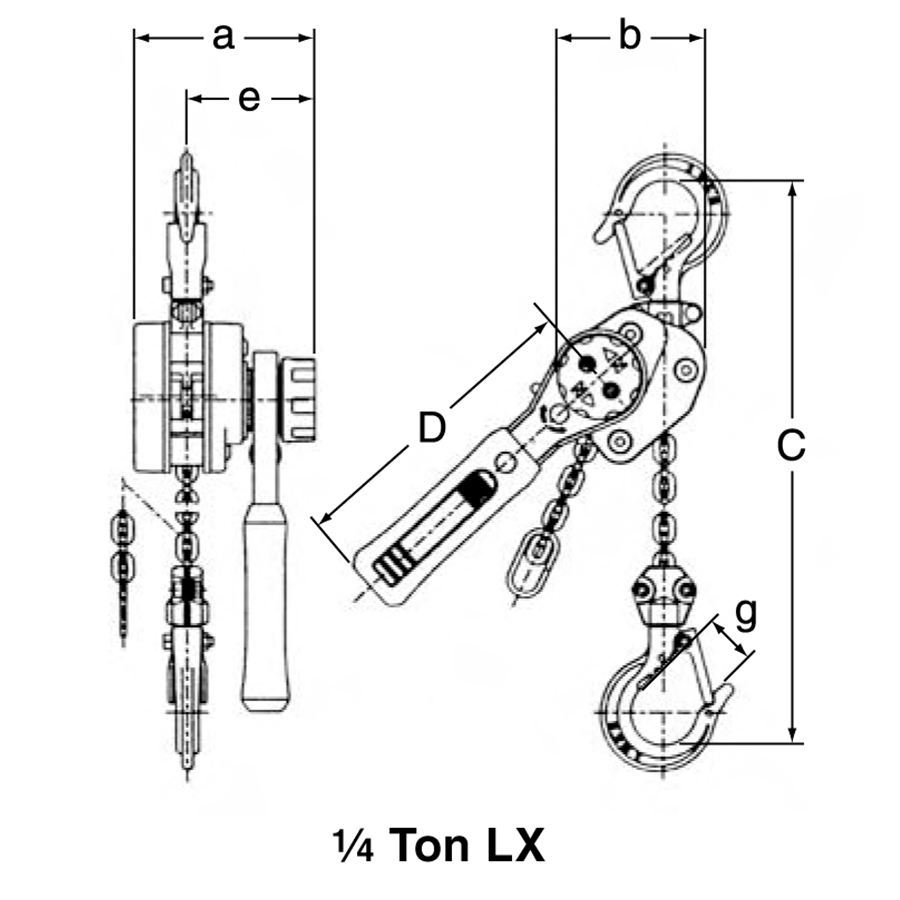

| Cap. (Ton) | CERTEX Cat. Ref. No. | Harrington Code | Headroom C (in.) | Sth Lift (ft) | Pull to Lift Load (lbs) | a (in) | c (in) | D (in) | e (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1⁄4 | CX11-0572 | LB003 | 8.1 | 5 | 40 | 3.5 | 2.9 | 5.9 | 2.4 | 0.8 | 3.2 x 1 | 3.5 | 4.0 | 0.15 |
Weights are approximate
• Durable carbon steel body is compact and lightweight.
• Very low headroom design for use in tight spaces.
• Free-chain mechanism allows for quick adjustments.
• Extremely low pulling force is required for operation.
• Weston-style brake is totally enclosed to protect against dirt, dust and rain.
• Sing step reduction gear assures load holding performance.
• Load chain guide mechanism permits smooth and quiet guiding of chain.
• Rubber handle grip for ease of use.
• Effortless to transport, install and store.
Options:
• Heavy duty carrying case
• Grade 100, nickel-plated load chain is corrosion and wear resistant.
• Strong hook latches include safety tip.
• 5-foot lift is standard. Longer lifts are available in both capacities.
• Sold individually or in convenient multi-packs — 1/4 Ton in 6-packs and 1/2 Ton in 4-packs.
• Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity in accordance with ASME B30.21 requirements.
