Harrington CF Hand Chain Hoist

Harrington CF Hand Chain Hoist

Harrington’s Model CF Series Hand Chain Hoist is a practical choice for efficient, trouble-free service. Rugged features include a die-cast aluminum body and high tensile heat treated main shaft, pinion and load gear. Special heat treated load chain, pre-lubricated sealed ball bearings, contribute to long service with low maintenance. All hoists are load tested and meet ANSI B30.16 & OSHA standards.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

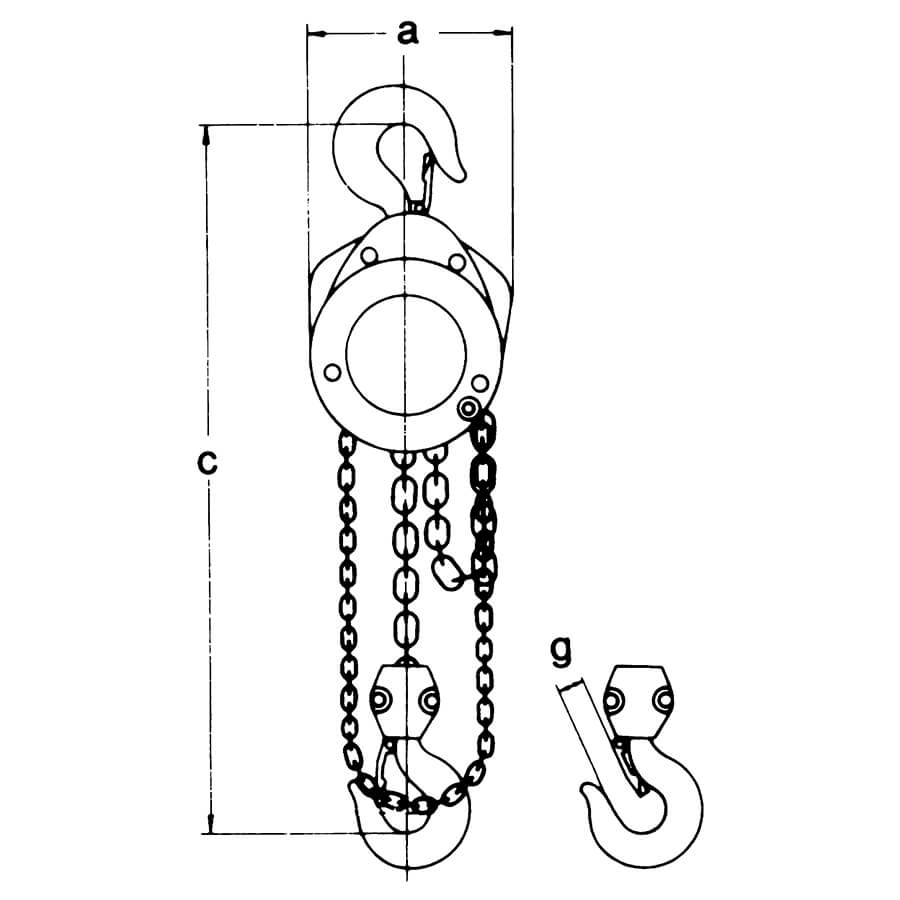

Capacity (ton) CERTEX Cat. Ref. No. Harrington Code Model CF4 Lift Ft. Hand Chain Pull Lb. Over Haul Ratio Head Room c In. a In. g In. Net Wt. Lb. Approx. Shipping Wt. Lb Chain Falls
1/2 CX11-0409 CF005 10 60 19 12.8 5.8 1.1 24 26 1
1 CX11-0410 CF010 10 72 31 14.6 6.8 1.1 29 32 1
1 1/2 CX11-0411 CF015 10 84 41 17.3 7.9 1.3 41 43 1
2 CX11-0412 CF020 10 80 63 20.0 8.2 1.4 48 51 2
3 CX11-0413 CF030 10 92 81 23.2 9.3 1.7 64 68 2
5 CX11-0414 CF050 10 92 134 24.4 13.0 1.8 84 88 3

Note: Length of hand chain equals lift less 18 inches.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
