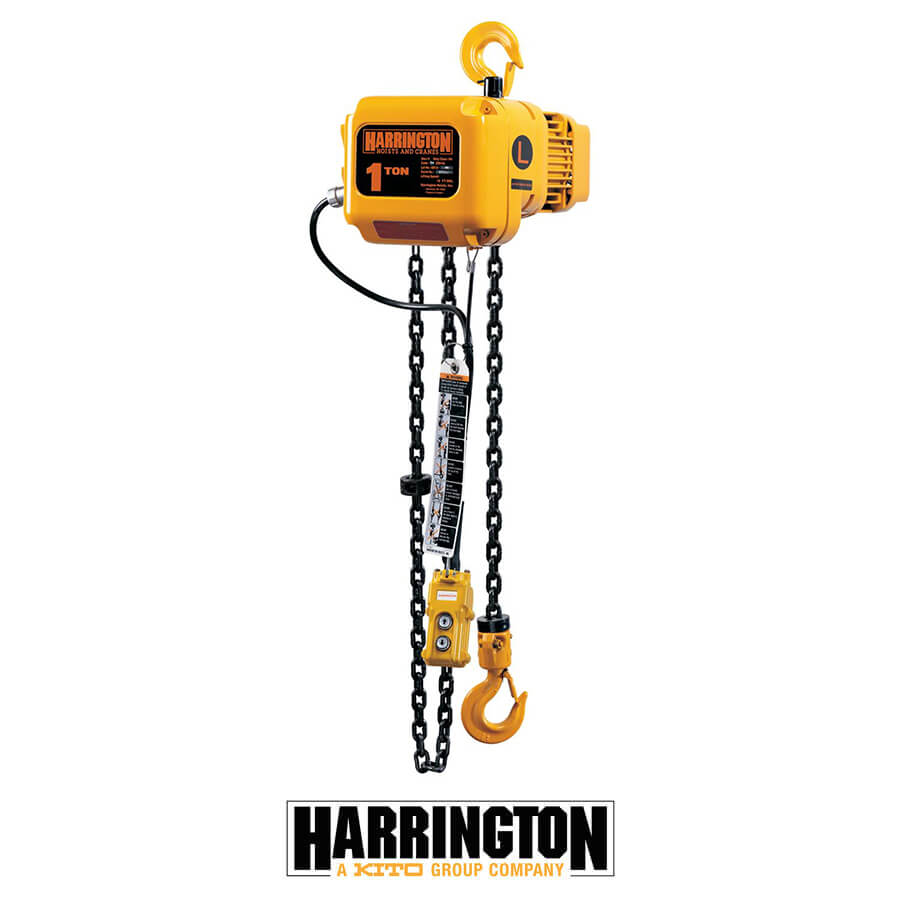

Harrington ER Electric Chain Hoists

Harrington ER Electric Chain Hoists

• Standard length of power supply cable is 15′. For more information on power supply system, contact the Harrington distributor nearest you.
• Special lengths of load chain, pushbutton cord or power supply cables are available upon request.
• Harrington load chain is casehardened Grade 80 chain.
• Optional canvas chain containers are available.
• Optional steel chain containers are available if lifting height exceeds limit of canvas chain container.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Cap. (Tons) CERTEX Cat. Ref. No. Harrington Product Code Standard Lift (Ft.) Push Button Cord 1 (Ft.) Lifting Speed (Ft./Min.) Lifting Motor 3 Phase 60 Hz. Load Chain Diameter (mm) x Chain Fall Lines Net Weight (Lbs.) Weight for Additional One Foot of Lift (Lbs.)
Output (Hp) Rated Current (amps)
@230V (208V) @460V
1/8 CX11-0571 ER001H — — 57 0.75 4.2 2.1 5.0 x 1 68 0.37
1/4 CX11-0572 ER003S — — 39 0.75 4.2 2.1 5.0 x 1 68 0.37
1/4 CX11-0573 ER003H — — 60 1.2 5.7 2.9 6.3 x 1 86 0.57
1/2 CX11-0574 ER005L — — 15 0.75 4.2 2.1 6.3 x 1 70 0.57
1/2 CX11-0575 ER005S — 7.2 30 1.2 5.7 2.9 6.3 x 1 86 0.57
1 CX11-0576 ER010L — — 16 1.2 5.7 2.9 8.0 x 1 90 0.93
1 CX11-0577 ER010S 10 — 29 2.4 10.5 5.3 8.0 x 1 134 0.93
1 1/2 CX11-0578 ER015S — — 20 2.4 10.5 5.3 10.0 x 1 150 1.5
2 CX11-0579 ER020L — — 14 2.4 10.5 5.3 10.0 x 1 150 1.5
2 CX11-0580 ER020S — — 28 4.7 18.3 9.2 10.0 x 1 238 1.5
2 1/2 CX11-0581 ER025S — — 23 4.7 18.3 9.2 11.2 x 1 249 1.9
3 CX11-0582 ER030L — 8.2 16 4.7 18.3 9.2 12.5 x 1 256 2.3
3 CX11-0583 ER030S — — 22 6.2 25.1 12.6 12.5 x 1 269 2.3
5 CX11-0584 ER050L — — 12 4.7 18.3 9.2 11.2 x 2 308 4.0

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
