Single Phase Power Reaches New Levels of Performance:
Harrington’s SNER Series of electric chain hoists and SMR motorized trolleys offer expanded duty, low headroom and additional capacities for those many applications where only single-phase power is available. The standard features of the popular three-phase NER/MR Series are incorporated to provide the operator with top quality and high performance.
| Cap. (Tons) | Harrington Product Code | Standard Lift (Ft.) | Push Button Cord 1 (Ft.) | Lifting Speed (Ft./Min.) | Lifting Motor 1 Phase 60 Hz. | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (Lbs.) | Weight for Additional One Foot of Lift (Lbs.) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output (Hp) | Rated Current (amps) | |||||||||
| @115V | @230V | |||||||||
| 1/4 | SNER003S | — | — | 14 | 0.34 | 7.7 | 2.9 | 5.0 x 1 | 82 | 0.37 |
| 1/2 | SNER005L | — | — | 7 | 0.34 | 7.7 | 2.1 | 6.3 x 1 | 84 | 0.57 |
| 1/2 | SNER005S | — | 7.2 | 15 | 0.6 | 16.9 | 2.9 | 6.3 x 1 | 104 | 0.57 |
| 1 | SNER010L | — | — | 7 | 0.6 | 16.9 | 2.9 | 8.0 x 1 | 110 | 0.93 |
| 1 | SNER010S | 10 | — | 14 | 1.2 | 23.9 | 5.3 | 8.0 x 1 | 159 | 0.93 |
| 2 | SNER020L | — | — | 7 | 1.2 | 23.9 | 5.3 | 10.0 x 1 | 174 | 1.5 |
| 3 | SNER030C | — | 8.2 | 3.5 | 1.2 | 23.9 | 9.2 | 10.0 x 2 | 207 | 3.1 |

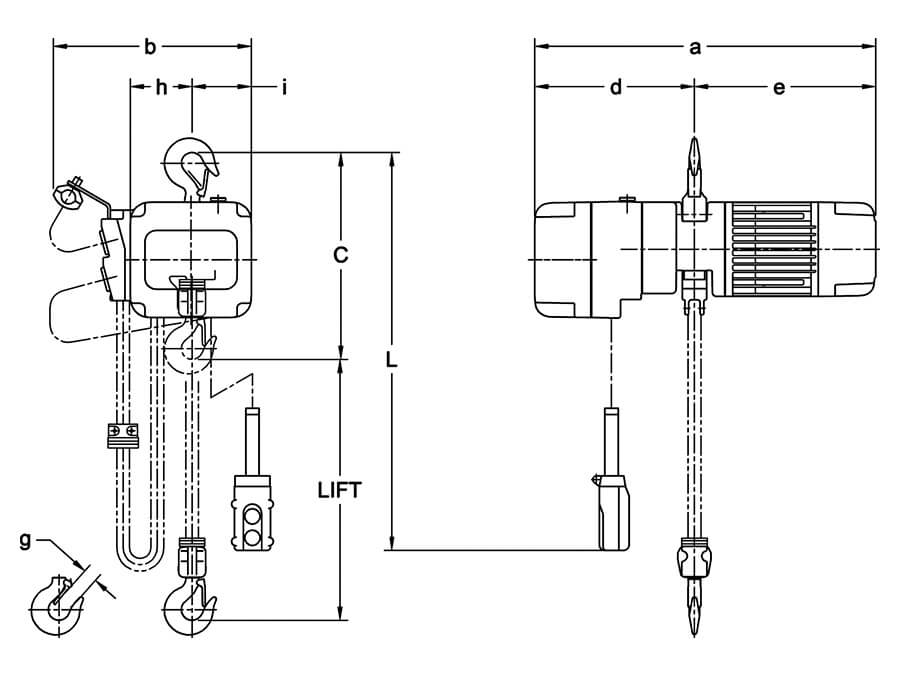

| Cap. (Tons) | Harrington Product Code | Headroom C (in) | a (in) | b (in) | d (in) | e (in) | g (in) | h (in) | i (in) |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | SNER003S | 13.8 | 22.2 | 13.0 | 10.4 | 11.9 | 0.9 | 4.0 | 3.9 |
| 1/2 | SNER005L | 14.0 | 22.2 | 13.0 | 10.4 | 11.9 | 0.9 | 4.0 | 3.9 |
| 1/2 | SNER005S | 14.6 | 23.2 | 13.8 | 10.6 | 12.6 | 0.9 | 4.7 | 4.1 |
| 1 | SNER010L | 16.1 | 23.2 | 13.8 | 10.6 | 12.6 | 1.2 | 4.7 | 4.1 |
| 1 | SNER010S | 17.3 | 26.9 | 16.5 | 12.4 | 14.4 | 1.2 | 6.1 | 5.2 |
| 2 | SNER020L | 22.6 | 26.9 | 16.5 | 12.4 | 14.4 | 1.5 | 6.1 | 5.2 |
| 3 | SNER030C | 29.5 | 26.9 | 16.5 | 12.4 | 14.4 | 1.7 | 8.2 | 3.0 |
Top Quality Hoists
• 60 minute severe duty rating (fan cooled)
• Unique long life chain guide
• Friction clutch prevents lifting of overloads
• Single chain fall through 2 Tons
Applications
• Machine shops
• Temporary job sites
• Maintenance areas
Standard Features
• 1/4 – 3 Ton capacities
• 115/230-1-60 re-connectible power
• Low headroom
• Lightweight and easy maintenance
• Pull-rotor motor brake
• ASME H4 classification
• NEMA 3R, IP55 rating
