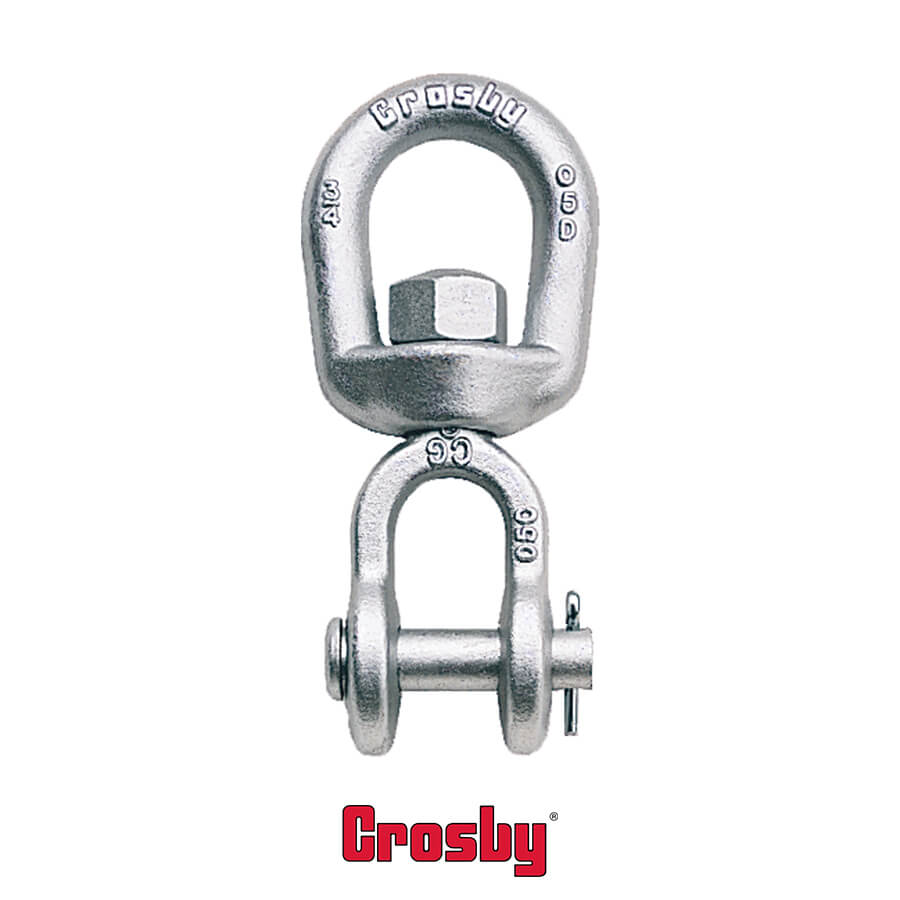

• Hot Dip Galvanized
• Quenched & Tempered
Meets the performance requirements of Federal Specifications RR-C-271D, Type VII, Class 3, except for those provisions required of the contractor.
401, 402 and 403 swivels are positioning devices and are not intended to rotate under load. U.S. Patent 5,381,650 and foreign equivalents
| Size (in.) | CERTEX Cat. Ref. No. | Crosby G-403 Stock No. Galv. | Working Load Limit* (lbs.) | Weight Each (lbs.) | Dimensions (in.) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

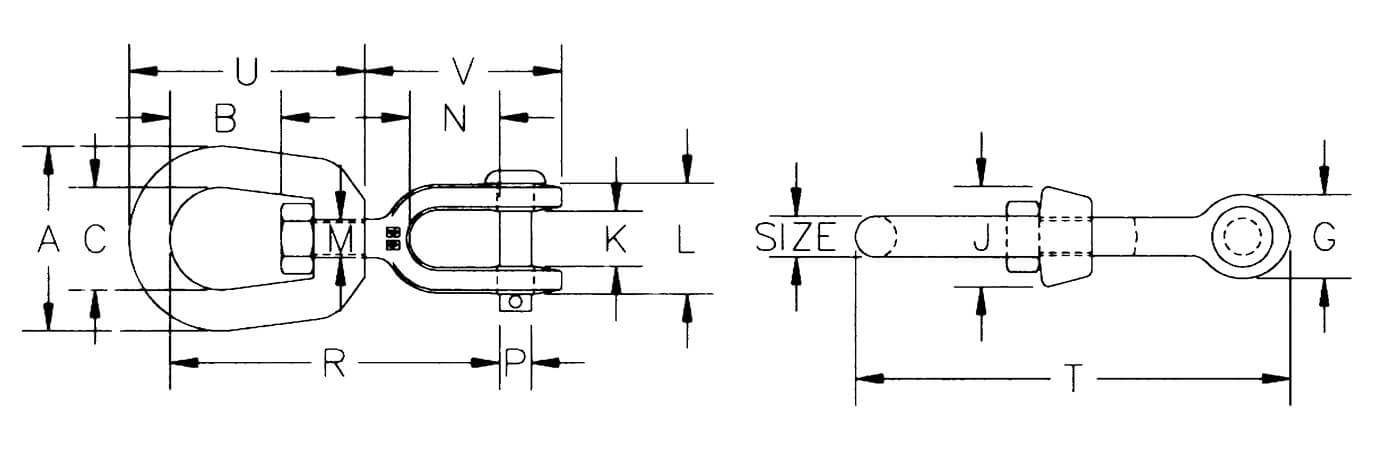

| A | B | C | G | J | K | L | M | N | P | R | T | U | V | |||||
| 1/4 | CX05-0315 | 1016395 | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 3.38 | 1.69 | 1.69 |
| 5/16 | CX05-0316 | 1016411 | 1250 | 0.34 | 1.63 | 0.81 | 1.00 | 0.81 | 0.81 | 0.50 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 3.88 | 2.06 | 1.81 |
| 3/8 | CX05-0317 | 1016439 | 2250 | 0.66 | 2.00 | 0.94 | 1.25 | 1.00 | 1.00 | 0.63 | 1.41 | 0.50 | 1.06 | 0.38 | 3.63 | 4.75 | 2.50 | 2.25 |
| 1/2 | CX05-0318 | 1016457 | 3600 | 1.34 | 2.50 | 1.31 | 1.50 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.50 | 4.50 | 6.06 | 3.19 | 2.88 |
| 5/8 | CX05-0319 | 1016475 | 5200 | 2.48 | 3.00 | 1.56 | 1.75 | 1.63 | 1.50 | 0.94 | 2.06 | 0.75 | 1.50 | 0.63 | 5.31 | 7.31 | 3.88 | 3.44 |
| 3/4 | CX05-0320 | 1016493 | 7200 | 3.88 | 3.50 | 1.75 | 2.00 | 1.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 8.31 | 4.31 | 4.00 |
| 7/8 | CX05-0321 | 1016518 | 10000 | 5.87 | 4.00 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1.00 | 2.06 | 0.88 | 7.00 | 9.53 | 5.00 | 4.53 |
| 1 | CX05-0322 | 1016536 | 12500 | 9.84 | 4.50 | 2.31 | 2.50 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 11.69 | 5.75 | 5.94 |
| 1 1/4 | CX05-0323 | 1016572 | 18000 | 15.75 | 5.69 | 2.69 | 3.13 | 3.13 | 3.00 | 2.06 | 4.31 | 1.50 | 2.81 | 1.38 | 9.44 | 13.13 | 6.75 | 6.38 |
| 1 1/2 | CX05-0324 | 1016590 | 45200 | 54.75 | 7.00 | 4.19 | 4.00 | 5.63 | 4.00 | 2.88 | 6.00 | 2.25 | 4.44 | 2.25 | 14.74 | 20.84 | 10.00 | 10.84 |
* Ultimate Load is 5 times the Working Load Limit.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
