Latchways® Load-Carrying Transfastener

Latchways® Load-Carrying Transfastener

Latchways® Horizontal Lifeline Systems act as permanent fall protection systems for maintenance works in respectively all environments. The wide range of componentry offers a possibility to make every system fit for purpose.

  • Permanent Horizontal Lifeline System tested for simultaneous usage of up to 6 users
  • Patented starwheel technology Transfasteners® allow the system users to walk freely along the entire lifeline system
  • Various intermediate and corner brackets allow the Transfasteners® to pass brackets without any manual action
  • A wide range of fixing-componentry allows the installer to make the system fit to every possible situation on-site
  • Possibility to install multiple horizontal energy absorbers to overcome challenges on-site
  • High quality stainless steel (AISI 316) makes the product to last even in aggressive environments
  • Tested according to and beyond various global fall protection standards such as EN 795:2012 Type C & CEN/TS 16415:2013

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Key Benefits

• Quick and simple installation
• Less costly to install than ‘I’ beam systems
• Can be configured as a single span (up to 60 m) or multi-span system
• Can be used by up to three workers
• Mobile anchorages remain permanently attached to system
• Can be retrofitted to existing structures or incorporated at the design stage of new facilities
• Easily able to accommodate changes of direction
• Written warranty available on service life of system

Standards

• System tested to EN 795
• Mobile anchorage certified by SATRA
• Conforms to EN 362:1992

The concept of the ManSafe overhead system is replicated in the ManSafe horizontal system which is usually fixed to a structure at shoulder/waist height following the contours of the structure to ensure the worker can access all areas whilst still attached to the system. End fixings are similar to the ManSafe overhead system; the intermediates are D-rings through which the unique Latchways Transfastener™ will effortlessly pass when the user is on the system.

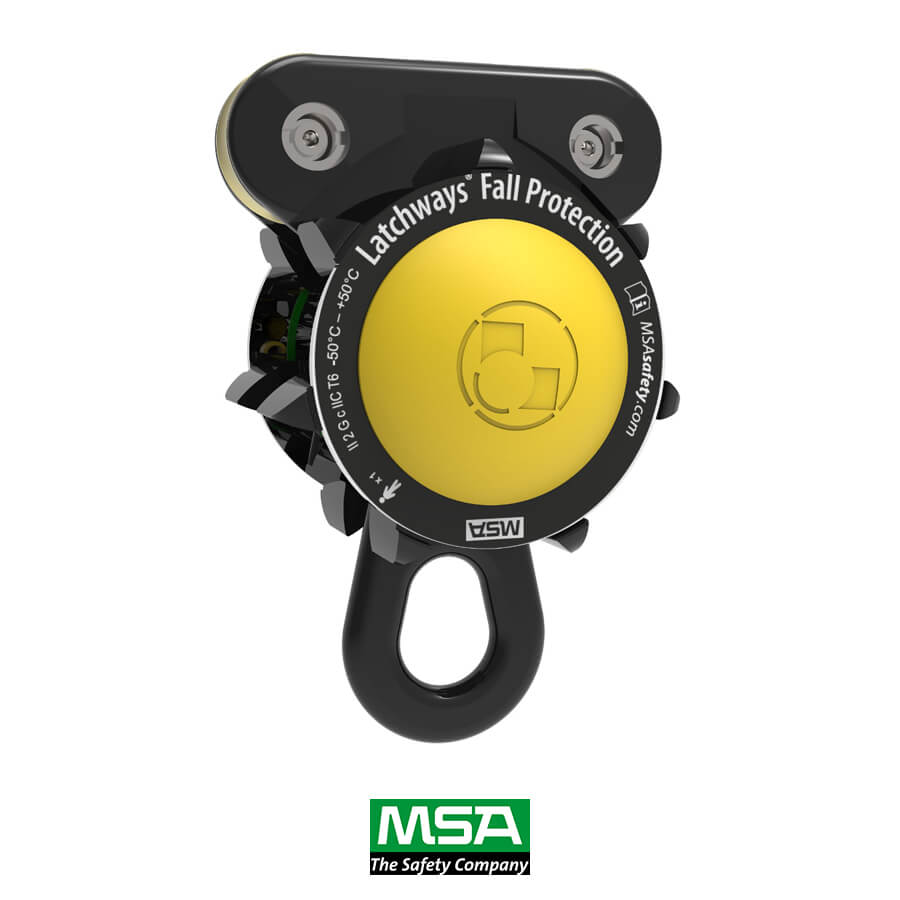

Latchways unique removable Transfastener can be
removed at any point along the cable and allows
hands-free work along the length of the system.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
