Lewis Snake Grips

Lewis Snake Grips

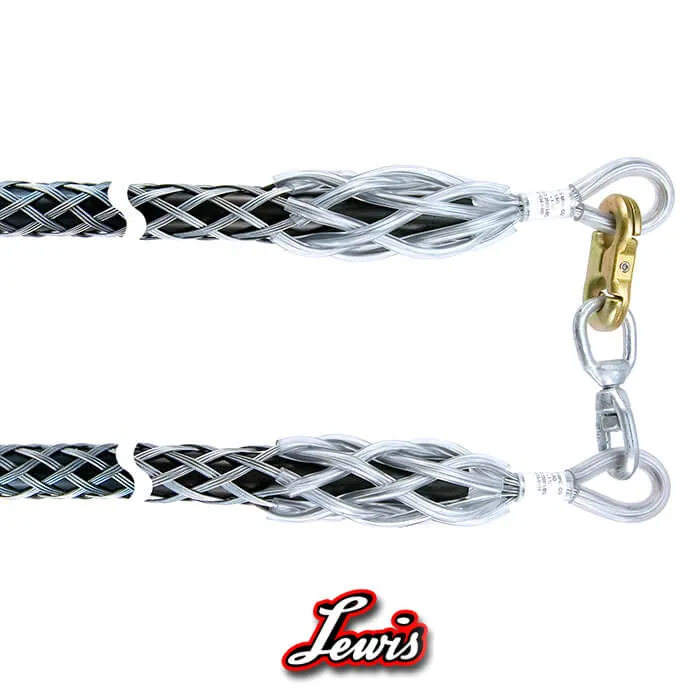

The Lewis Snake Grip expands or contracts to grip different or identical cable and/or rope sizes
as per the customer’s needs.
SAVE time stringing up, changing and unstringing because the snake requires no special tools. The swivel and swing link go smoothly through blocks and prevent line twisting.
INSTALL new cable by using old existing cable as pulling line.
Always seize the ends of the grips by banding or taping


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Lewis Type Lsg Wire Rope Snakes
Size UTS Wk. Ld.
REGULAR SIZE SNAKES
LEWIS TYPE LSG 1/4” – 1/2” 4,486 1,200
LEWIS TYPE LSG 1/2” – 1” 7,500 2,500
LEWIS TYPE LSG 1” – 1 1/2” 10,000 3,500
LEWIS TYPE LSG 1 1/2” – 2” 12,000 4,000
LEWIS TYPE LSG 2” – 2 3/4” 16,000 5,000
LEWIS TYPE LSG 2 3/4” – 3 1/2” 20,000 6,500
LEWIS TYPE LSG 3 1/2” – 4 1/4” 24,000 8,000
SPECIAL SIZE SNAKES
LEWIS TYPE LSG 1/4” – 1 1/2” 4,486/7,500 1,200/2,500
LEWIS TYPE LSG 1/2” – 1 1/2” 7,500/10,000 2,500/3,500
LEWIS TYPE LSG 1/2” – 2 7,500/12,000 2,500/4,000
LEWIS TYPE LSG 1” – 2” 10,000/12,000 3,500/4,000
LEWIS TYPE LSG 1 1/2” – 2 1/2” 12,000/16,000 4,000/5,000

Wire Rope Terminations Information

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
