Pengo-Miller Line Stringing Swivels

Pengo-Miller Line Stringing Swivels
  • The original PENGO-MILLER tension line stringing swivels and 90° connectors.
  • Designed specifically for horizontal pulling of tension lines and passage over sheaves, overhead or through conduit.
  • Swivels have Working Loads up to 100,000 lbs. with a 3:1 design factor.
  • Equipped with low friction angular contact ball bearings.
  • Machined, heat treated from solid forged alloy steel bar. Single-piece shank.
  • Zinc plating inside and out for effective protection against corrosion.
  • *More info below

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

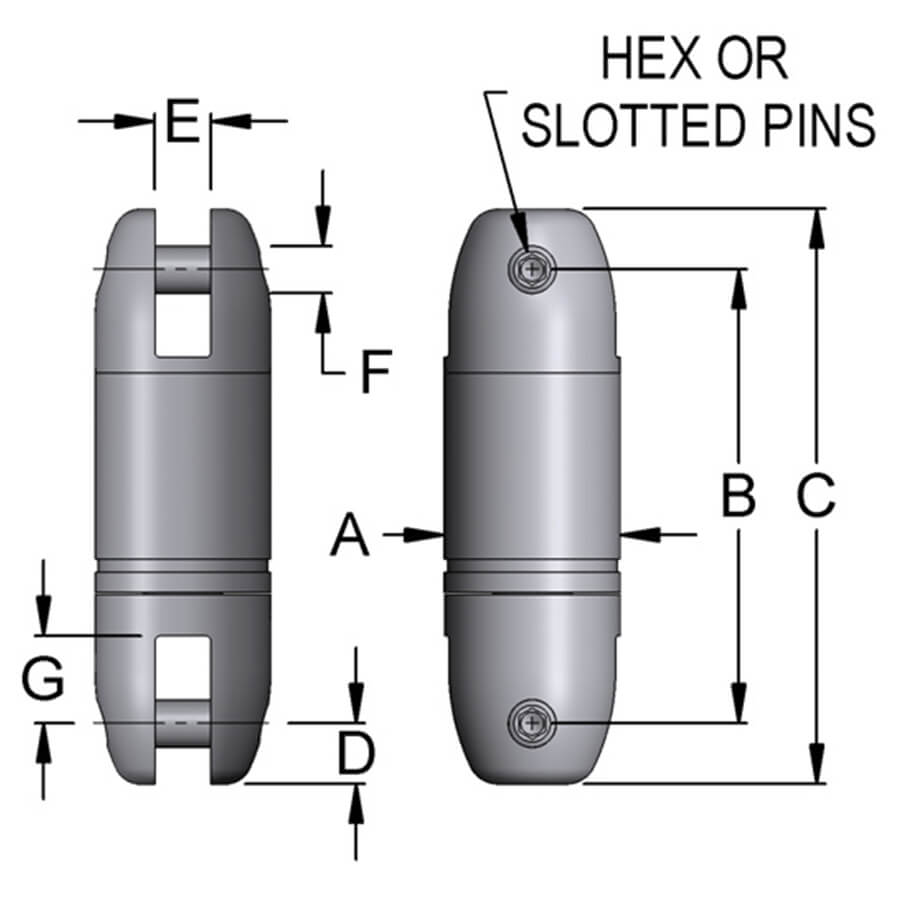

Model #
Hex Pin		 Model #
Slotted Pin		 WLL*
Lbs		 A B C D E F G Weight
Lbs.
A-13-L A-13-L-SL 1,800 .875 2.34 3.09 0.375 0.31 .31 0.47 0.38
BB-13-L BB-13-L-SL 4,000 1.25 3.66 4.34 0.44 0.59 .38 0.69 1
B-13-L B-13-L-SL 7,500 1.44 4 5.13 0.56 0.59 .44 0.81 1.38
C-13-L C-13-L-SL 10,000 1.875 5.44 7.06 0.81 0.75 .62 0.94 3.63
D-13-L D-13-L-SL 16,000 2.44 7.88 10.19 1.125 1 .88 1.56 8
EE-13-L N/A 25,000 2.875 9.81 12.31 1.25 1.28 1 2.13 15
D13-4BL N/A 30,000 2.5 8.91 11.16 1.125 1 .88 1.56 9
GG-13-L N/A 50,000 3.875 13.25 16.75 1.75 1.75 1.5 3.54 40
HH-13-L N/A 100,000 4.875 15.81 20.56 2.375 2 2 3.69 78

All swivel models A-13-L, BB-13-L and B-13-L are individually proof load tested to 100% of their working load limit as indicated by a green proof test marking.
Test certificates available.
Other sizes tested upon request.

These swivels are designed for straight line pulling and will not support side loads as would be encountered traveling over a bull wheel. Miller line stringing swivels are not intended for general lifting applications.
Swivel selection should be based on pulling line diameter, grip size, opening dimensions, pin sizes, working load, and sheave groove diameter. For general lifting applications, see Miller Y-Link and Miller Econo-Link Swivels.

  • Hex socket pins are standard. Optional slotted pins available for sizes A thru D.
  • Factory lubricated and sealed with neoprene seals.
  • 90° Connectors permit limited movement of connected cables in two perpendicular planes. Short, bullet shape accommodates passage though blocks. Mean Breaking Load up to 150,000 lbs.
  • Order spare pins by type (hex or slotted), and by model number of the swivel or connector. For example, “two hex pins for A-13-L” or “two slotted pins for B-13-L-SL”

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
