Lug-All Web Strap Winch-Hoist

Engineered for Reliable Operation

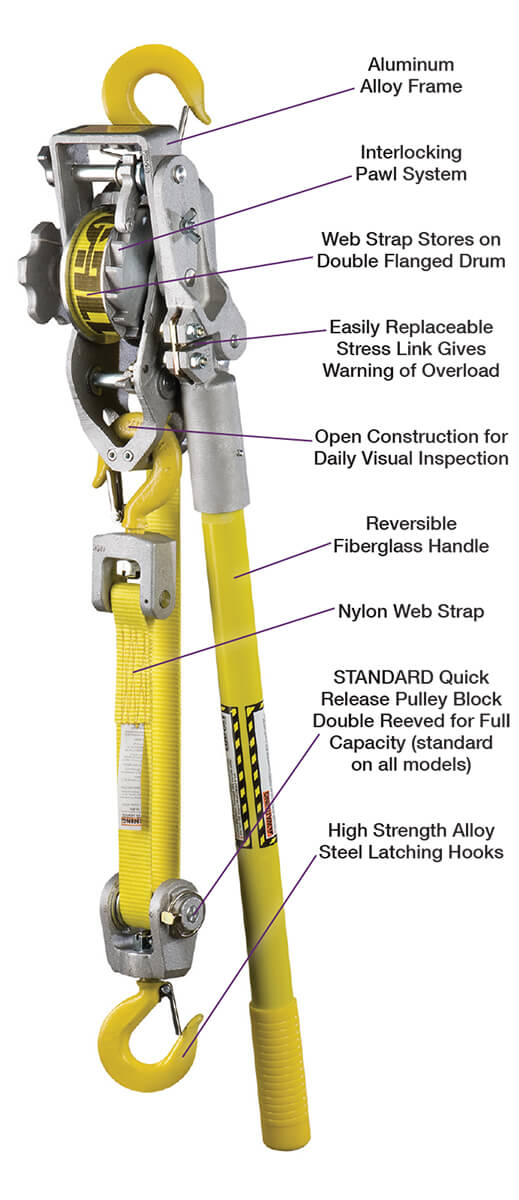

• Exclusive breakable stress link – signals the operator of an over load condition by breaking before the fiberglass handle breaks and/or load-carrying part of the hoist is overloaded.
• Double flanged drum – prevents web strap from coming in contact with ratchet teeth.
• Forged Hooks – with latches.

Positive Load Holding in All Environments
• Double interlocking pawl mechanism – No load brakes to slip or foul.

Ease of Operation
• Self-lubricating bearings – throughout housing and on the pulley assure smooth operation.
• Open frame construction – for cleaning and visual inspection.

Useful Cost-Effective Options
• Five hook styles – designed to meet your application requirements and work practice standards.

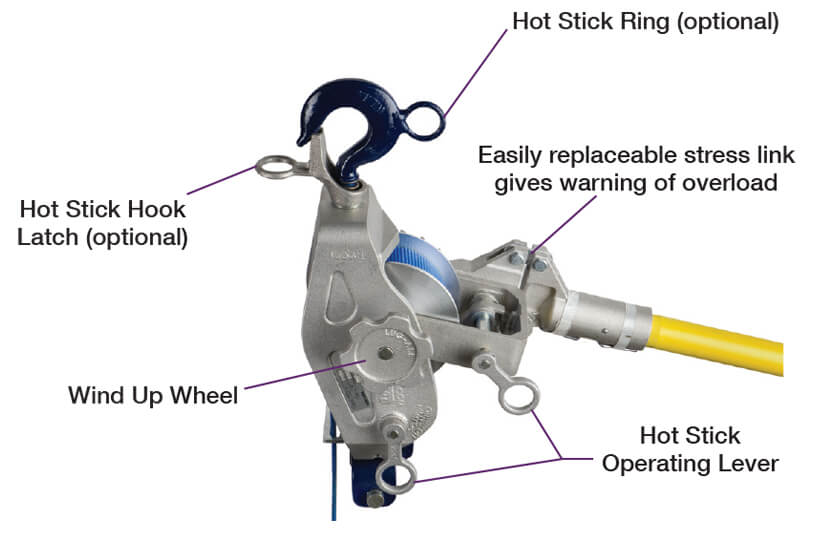

• Models equipped with hot stick levers, rings, and hot stick latches – for remote operation using approved hot line tools.

EMAIL PAGE

VIEW IN CATALOG

WARNINGS & CAUTIONS

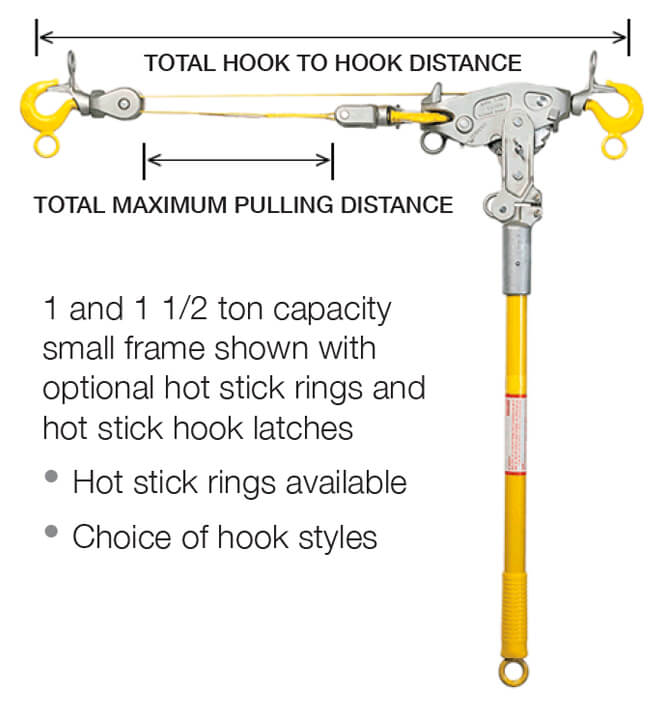

Model Number	Single Line Capacity Lb/Metric†	Single Line Hook To Hook Distance		Double Line Capacity Lb/Metric†	Double Line Hook To Hook Distance		Total Maximum Pulling Distance		Handle Length	Weight
Model Number	Single Line Capacity Lb/Metric†	Min.	Max	Double Line Capacity Lb/Metric†	Min.	Max	Single	Double	Handle Length	Weight
1 Ton Capacity
2 Latching Hooks	1000/455	1′-8″	10′-9″	2000/909	2′-3″	6′-2″	9′-1″	3′-11″	30″	10.75 lb.
2B Hot Stick Rings & Latching Hooks	1000/455	1′-8″	10′-9″	2000/909	2′-3″	6′-2″	9′-1″	3′-11″	30″	10.75 lb.
2U Gate Type Hooks	1000/455	1′-8″	10′-9″	2000/909	2′-3″	6′-2″	9′-1″	3′-11″	30″	12.5 lb.
2UB Gate Type Hooks And Hot Stick Rings	1000/455	1′-8″	10′-9″	2000/909	2′-3″	6′-2″	9′-1″	3′-11″	30″	13 lb.
2HB Hot Stick Rings & Hook Latches	1000/455	1′-8″	10′-9″	2000/909	2′-3″	6′-2″	9′-1″	3′-11″	30″	11.25 lb.
1 1/2 Ton Capacity – Small Frame
2010920111 Latching Hooks	1500/682	1′-11″	9′-1″	3000/1363	2′-1″	5′-4″	7′-2″	3′-3″	20″	10.25 lb.
2010920109 Hot Stick Rings & Latching Hooks	1500/682	1′-11″	9′-1″	3000/1363	2′-1″	5′-4″	7′-2″	3′-3″	20″	10.25 lb.
2010930118 Gate Type Hooks	1500/682	1′-11″	9′-1″	3000/1363	2′-1″	5′-4″	7′-2″	3′-3″	20″	12 lb.
2010930120 Gate Type Hooks & Hot Stick Rings	1500/682	1′-11″	9′-1″	3000/1363	2′-1″	5′-4″	7′-2″	3′-3″	20″	12 lb.
2010930137 Hot Stick Rings & Hook Latches	1500/682	1′-11″	9′-1″	3000/1363	2′-1″	5′-4″	7′-2″	3′-3″	20″	10.25 lb.

† Metric capacities shown are exact equivalents of U.S Domestic Ratings.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
