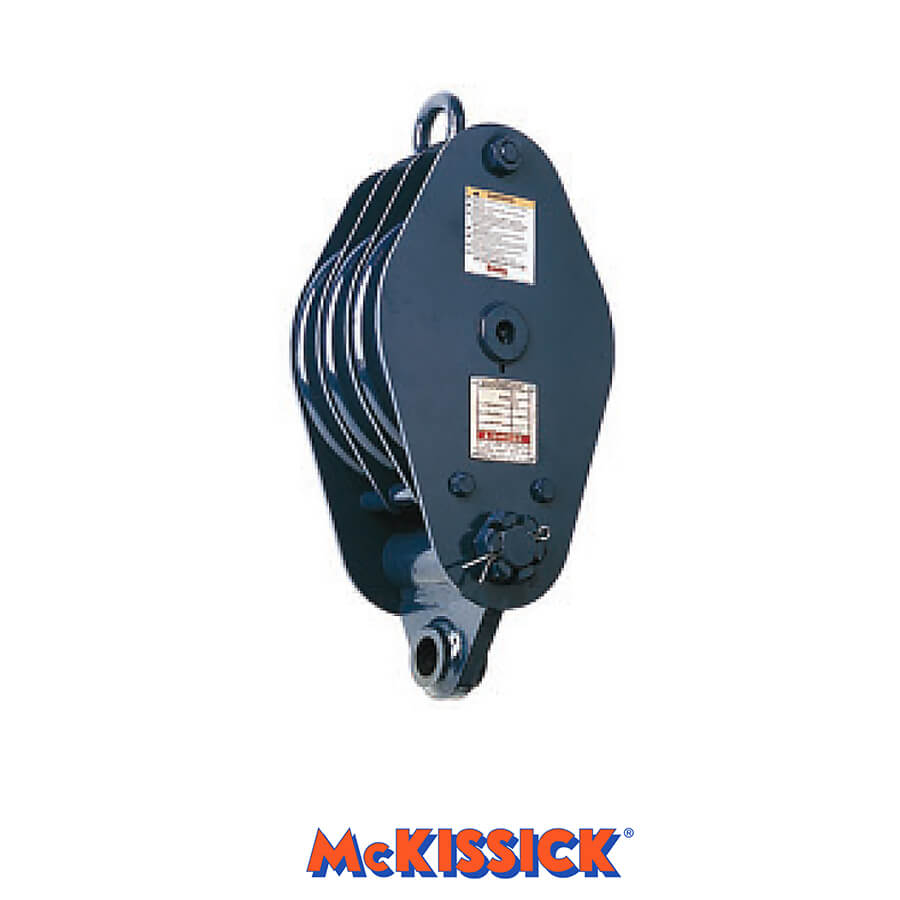

5 Tons Section Only
| CERTEX Cat. Ref. No. | McKissick Model No. | Inquiry Stock No. | Working Load Limit (tons) | No. of Sheaves | Sheave Diam. (in.) | Blocks with Hanger – Dimensions | Weight Each (lbs.) | ||||||||||||
| A | E | F | G | H | I | L | M | N | O | P | Q | X | |||||||
| CX13-0806 | C5S6BH | 2102000 | 5 | 1 | 6 | 15.00 | 2.28 | 6.12 | — | — | — | 1.63 | 1.25 | 1.06 | 1.16 | 3.25 | 1.86 | — | 22 |
| CX13-0807 | C5S8BH | 2102002 | 5 | 1 | 8 | 16.88 | 2.28 | 8.12 | — | — | — | 1.63 | 1.25 | 1.06 | 1.16 | 3.25 | 1.86 | — | 34 |
| CX13-0808 | C5D6BH | 2102010 | 5 | 2 | 6 | 17.62 | 4.31 | 6.12 | .63 | .69 | .84 | 1.63 | 1.25 | 1.06 | 1.16 | 3.25 | 2.25 | 2.03 | 37 |
| CX13-0809 | C5D8BH | 2102012 | 5 | 2 | 8 | 19.50 | 4.31 | 8.12 | .63 | .69 | .84 | 1.63 | 1.25 | 1.06 | 1.16 | 3.25 | 2.25 | 2.03 | 58 |
| CX13-0810 | C5T6BH | 2102020 | 5 | 3 | 6 | 17.62 | 6.34 | 6.12 | .63 | .69 | .84 | 1.63 | 1.25 | 1.06 | 1.16 | 3.25 | 2.25 | 2.03 | 51 |
| CX13-0811 | C5T8BH | 2102022 | 5 | 3 | 8 | 19.50 | 6.34 | 8.12 | .63 | .69 | .84 | 1.63 | 1.25 | 1.06 | 1.16 | 3.25 | 2.25 | 2.03 | 81 |
Other Sizes Available by Request.
Options Available
