Modulift MOD 400/500 Spreader Beam

Modulift MOD 400/500 Spreader Beam

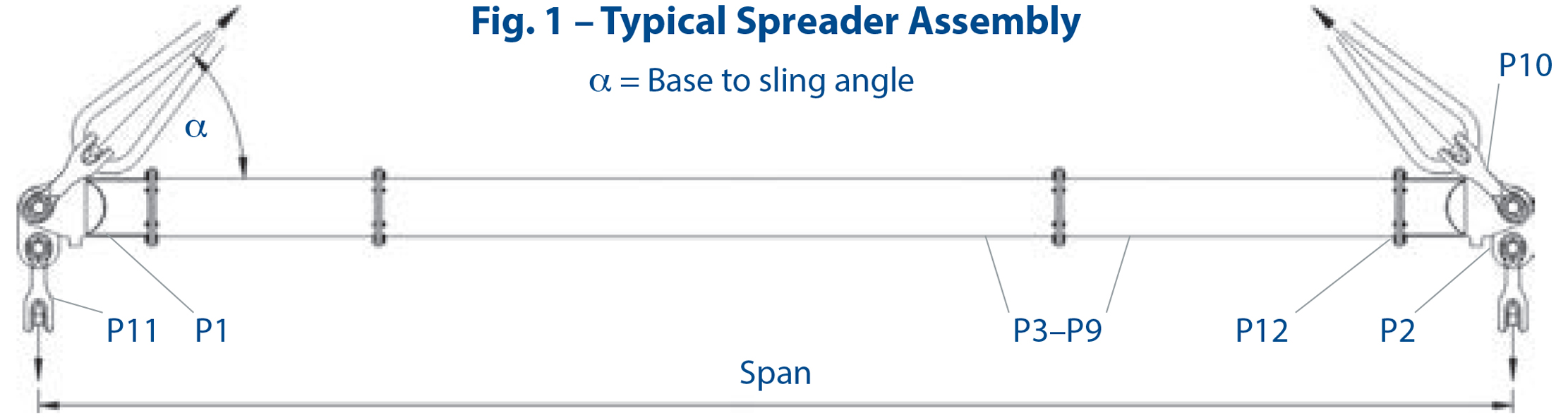

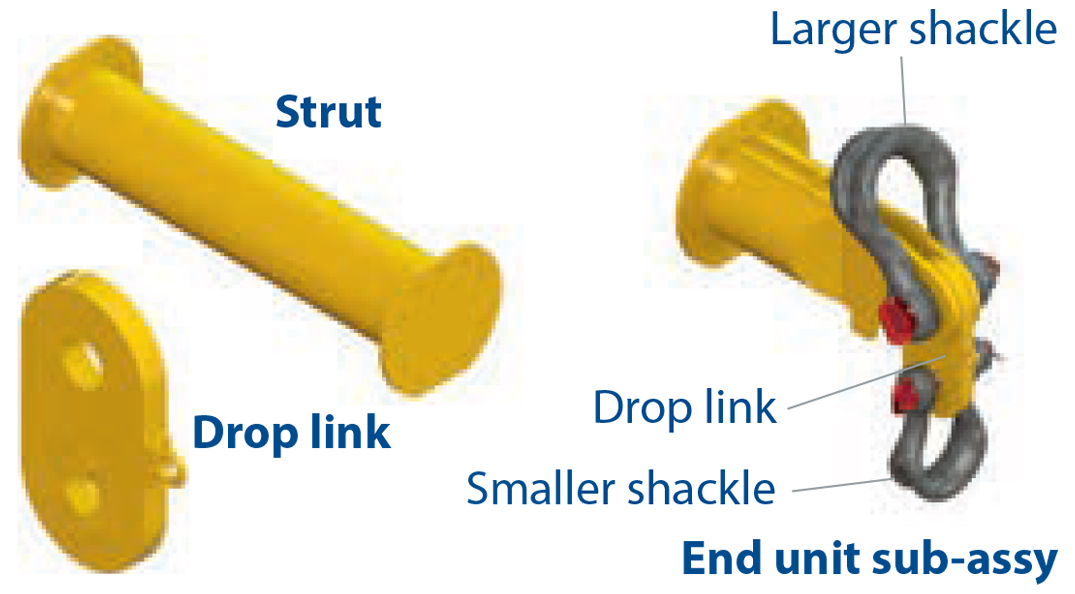

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 400/500 has an assembled span ranging from 6ft to 78ft in 1ft increments


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
  • Rated at 500 tonnes SWL at 40ft span
    (60° BSA). See Load Table for SWL at longer spans.
  • ‘Base to Sling’ angle, α, 45 degrees or more
  • End Units & Drop Links are rated at 250 tonnes WLL each (500 tonnes combined capacity)
  • Bolt tightening torque: 184 Pound-Foot. Spanner size required: 36mm.
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.



Part Ref. Description Weight/item
P1 End Unit 1085 lbs
P2 Drop Link 331 lbs
P3 20ft Strut 3049 lbs
P4 10ft Strut 1744 lbs
P5 5ft Strut 1094 lbs
P6 4ft Strut 963 lbs
P7 3ft Strut 832 lbs
P8 2ft Strut 701 lbs
P9 1ft Strut 571 lbs
P10 300t Wide Body Shackle 794 lbs
P11 250t Wide Body Shackle 582 lbs
P12 M24 x 90 Grade 8.8 HT Bolts*, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances hang load(s) from the tube or anges – the spreader is designed for
axial compression, not bending
