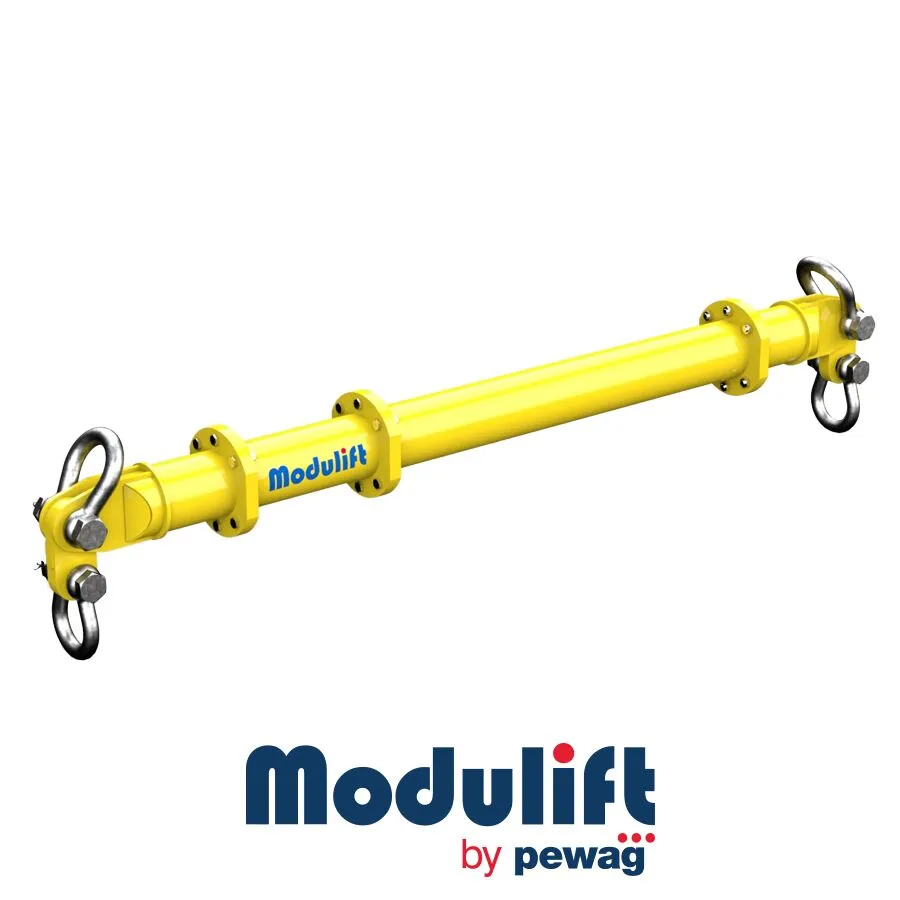

Modulift MOD 50 Spreader Beam

Modulift MOD 50 Spreader Beam

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 50 has an assembled span ranging from 3ft to 42ft in 1ft increments.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

  • Rated at 50 tonnes SWL at 21ft span
    (60° BSA). See Load Table for SWL at longer spans.
  • ‘Base to Sling’ angle, α, 45 degrees or more.
  • End Units & Drop Links are rated at 25 tonnes WLL each (50 tonnes combined capacity).
  • Bolt tightening torque: 110 Pound-Foot. Spanner size required: 30mm.
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner

Part Ref. Description Weight/item
P1 End Unit 84 lbs
P2 Drop Link 24 lbs
P3 12ft Strut 285 lbs
P4 6ft Strut 168 lbs
P5 3ft Strut 109 lbs
P6 2ft Strut 90 lbs
P7 1ft Strut 70 lbs
P8 35t Shackle 44 lbs
P9 25t Shackle 31 lbs
P10 M20 x 65, Grade 8.8, HT Bolts, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances hang load(s) from the tube or anges – the spreader is designed for
axial compression, not bending.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
