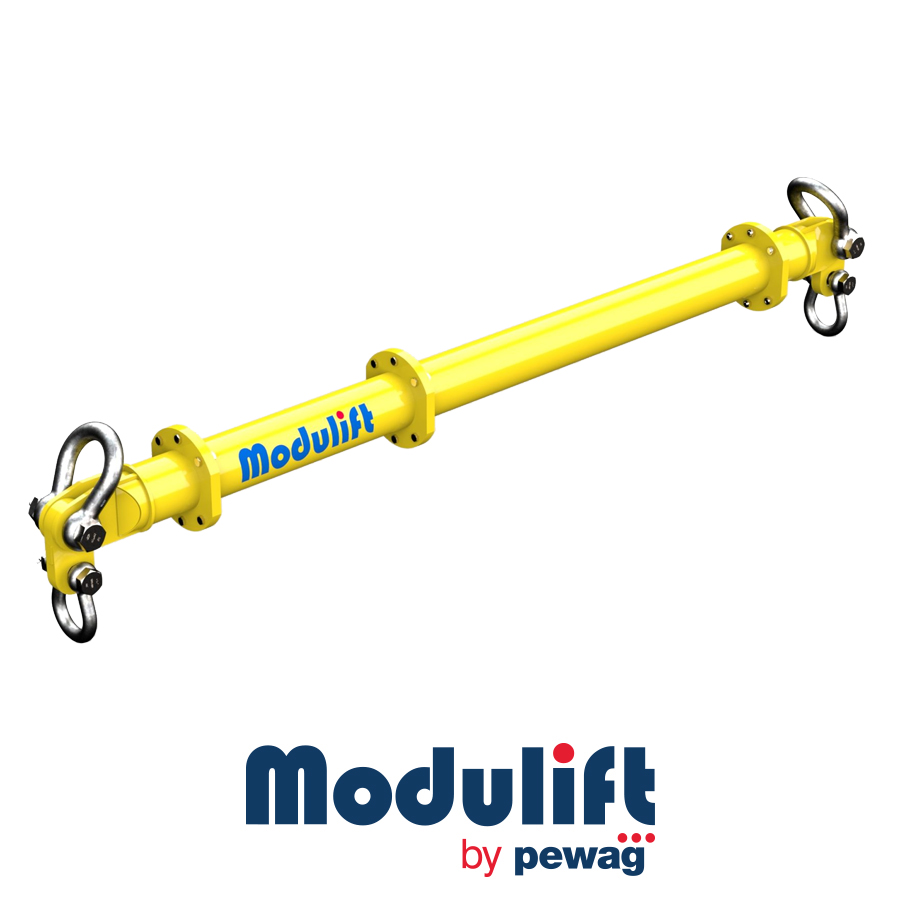

Modulift MOD 70H Spreader Beam

Modulift MOD 70H Spreader Beam

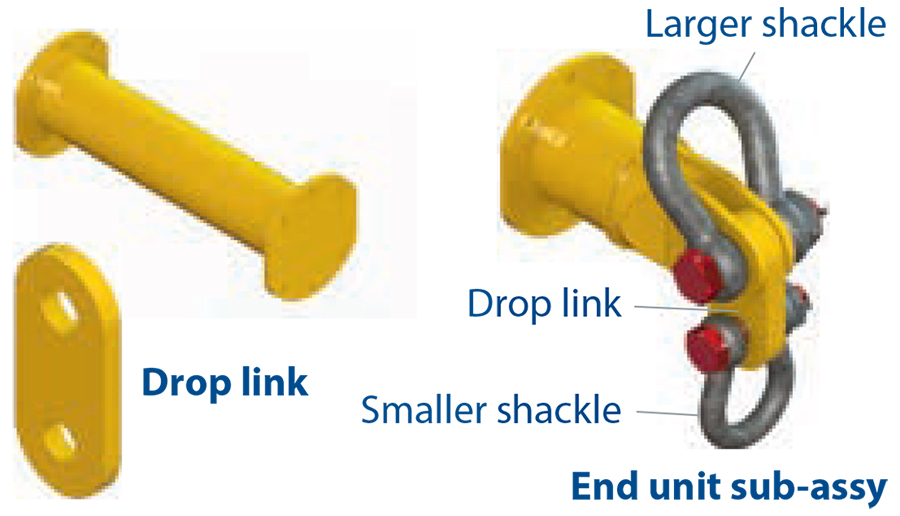

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 70H has an assembled span ranging from 3ft to 45ft in 1ft increments.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

  • Rated at 100 tonnes SWL at 23ft span
    (60° BSA). See Load Table for SWL at longer spans.
  • ‘Base to Sling’ angle, α, 45 degrees or more.
  • End Units & Drop Links are rated at 50 tonnes WLL each (100 tonnes combined capacity).
  • Bolt tightening torque: 110 Pound-Foot. Spanner size required: 30mm.
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner

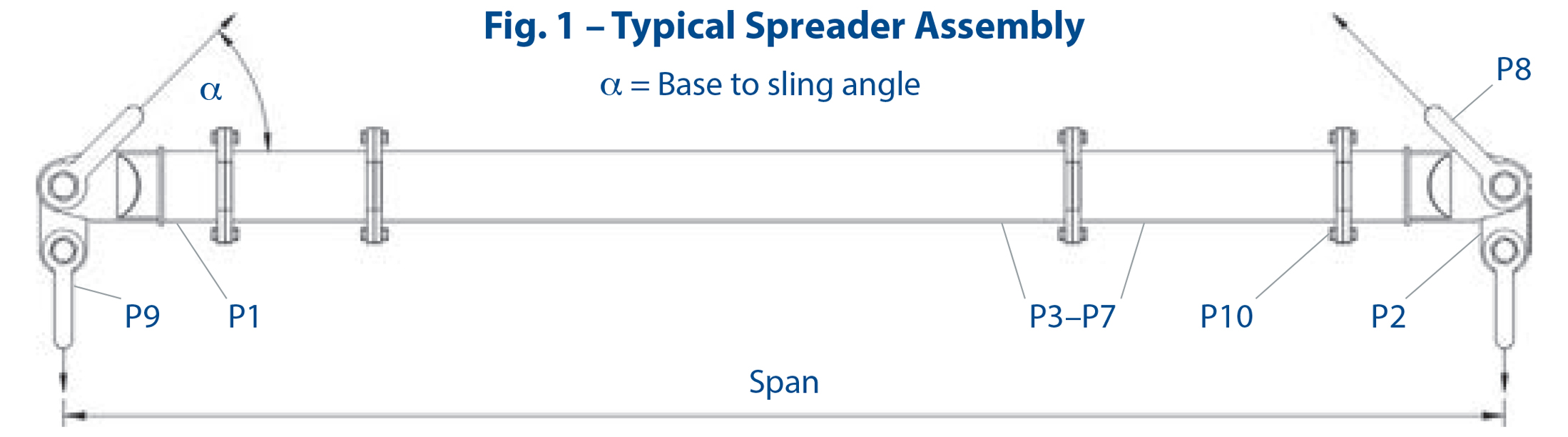

Part Ref. Description Weight/item
P1 End Unit 123 lbs
P2 Drop Link 71 lbs
P3 12ft Strut 487 lbs
P4 6ft Strut 279 lbs
P5 4ft Strut 209 lbs
P6 2ft Strut 140 lbs
P7 1ft Strut 105 lbs
P8 85t Shackle 137 lbs
P9 55t Shackle 87 lbs
P10 M20 x 65, Grade 8.8 HT Bolts, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances hang load(s) from the tube or flanges – the spreader is designed for
axial compression, not bending.
