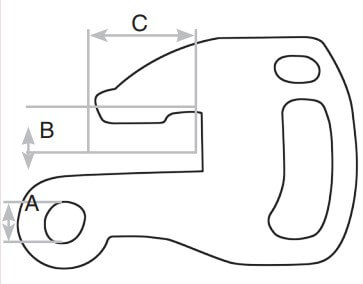

| NUMBER | A | B | C | ROPE SIZE | WORKING LOAD LIMIT | WEIGHT (LBS.) |
|---|---|---|---|---|---|---|
| 2 | 1 1/4” | 1” | 3 1/4” | 3/8” – 5/8” | 8,500 | 8.5 |
| 3 | 1 1/4” | 2” | 3 1/4” | 3/8” – 5/8” | 7,500 | 10.5 |
Note: Working loads shown in table are based on slings using two pipe hooks.

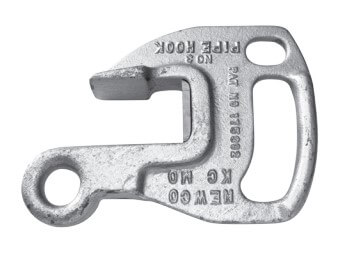

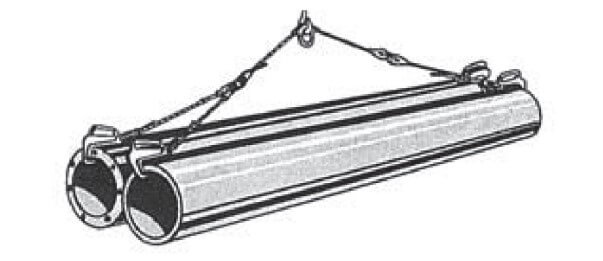

Ease the job of handling pipe. Pipe hooks speed up loading or unloading of pipe sections, or the moving of pipe when placing pipe into position for connecting or welding.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
Model NM Locking, Screw Type The Model NM clamp (non-marring) is manufactured with smooth gripping surfaces to prevent marring when gripping stainless steel, copper, aluminum and other polished metal plates. Due to the variety of conditions that may exist in handling...
Model SCP Locking, Screw Type The Model SCP clamp is capable of handling steel plate from horizontal to vertical to horizontal through a 180° arc and may be used for handling plate a trolling and forming machines. These clamps feature a spring loaded pivoting cam jaw...
Model LJ Locking Type Model LJ is a vertical lifting clamp capable of turning a plate from horizontal to vertical and back through the same 90° arc. It is small and easy to handle in capacities through three tons. The Model LJ incorporates a “Lock Closed” feature,...
Model BD Non-Locking Type The Model BD is a vertical lifting, non-locking clamp used primarily for steel warehousing and bench work where a locking type clamp is not essential. The clamp is a low-cost, low-maintenance tool that features lightweight and compact size....
