| CERTEX Cat. Ref. No | Type/Size | Std. Color | Approx. Dia./Inch | Approx. Wt./Foot | Rated Capacities | ||
|---|---|---|---|---|---|---|---|
| Vertical | Choker | Basket | |||||
| CX08-0002 | URT1 | PURPLE | 0.60 | 0.30 | 2600 | 2100 | 5200 |
| CX08-0004 | URT2 | GREEN | 0.80 | 0.40 | 5300 | 4200 | 10600 |
| CX08-0006 | URT3 | YELLOW | 1.00 | 0.50 | 8400 | 6700 | 16800 |
| CX08-0008 | URT4 | TAN | 1.20 | 0.60 | 10600 | 8500 | 21200 |
| CX08-0010 | URT5 | RED | 1.30 | 0.80 | 13200 | 10600 | 26400 |
| CX08-0012 | URT6 | WHITE | 1.40 | 0.90 | 16800 | 13400 | 33600 |
| CX08-0014 | URT7 | BLUE | 1.55 | 1.20 | 21200 | 17000 | 42400 |
| CX08-0016 | URT8 | ORANGE | 1.75 | 1.50 | 25000 | 20000 | 50000 |
| CX08-0018 | URT9 | ORANGE | 1.95 | 2.00 | 31000 | 24800 | 62000 |
| CX08-0019 | URT10 | ORANGE | 2.35 | 2.80 | 40000 | 32000 | 80000 |
| CX08-0020 | URT11 | ORANGE | 3.15 | 3.60 | 53000 | 42400 | 106000 |
| CX08-0021 | URT12 | ORANGE | 3.95 | 4.60 | 66000 | 52800 | 132000 |
| CX08-0022 | URT13 | ORANGE | 4.80 | 5.80 | 90000 | 72000 | 180000 |
Types – URS are sideseam double polyester covers.
URT are tubular double polyester covers.
Other cover types available on request.
 |  |  |
 • The double cover gives more than 40% longer service life. |  • Roundslings are gentle to the product being handled. |
Rated capacities are affected by angle of lift (roundsling to load angle) measured from the horizontal when used with multi-legged roundslings or choker/basket hitches. To determine the actual capacity at a given angle of lift, multiply the original roundsling rating by the appropriate loss factor determined from the table below.
| Table II: Sling Angle Chart (Angle of Lift) | |||
| Angle/Degrees Horizontal | Factor | Angle/Degrees | Factor |
| 90 | 1.000 | 55 | 0.819 |
| 85 | 0.996 | 50 | 0.766 |
| 80 | 0.985 | 45 | 0.707 |
| 75 | 0.966 | 40 | 0.643 |
| 70 | 0.940 | 35 | 0.574 |
| 65 | 0.906 | 30 | 0.500 |

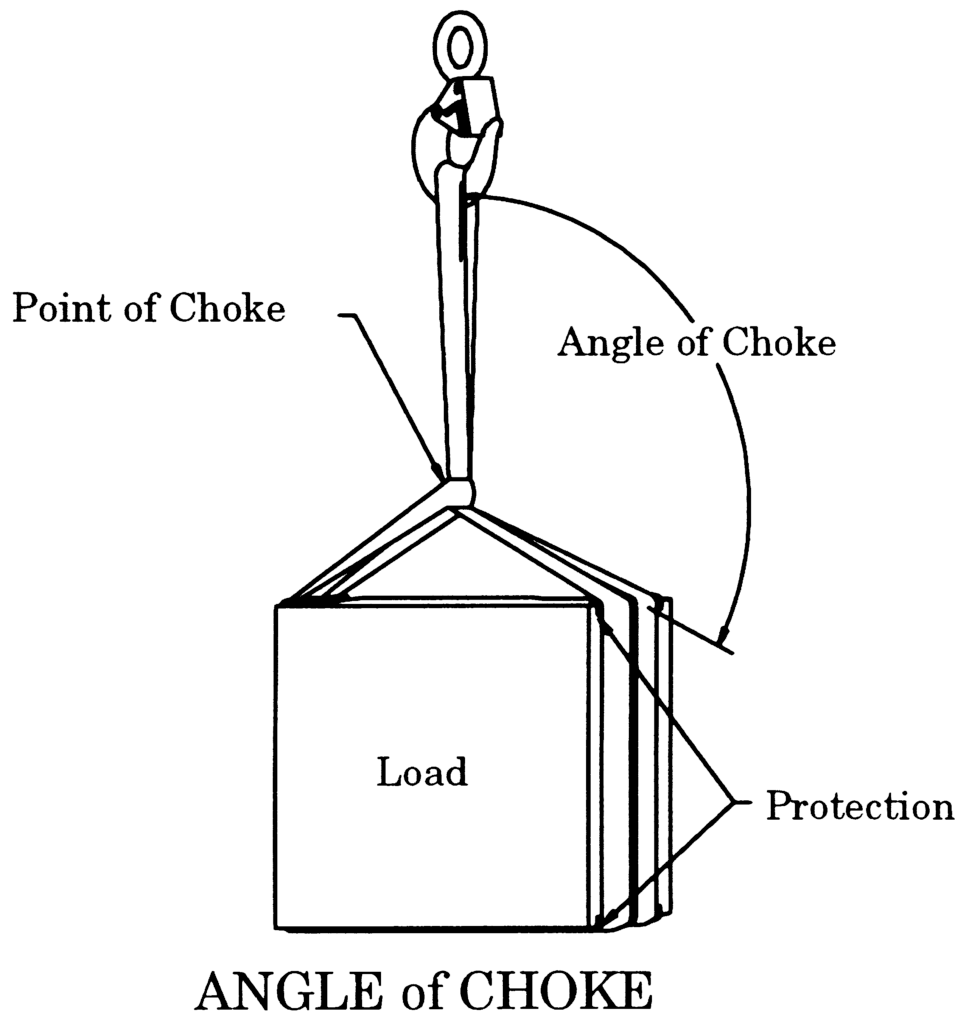

| Rated Capacity of Choker Hitch | |
| Angle of Choke (degrees) | Sling Rated Load Factor |
| 120 – 180 | 1.00 |
| 105 – 120 | 0.93 |
| 90 – 105 | 0.87 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
