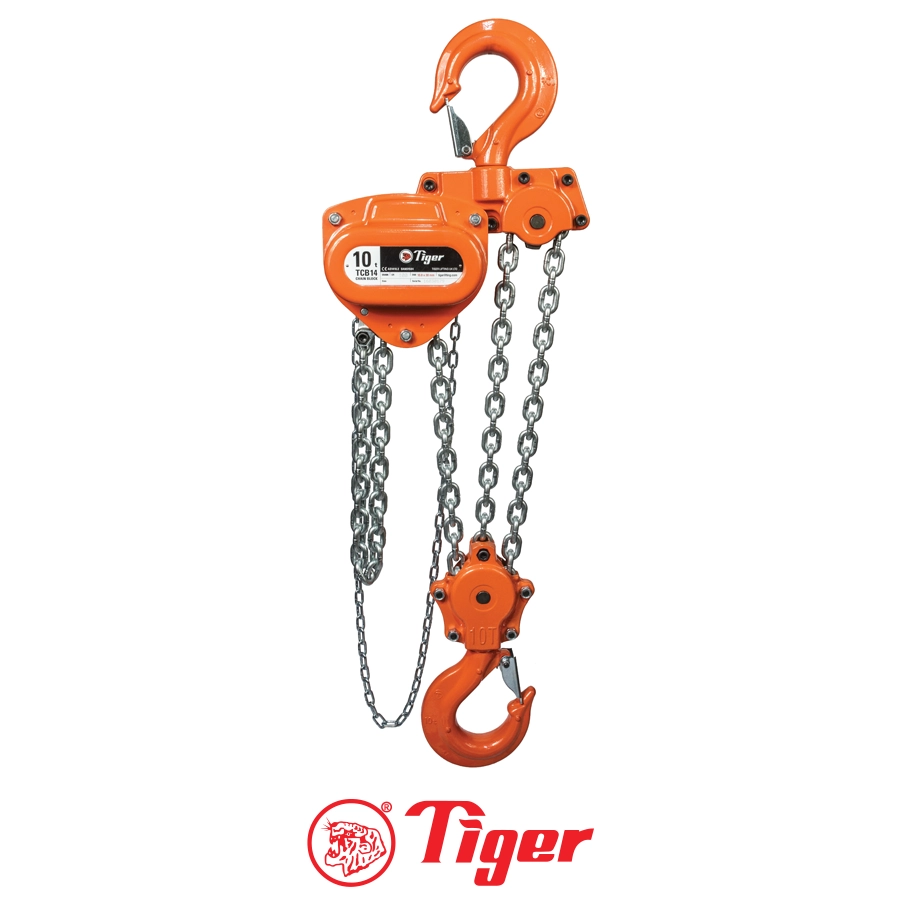

Tiger PROCB (TCB) Professional Chain Block

Tiger PROCB (TCB) Professional Chain Block
  • DNV GL Verification tested according to NORSOK R-002
  • Range from 250kg – 35.0t
  • Available with slipping clutch overload protection
  • Tested and certified for “fleeting”, “drifting” and “cross-hauling” applications up to 60° from the vertical without deration
  • Available with forged clevis adaptor components
  • Patented Quad Cam Pawl System
  • Certified 2% light load protection
  • Rugged steel body construction yet lightweight and portable
  • Double cover protection for brake chamber

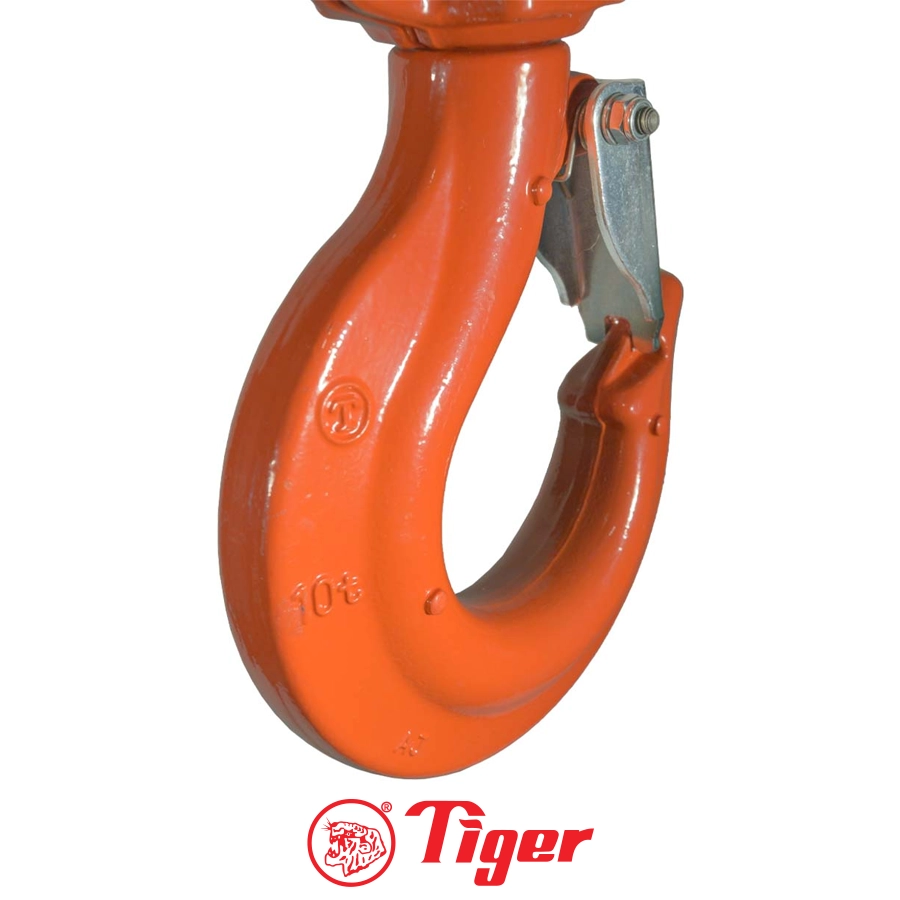

  • Drop forged & heat-treated alloy hooks
  • High quality alloy calibrated load chain
  • Heat treated alloy steel triple spur gears and pinion shaft
  • Operating temperature of -40°C to +80°C
  • Proof tested to 1.5 times rated capacity
  • Can be chained to any height of lift to meet your exact requirements
  • Individual spares readily available
  • Suitable for underground mining use
  • Also available with stainless steel load chain – any capacity over 1t deration will apply
  • Available with load bearing swivel hooks to meet relevant standards e.g. AS 1418.2
  • Meets or exceeds all international standards

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER CAPACITY (tonne) EFFORT (kg) LOAD CHAIN DIAMETER (mm) LOAD CHAIN NO. OF FALLS STANDARD HOL (m) MASS Kg @ STD HOL MASS FOR EXTRA METRE HOL (kg)
CB-0025 0.25 17 4.0 1 3 3.8 0.5
CB-0050 0.5 21 6.3 1 3 10.5 1.9
CB-0100 1.0 25 6.3 1 3 11.5 1.9
CB-0150 1.5 32 7.1 1 3 16.0 2.1
CB-0200 2.0 34 8.0 1 3 20.0 2.4
CB-020L 2.0 42 7.1 1 3 16.5 2.1
CB-0300 3.0 38 10.0 1 3 30.5 3.2
CB-030T 3.0 34 7.1 2 3 23.0 3.2
CB-0500 5.0 37 8.0 3 3 37.5 5.2
CB-0600 6.0 38 10.0 2 3 45.5 5.3
CB-0800 8.0 34 10.0 3 3 61.0 7.5
CB-1000 10.0 40 10.0 3 3 64.0 7.5
CB-1500 15.0 41 10.0 5 3 128.5 11.8
CB-2000 20.0 43 10.0 6 3 178.5 14.2
CB-200T 20.0 43 10.0 6 3 210.5 15.2
CB-3000 30.0 42 10.0 10 3 307.0 23.8
CB-3500 35.0 40 10.0 12 3 365.0 27.0

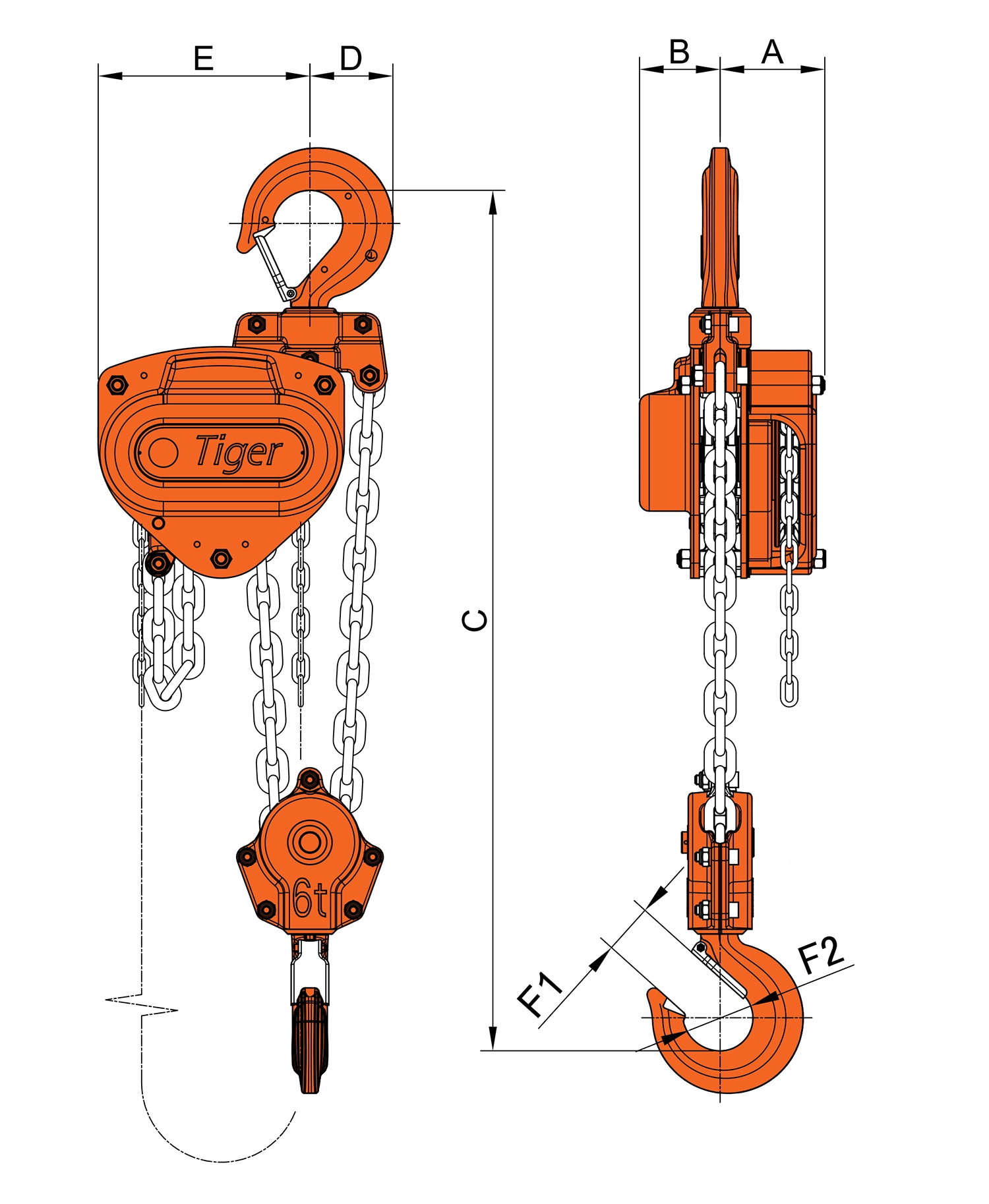

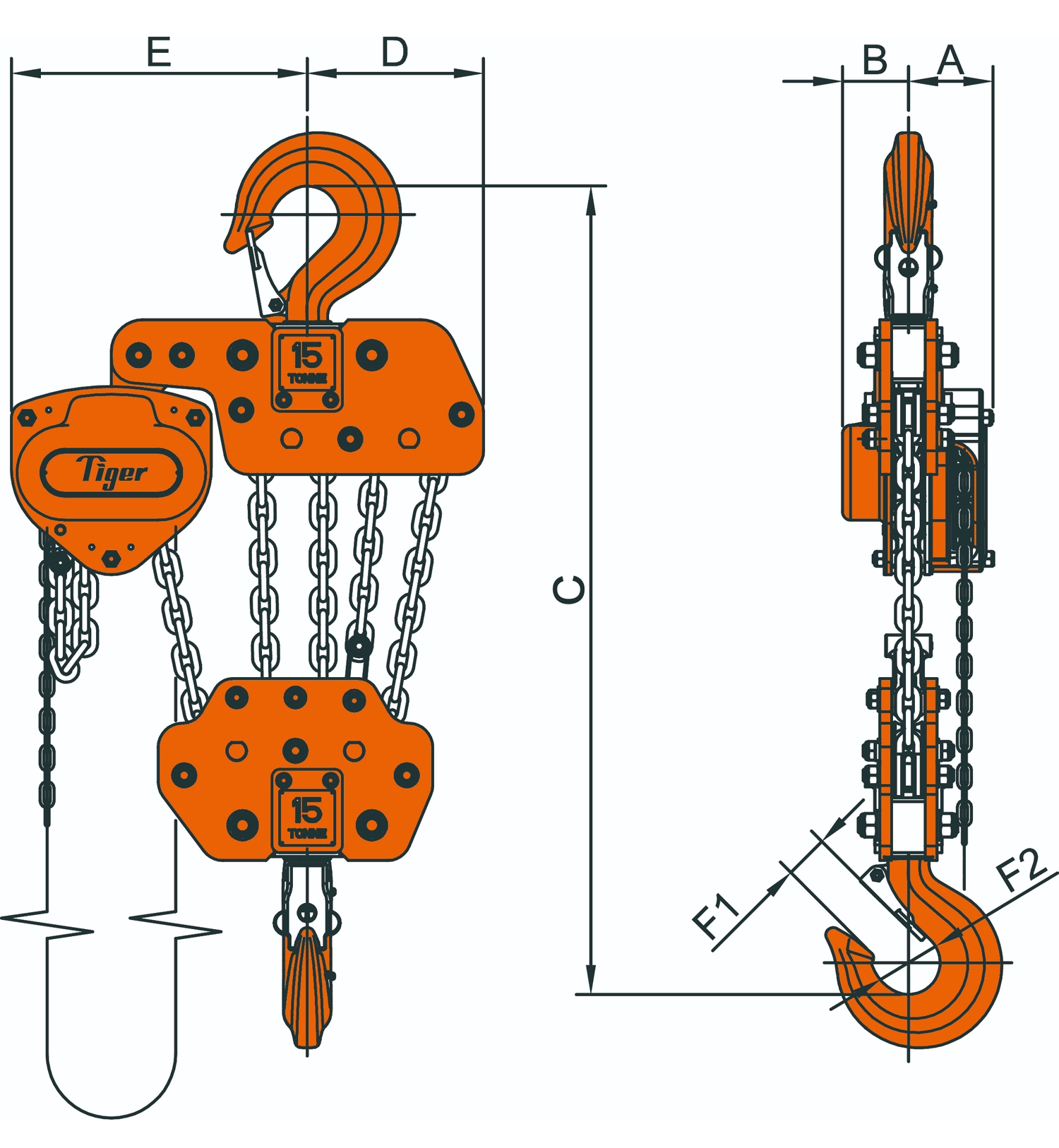

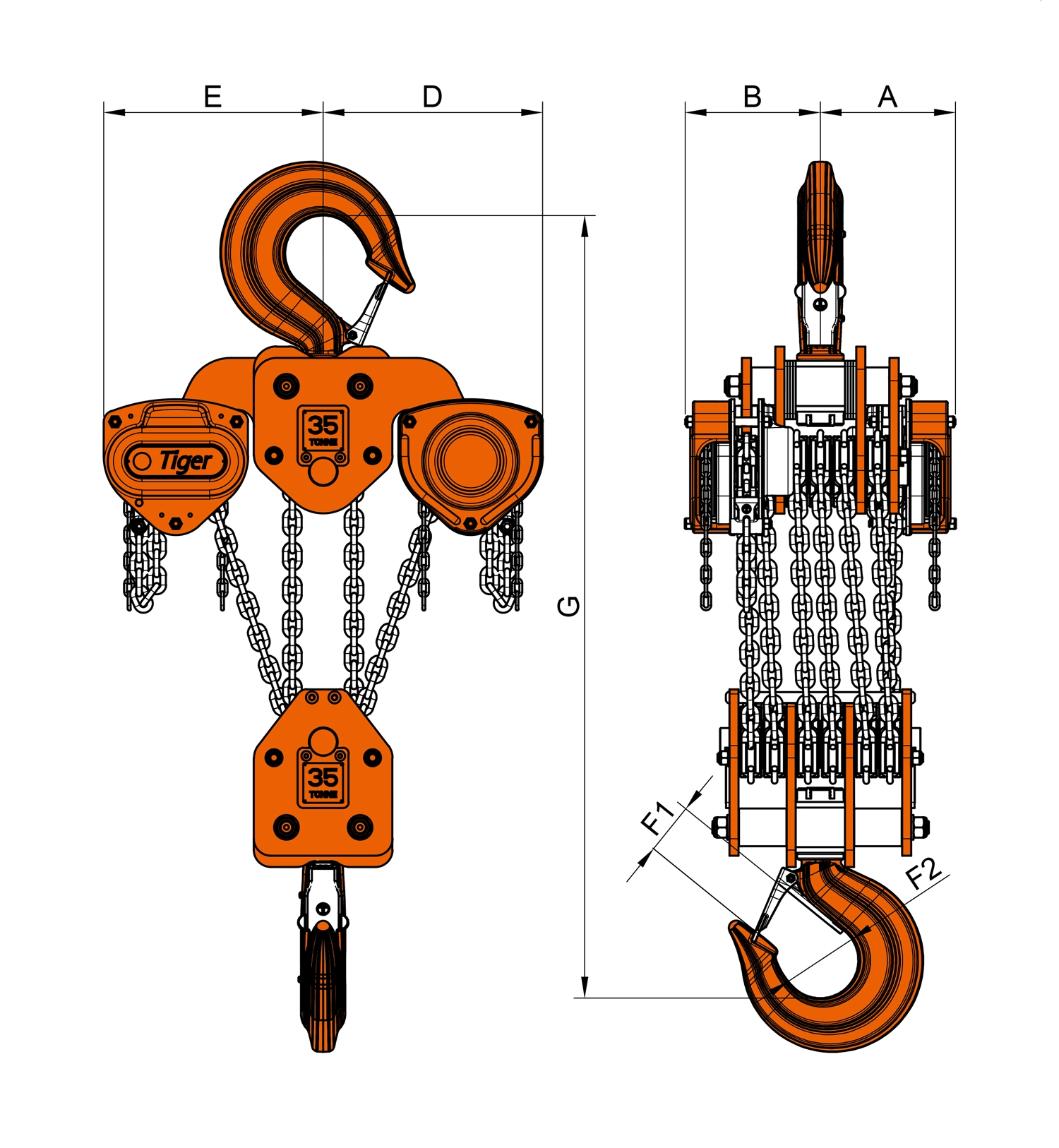

STOCK NUMBER DIMENSIONS
A B C D E F1 F2
CB-0025 64 40 240 36 60 22 31
CB-0050 93 66 305 52 78 24 38
CB-0100 93 66 340 63 87 28 45
CB-0150 98 73 385 78 102 34 51
CB-0200 101 79 420 87 113 35 53
CB-020L 98 73 399 78 102 35 53
CB-0300 109 84 500 98 157 36 56
CB-030T 98 73 488 60 148 36 56
CB-0500 101 79 575 122 209 49 70
CB-0600 109 84 635 86 220 49 70
CB-0800 109 84 610 153 263 51 78
CB-1000 109 84 660 153 263 54 87
CB-1500 109 84 840 225 378 59 81
CB-2000 161 90 1050 148 360 81 110
CB-200T 161 161 1050 383 383 81 110
CB-3000 220 220 1200 388 388 91 135
CB-3500 240 240 1200 390 390 91 135

Stock Number Capacity (Tonne) Collar Measurements (mm) Hook Thickness at Point Shown In Diagram (mm) Hook Throat Opening (mm) “EZ Check” Measurement (mm)
A B C D E F
CB-0025 0.25 5 8 18 12 26 43
CB-0050 0.5 8 13.5 19 15 29 47
CB-0100 1.0 8 13.5 23 17 34 52
CB-0150 1.5 10 15.5 26 21 39 59
CB-0200/020L 2.0 9 17.5 30 22 42 64
CB-0300/030T 3.0 12.5 20 37 32 42 76
CB-0500/0600 5.0/6.0 19 30 43 36 57 86
CB-0800 8.0 20.7 33 50 43 60 110
CB-1000 10.0 20 33 52 48 70 121
CB-1500 15.0 N/A 36 67 60 65 130
CB-2000/200T 20.0 N/A 48 77 72 90 162
CB-3000/3500 30.0/35.0 N/A 56 94 78 101 177

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
