Renfroe Model BD

Renfroe Model BD

Model BD Non-Locking Type

The Model BD is a vertical lifting, non-locking clamp used primarily for steel warehousing and bench work where a locking type clamp is not essential. The clamp is a low-cost, low-maintenance tool that features lightweight and compact size. It is recommended for use and application where constant tension is applied to the lifting shackle throughout the entire operation.

Product Features

  • Ergonomic lightweight design & compact size
  • Vertical non-locking clamp for steel warehousing & bench work
  • Recommended for use where constant tension is applied to the lifting shackle
  • Lower cost & low maintenance design

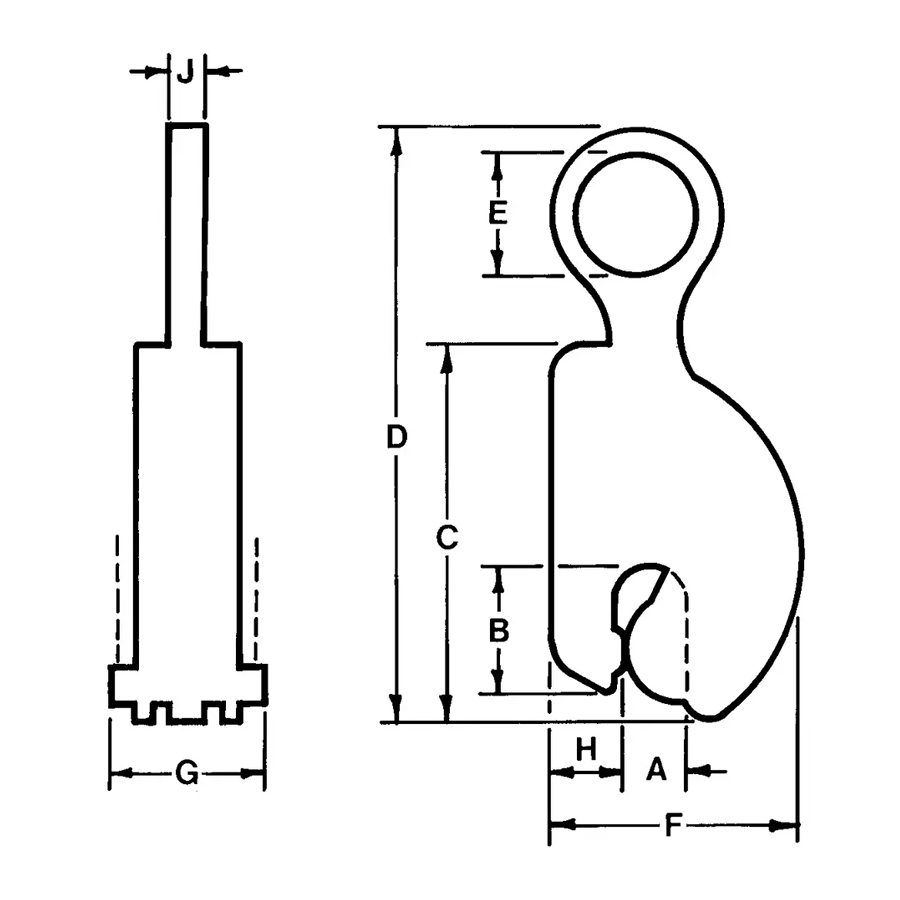

Model Number Capacity (tons) Shackle Hole Dia (in.) Weight (lbs.) Clamp Height (in.) Clamp Length (in.) Clamp Width (in.) Jaw Height (in.) Jaw Length (in.) Overall Length (in.) Max Plate Thickness (in.) Shackle Thick (in.) In Stock Price
BD-00.50-A 0.5 1.75 6 4.5 6.31 2.25 1.38 2.56 10.38 1 0.5 $
BD-01.00-A 1 2.5 11 5.56 7.31 2.88 1.62 3.06 12.75 1.12 0.62 $
BD-02.00-A 2 3.12 16 6.56 8.06 3 2.25 3.56 14.5 1.38 0.62 $
BD-04.00-A 4 3.12 27 7.44 10.75 3.88 2.25 3.88 17.75 1.75 0.75 $
BD-07.00-A 7 3.88 65 9.62 12.75 5 3 5 22.5 2.5 1 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
