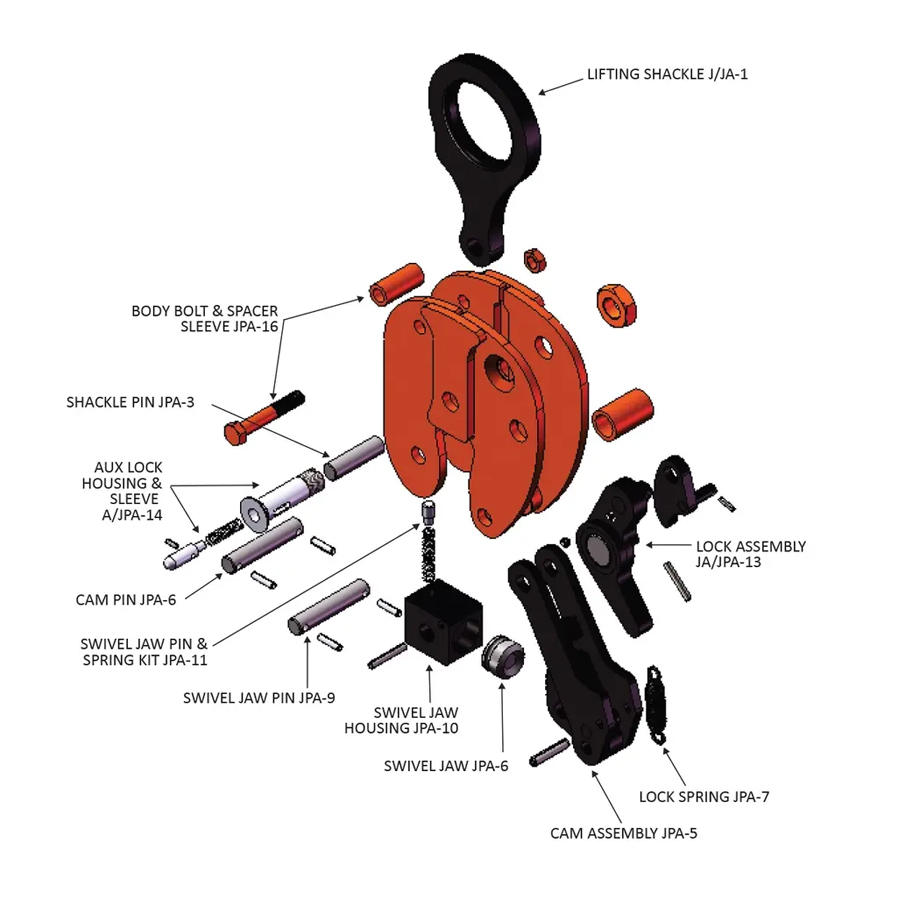

The Model JA is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180° arc. Incorporates a push button auxiliary lock.
Product Features

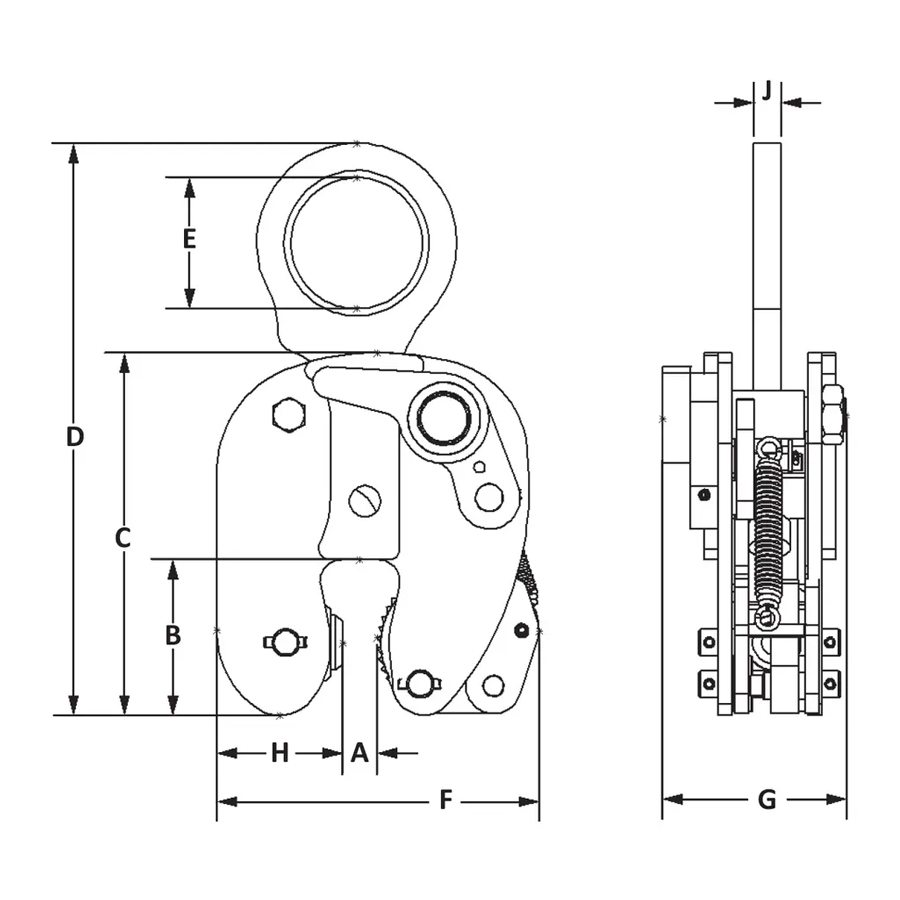

| Model Number | Capacity (tons | Weight (lbs.) | Clamp Body Length (in.) | Clamp Body Width (in.) | Jaw Height (in.) | Jaw Length (in.) | Overall Clamp Height (in.) | Overall Length (in.) | Max Plate Thickness (in.) | Min Plate Thickness (in.) | Shackle Open (in.) | Shackle Thick (in.) | In Stock | Price |
| JA-00.50-A | 0.5 | 10 | 6.5 | 3.25 | 2.25 | 2.75 | 5.62 | 12 | 0.62 | 0 | 2.38 | 0.5 | ❌ | $ |
| JA-00.50-B | 0.5 | 15 | 7.75 | 3.25 | 2.62 | 3.38 | 6 | 13.75 | 1 | 0.5 | 2.62 | 0.62 | ❌ | $ |
| JA-00.50-C | 0.5 | 10 | 6.5 | 3.25 | 2.25 | 2.75 | 6.25 | 12 | 1.25 | 0.75 | 2.38 | 0.5 | ❌ | $ |
| JA-00.50-D | 0.5 | 10 | 6.5 | 3.25 | 2.25 | 2.75 | 6.75 | 12 | 1.75 | 1.25 | 2.38 | 0.5 | ❌ | $ |
| JA-01.00-A | 1 | 15 | 7.75 | 3.5 | 2.62 | 3.38 | 7 | 13.75 | 0.75 | 0 | 2.62 | 0.62 | ❌ | $ |
| JA-01.00-B | 1 | 15 | 7.75 | 3.5 | 2.62 | 3.38 | 7.25 | 13.75 | 1 | 0.5 | 2.62 | 0.62 | ❌ | $ |
| JA-01.00-C | 1 | 15 | 7.75 | 3.5 | 2.62 | 3.38 | 8 | 13.75 | 1.25 | 0.75 | 2.62 | 0.62 | ❌ | $ |
| JA-01.00-D | 1 | 15 | 7.75 | 3.5 | 2.62 | 3.38 | 8.25 | 13.75 | 1.5 | 1 | 2.62 | 0.62 | ❌ | $ |
| JA-01.00-E | 1 | 15 | 7.75 | 3.5 | 2.62 | 3.38 | 8.75 | 13.75 | 2 | 1.5 | 2.62 | 0.62 | ❌ | $ |
| JA-02.00-A | 2 | 36 | 9.5 | 4.5 | 3 | 3.62 | 8.75 | 17.38 | 1 | 0 | 3.5 | 0.75 | ❌ | $ |
| JA-02.00-B | 2 | 36 | 9.5 | 4.5 | 3 | 3.62 | 9.25 | 17.38 | 1.5 | 0.75 | 3.5 | 0.75 | ❌ | $ |
| JA-02.00-C | 2 | 36 | 9.5 | 4.5 | 3 | 3.62 | 9.75 | 17.38 | 2 | 1.25 | 3.5 | 0.75 | ❌ | $ |
| JA-02.00-D | 2 | 36 | 9.5 | 4.5 | 3 | 3.62 | 10.5 | 17.38 | 2.75 | 2 | 3.5 | 0.75 | ❌ | $ |
| JA-04.00-A | 4 | 42 | 11.5 | 4.5 | 3.25 | 4.38 | 9.25 | 20.12 | 1.25 | 0.19 | 3.5 | 1.5 | ❌ | $ |
| JA-04.00-B | 4 | 42 | 11.5 | 4.5 | 3.25 | 4.38 | 10 | 20.12 | 2 | 1 | 3.5 | 1.5 | ❌ | $ |
| JA-04.00-C | 4 | 42 | 11.5 | 4.5 | 3.25 | 4.38 | 11 | 20.12 | 3 | 2 | 3.5 | 1.5 | ❌ | $ |
| JA-04.00-D | 4 | 42 | 11.5 | 4.5 | 3.25 | 4.38 | 12 | 20.12 | 4 | 3 | 3.5 | 1.5 | ❌ | $ |
| JA-06.00-A | 6 | 64 | 12.38 | 4.75 | 3.75 | 4.88 | 10.75 | 20.88 | 1.38 | 0.25 | 3.5 | 1.5 | ❌ | $ |
| JA-06.00-B | 6 | 64 | 12.38 | 4.75 | 3.75 | 4.88 | 11.5 | 20.88 | 2.12 | 1 | 3.5 | 1.5 | ❌ | $ |
| JA-06.00-C | 6 | 64 | 12.38 | 4.75 | 3.75 | 4.88 | 12.5 | 20.88 | 3.12 | 2 | 3.5 | 1.5 | ❌ | $ |
| JA-06.00-D | 6 | 64 | 12.38 | 4.75 | 3.75 | 4.88 | 13.5 | 20.88 | 4.12 | 3 | 3.5 | 1.5 | ❌ | $ |
| JA-08.00-A | 8 | 83 | 12.75 | 5.25 | 4.25 | 5.38 | 12.38 | 22.62 | 1.5 | 0.38 | 3.75 | 2 | ❌ | $ |
| JA-08.00-B | 8 | 83 | 12.75 | 5.25 | 4.25 | 5.38 | 13 | 22.62 | 2.12 | 1 | 3.75 | 2 | ❌ | $ |
| JA-08.00-C | 8 | 83 | 12.75 | 5.25 | 4.25 | 5.38 | 14.62 | 22.62 | 3.12 | 2 | 3.75 | 2 | ❌ | $ |
| JA-08.00-D | 8 | 83 | 12.75 | 5.25 | 4.25 | 5.38 | 15.62 | 22.62 | 4.12 | 3 | 3.75 | 2 | ❌ | $ |
| JA-12.00-A | 12 | 203 | 17.38 | 7.06 | 5.38 | 7.25 | 15.94 | 28.12 | 2.5 | 0.5 | 3.88 | 2 | ❌ | $ |
| JA-12.00-B | 12 | 212 | 17.38 | 7.06 | 5.38 | 7.25 | 17.44 | 28.12 | 4 | 2 | 3.88 | 2 | ❌ | $ |
| JA-12.00-C | 12 | 222 | 17.38 | 7.06 | 5.38 | 7.25 | 19.44 | 28.12 | 6 | 4 | 3.88 | 2 | ❌ | $ |
| JA-16.00-A | 16 | 350 | 19.81 | 8.69 | 6.25 | 8 | 19.81 | 32.31 | 2.5 | 0.5 | 4.5 | 2.25 | ❌ | $ |
| JA-20.00-A | 20 | 456 | 21.81 | 11.5 | 6.88 | 8.62 | 21 | 35.88 | 3 | 0.5 | 5 | 2.75 | ❌ | $ |
| JA-25.00-A | 25 | 483 | 23.62 | 9.62 | 6.75 | 8.62 | 19.06 | 35.88 | 2.5 | 0.5 | 5 | 3 | ❌ | $ |
| JA-25.00-B | 25 | 495 | 23.62 | 9.62 | 6.75 | 8.62 | 21.56 | 35.88 | 5 | 3 | 5 | 3 | ❌ | $ |
| JA-25.00-C | 25 | 502 | 23.62 | 9.62 | 6.75 | 8.62 | 22.56 | 35.88 | 6 | 4 | 5 | 3 | ❌ | $ |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
