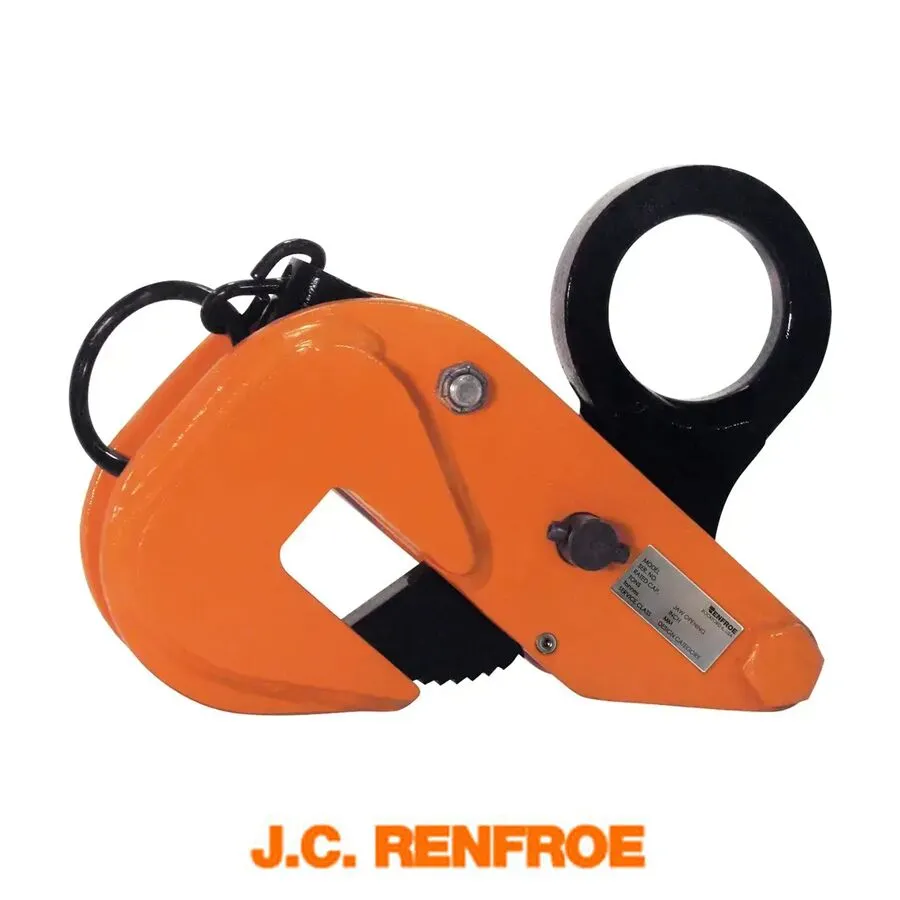

Renfroe Model M

Renfroe Model M

Model M Locking Type

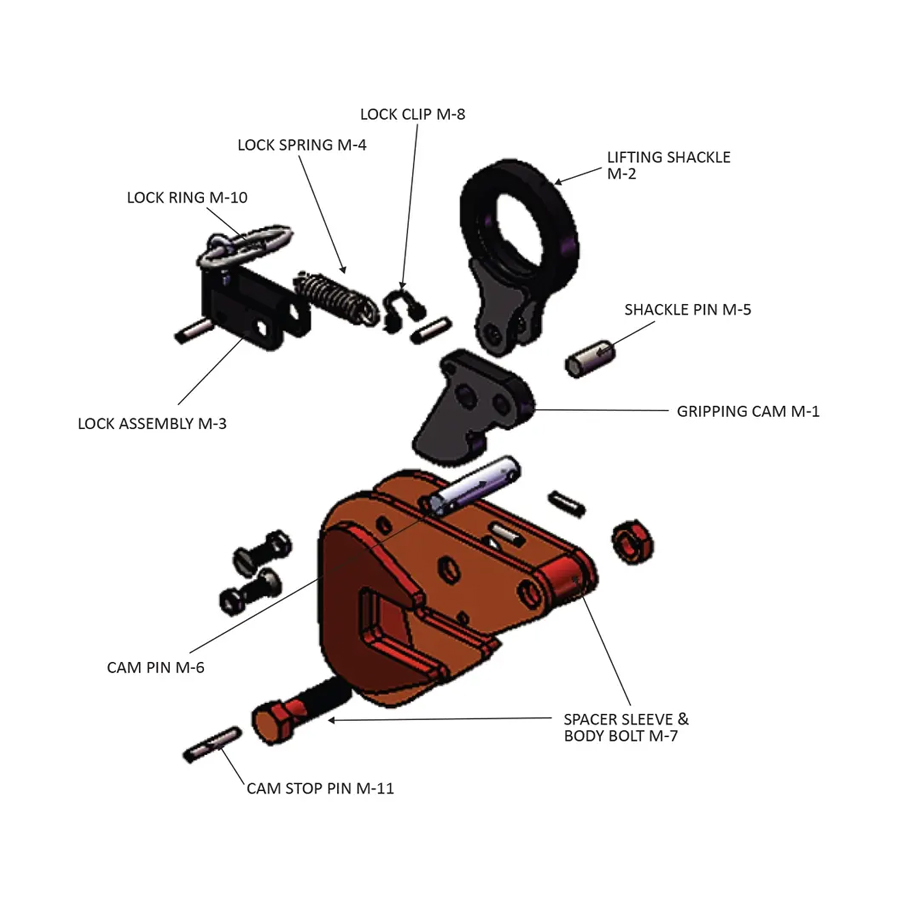

The Model M is a multipurpose clamp used for positioning, sorting, erection and handling of prefabricated sections. The split lower jaw enables the clamp to be particularly useful in handling structural shapes. The Model M incorporates a “Lock Closed” feature which facilitates attaching the clamp to the member being lifted. These clamps must be used in pairs, sets of pairs, or in a tripod arrangement for transporting plate horizontally. Handle is available on 8-ton clamp only.

Product Features

  • Versatile clamp used for horizontal lifts of an I beam in both the I or H position

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

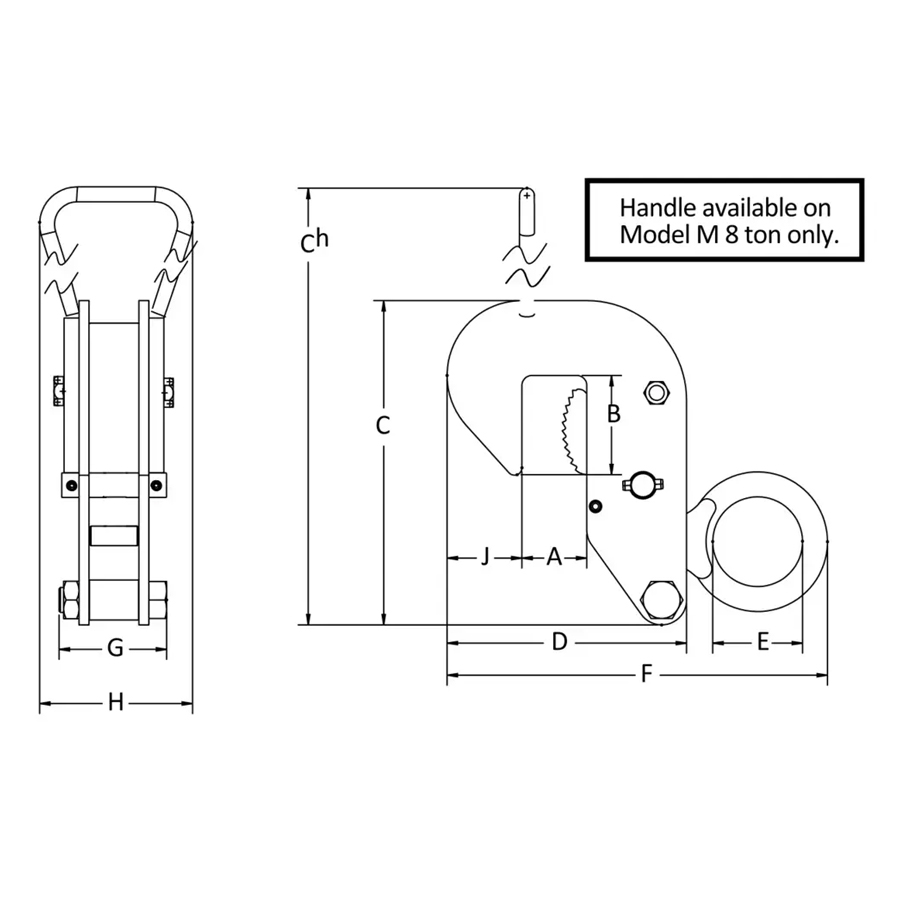

Model Number Capacity (tons) Shackle Hole Dia (in.) Weight (lbs.) Min Jaw Opening (in.) Max Jaw Open (in.) Clamp Height (in.) Clamp Width (in.) Jaw Height (in.) Jaw Length (in.) Overall Clamp Height (in.) Overall Clamp Length (in.) In Stock Price
M-00.50-A 0.5 2.25 7 0 1 4.69 2.62 1.44 2.31 8.88 7.06 ✔ $
M-00.50-B 0.5 2.25 8 0.75 1.5 5.19 2.62 1.44 2.31 9.38 7.06 ❌ $
M-00.50-C 0.5 2.25 9 1.25 2 5.69 2.62 1.44 2.31 9.88 7.06 ❌ $
M-01.00-A 1 2.25 11 0 1 5.5 2.75 1.88 2.5 9.5 8.12 ✔ $
M-01.00-B 1 2.25 12 0.75 1.5 6 2.75 1.88 2.5 10 8.12 ❌ $
M-01.00-C 1 2.25 13 1.25 2 6.5 2.75 1.88 2.5 10.5 8.12 ❌ $
M-02.00-A 2 3.06 23 0 1.25 6.56 3.88 2 3.19 12.12 10.75 ✔ $
M-02.00-B 2 3.06 24 1 2 7.19 3.88 2 3.19 12.88 10.75 ❌ $
M-02.00-C 2 3.06 27 1.75 2.75 7.94 3.88 2 3.19 13.62 10.75 ❌ $
M-04.00-A 4 3.62 36 0 1.5 7.75 4.38 2.75 3.81 14.5 12 ✔ $
M-04.00-B 4 3.62 38 1.25 2.5 8.75 4.38 2.75 3.81 16.5 12 ❌ $
M-04.00-C 4 3.62 41 2.25 3.5 9.75 4.38 2.75 3.81 14.5 12 ❌ $
M-08.00-A 8 4 110 0 2 12.94 5.5 4 4.94 21 0 ❌ $
M-08.00-B 8 4 110 1.75 3.5 12.94 5.5 4 4.94 21 0 ❌ $
M-08.00-C 8 4 125 3.25 5 14.44 5.5 4 4.94 22.5 0 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
