Renfroe Model NMBL

Renfroe Model NMBL

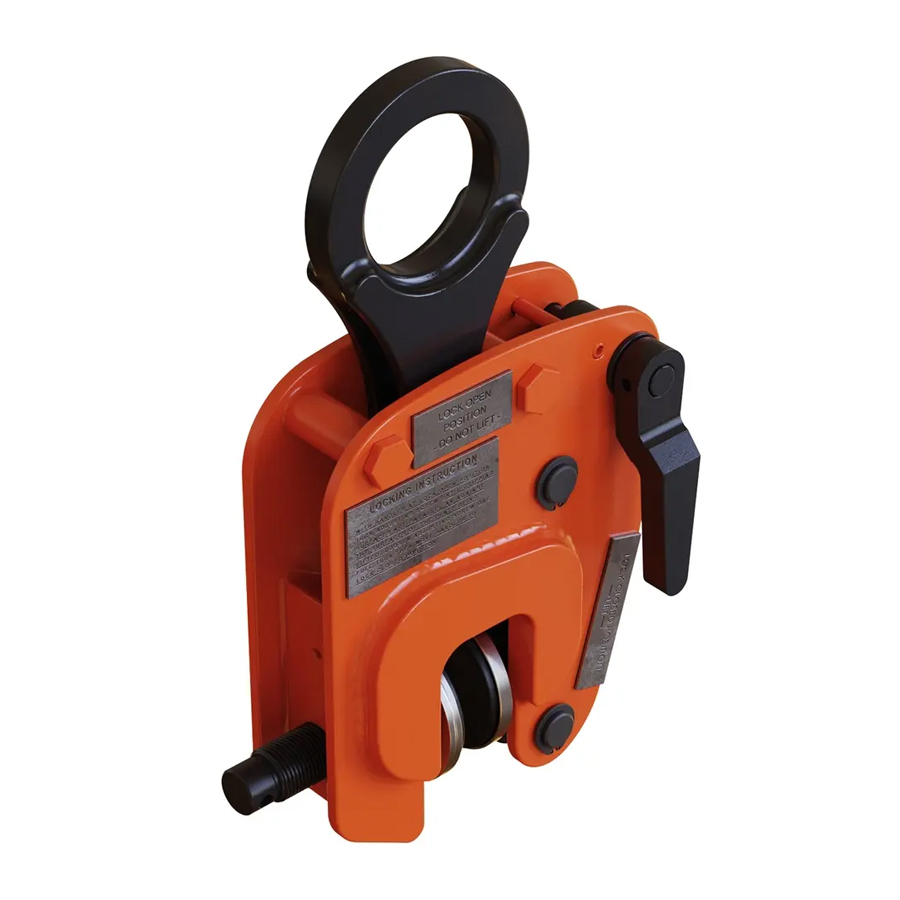

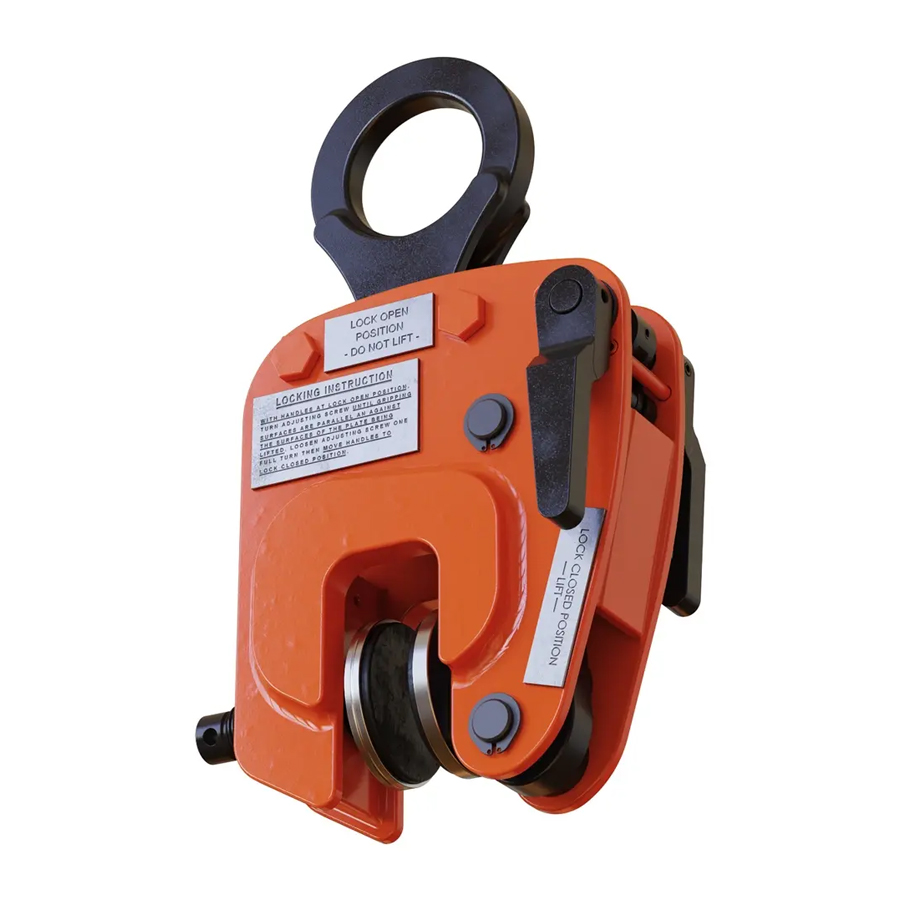

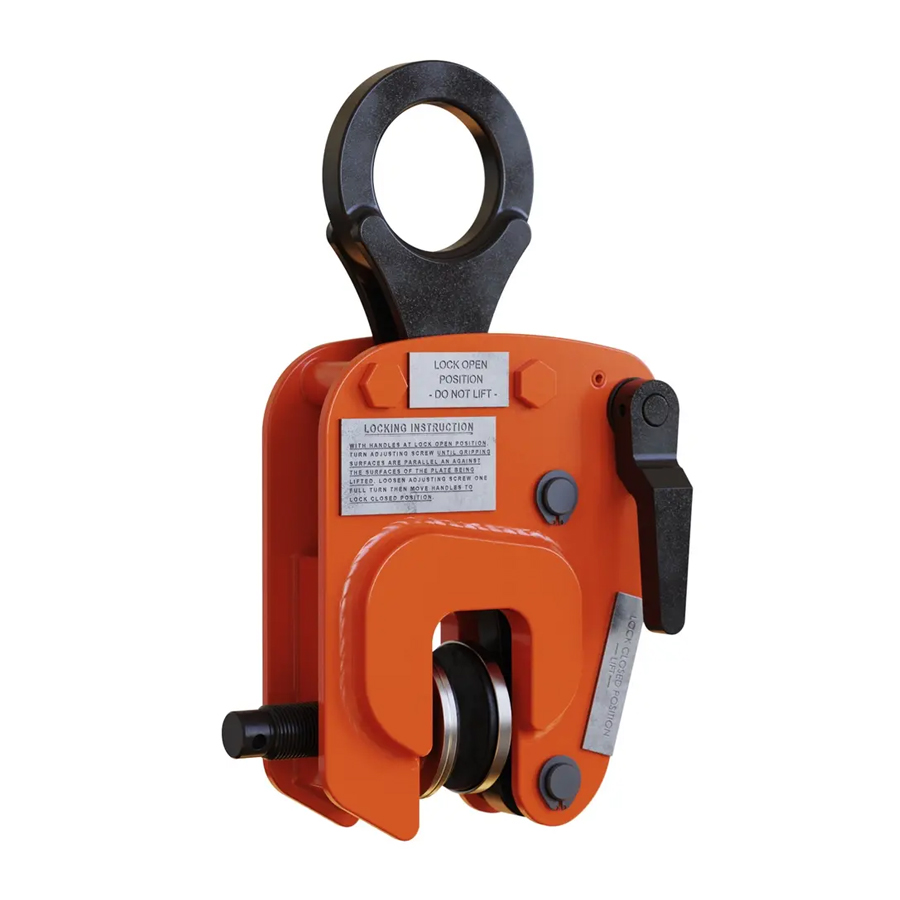

Model NMBL Locking Type

The NMBL Model is used to turn plates from the horizontal through a 180° arc. It is manufactured with smooth gripping surfaces to prevent marring when gripping stainless steel, copper, aluminum, and other polished metal plates. The NMBL incorporates a lock open – lock closed feature to facilitate attaching and removing the clamp from the plate. Recommended for use in pairs.

Product Features

  • Turns plates from horizontal through 180° arc
  • Incorporates a Lock Open – Lock Closed feature for easy on & off clamp positioning
  • Recommended for use in pairs
  • Supplied with smooth gripping surfaces to prevent marring
  • Capable of gripping stainless steel, copper, aluminum and other polished metal plates
  • Non-marring with 180° turn
  • Stainless steel gripping component good for polished surfaces

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

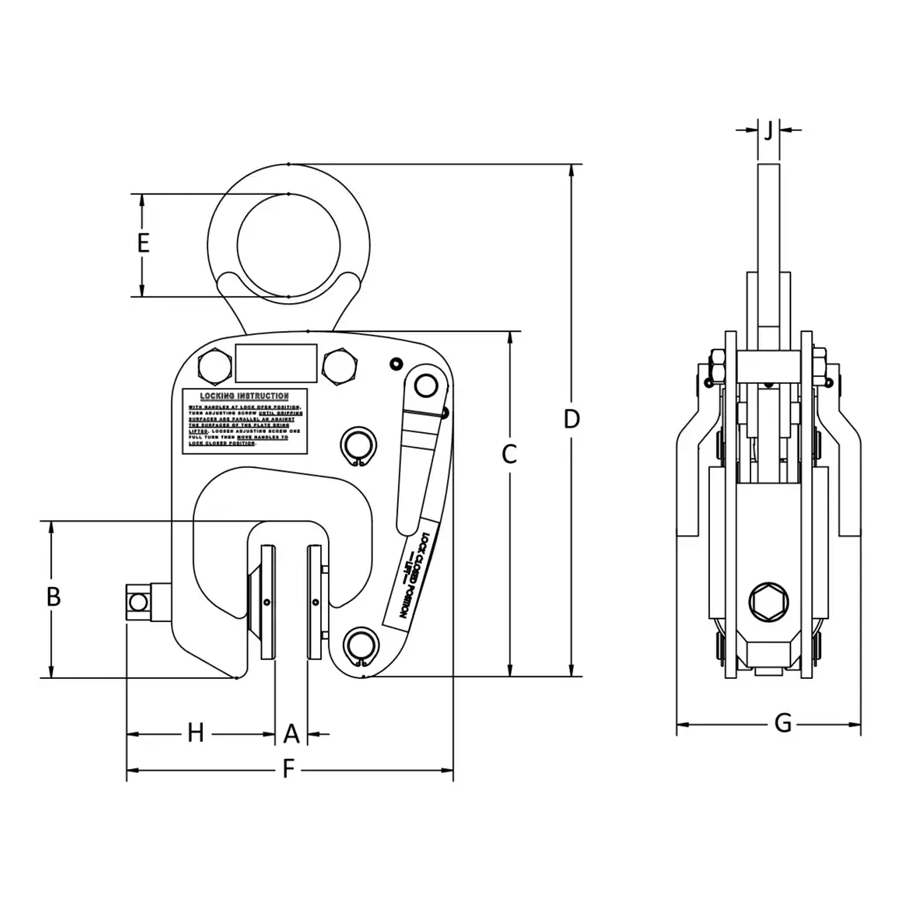

Model Number Capacity (tons A – Min Plate Thickness (in.) A – Max Plate Thickness (in.) B – Jaw Opening Length (in.) C – Clamp Body Height (in.) D – Overall Height (in.) E – Bail Opening Diameter (in.) F – Overall Length (in.) G – Overall Width (in.) H – Clamping Screw Length (in.) J – Bail Thickness (in.) Weight (lbs.) In Stock Price
NMBL-00.50-A 1.5 0 0.63 3.63 8 12.31 2.38 7.63 4.25 3.44 0.5 15.3 ❌ $
NMBL-01.00-A 1 0 0.75 3.63 8 12.31 2.38 7.56 4.25 3.44 0.5 17.4 ❌ $
NMBL-02.00-A 2 0 2 4.88 10.88 17.56 3 12.03 5.5 5.44 0.75 31 ❌ $
NMBL-04.00-A 4 0.25 1.5 7.17 16.19 23.78 3 6.25 8.5 8.14 1.25 126 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
