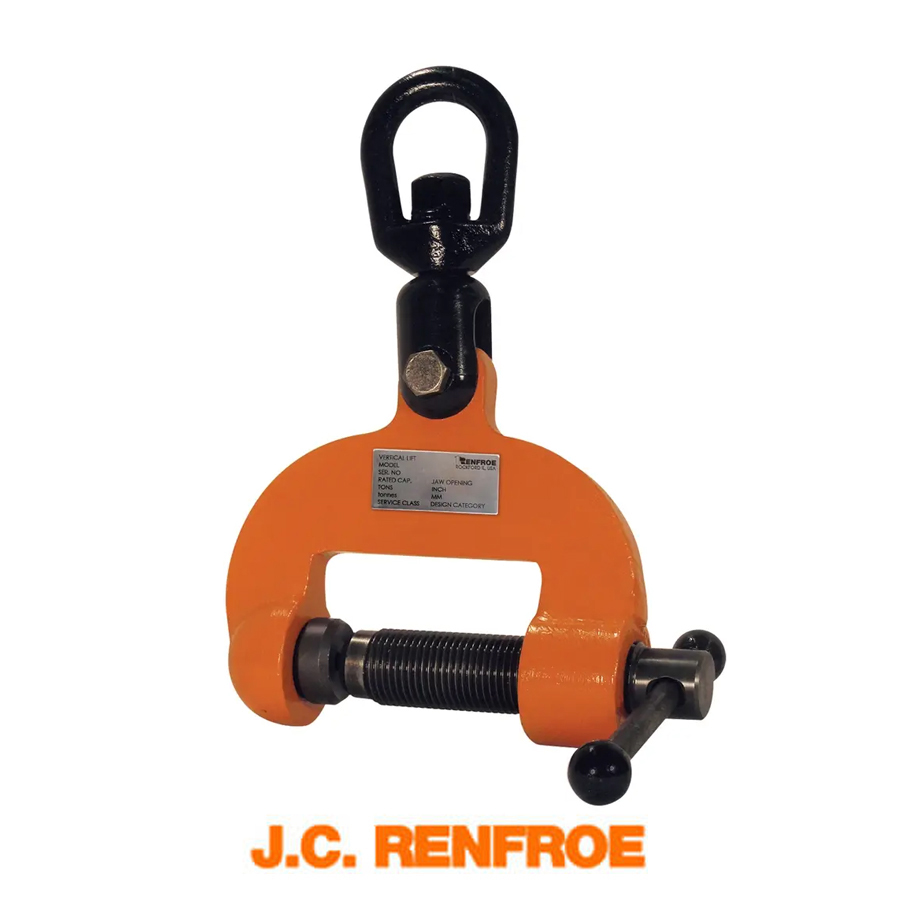

The Model RSC is a lightweight screw clamp for bench work on steel plates of large thickness, and weighing less than 1,000 lbs.
Product Features

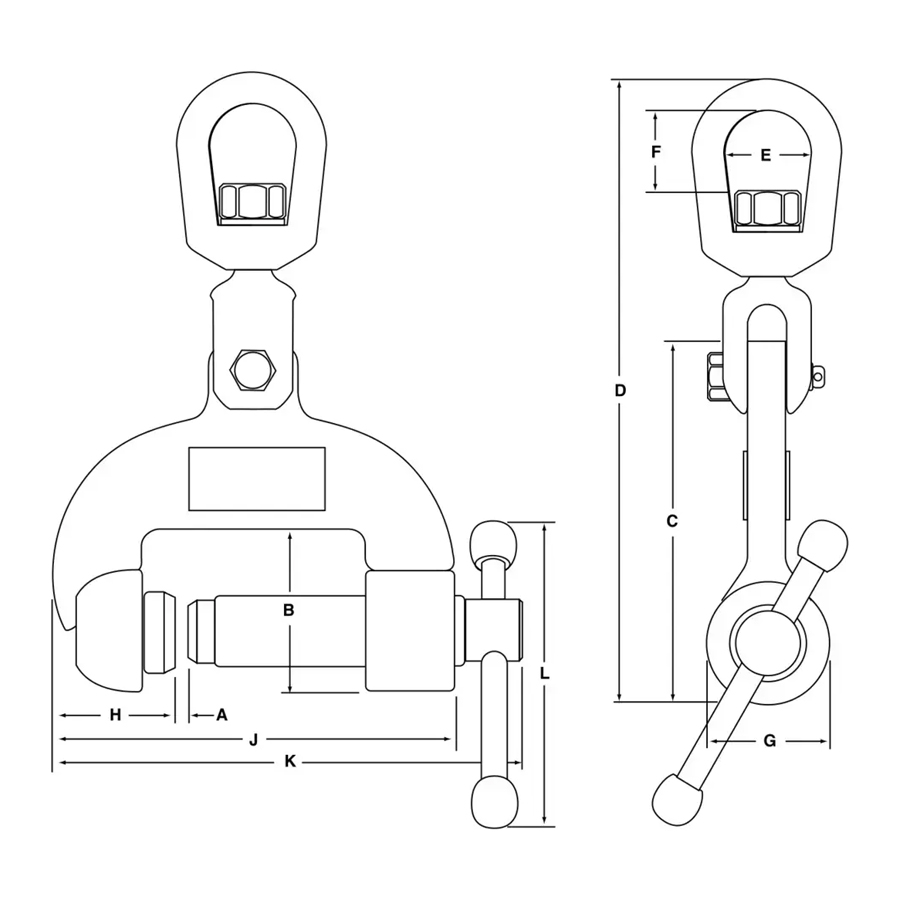

| Model Number | Capacity (tons | Weight (lbs.) | Max Jaw Open (in.) | Clamp Body Length (in.) | Clamp Height (in.) | Clamp Width (in.) | Jaw Height (in.) | Jaw Length (in.) | Overall Height (in.) | Overall Length (in.) | Shackle Opening Height (in.) | Shackle Opening Width (in.) | OA Handle Length (in.) | In Stock | Price |
| RSC-00.50-A | 0.5 | 13.5 | 3 | 7.88 | 7 | 2.38 | 3.19 | 2.38 | 12.19 | 11.88 | 1.56 | 1.75 | 6.75 | ✔ | $ |
| RSC-00.50-B | 0.5 | 16.5 | 4.25 | 9.25 | 7.31 | 2.38 | 3.19 | 2.38 | 12.31 | 13.12 | 1.56 | 1.75 | 6.75 | ✔ | $ |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Ring body and bolt made from stainless steel Non-removable special bolt
Large WLL range 1.5 t – 16 t Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring WLL possible up to 90° in load ring plane
