Renfroe Model SCP

Renfroe Model SCP

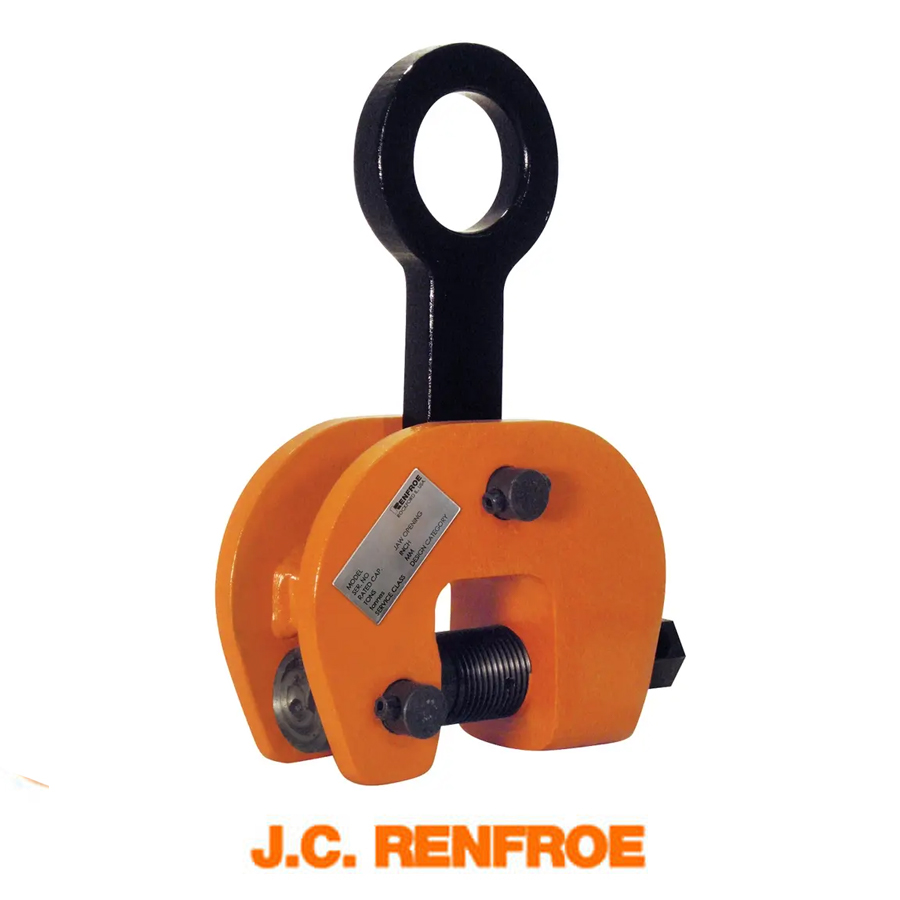

Model SCP Locking, Screw Type

The Model SCP clamp is capable of handling steel plate from horizontal to vertical to horizontal through a 180° arc and may be used for handling plate a trolling and forming machines. These clamps feature a spring loaded pivoting cam jaw that “cams in” when a load is applied to the lifting shackle. Clamp is capable of handling plate horizontally when used in pairs or sets of pairs, or in a tripod arrangement.

Product Features

  • Developed to handle plate at rolling & forming machines
  • Single plate handling from horizontal to vertical to horizontal through a 180° arc
  • Features a spring loaded pivoting jaw to engage when a load is applied
  • Can be used in pairs, sets of pairs or tripod arrangement when lifting horizontally
  • Heavy-duty screw-clamp version of the Model RSC

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

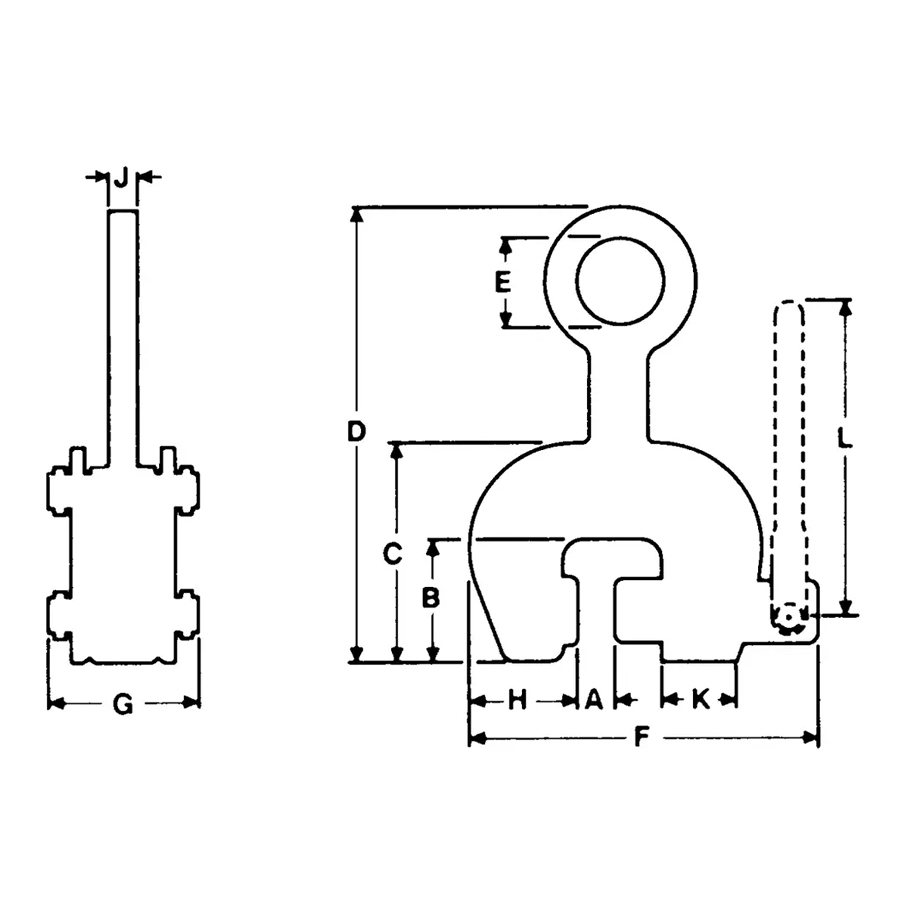

Model Number Capacity (tons) Weight (lbs.) Clamp Height (in.) Clamp Width (in.) Jaw Height (in.) Jaw Length (in.) Overall Height (in.) Overall Length (in.) Max Plate Thickness (in.) Screw Block Width (in.) Shackle Open (in.) Shackle Thick (in.) In Stock Price
SCP-00.50-A 0.5 7 4.5 2.38 2.38 1.88 9 6.62 0.75 1.5 2.38 0.5 ❌ $
SCP-01.50-A 1.5 13 5.5 3.38 2.88 2.38 10.56 8.44 1.25 1.75 2.62 0.62 ❌ $
SCP-03.00-A 3 19 5.75 4.06 3.12 2.81 12 10.81 2 2 2.38 0.75 ❌ $
SCP-06.00-A 6 44 7.56 5.38 4.31 3.44 14.38 14.38 2.5 2.94 3 1 ❌ $
SCP-10.00-A 10 93 9.75 6.75 5.5 4.38 19.25 16.38 3 3.12 3.25 1 ❌ $
SCP-15.00-A 15 210 12.12 8.25 7.25 5.56 22.88 21.5 4 4 3.75 1.25 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
