Renfroe Model SCPA

Renfroe Model SCPA

Model SCPA Locking, Screw Type

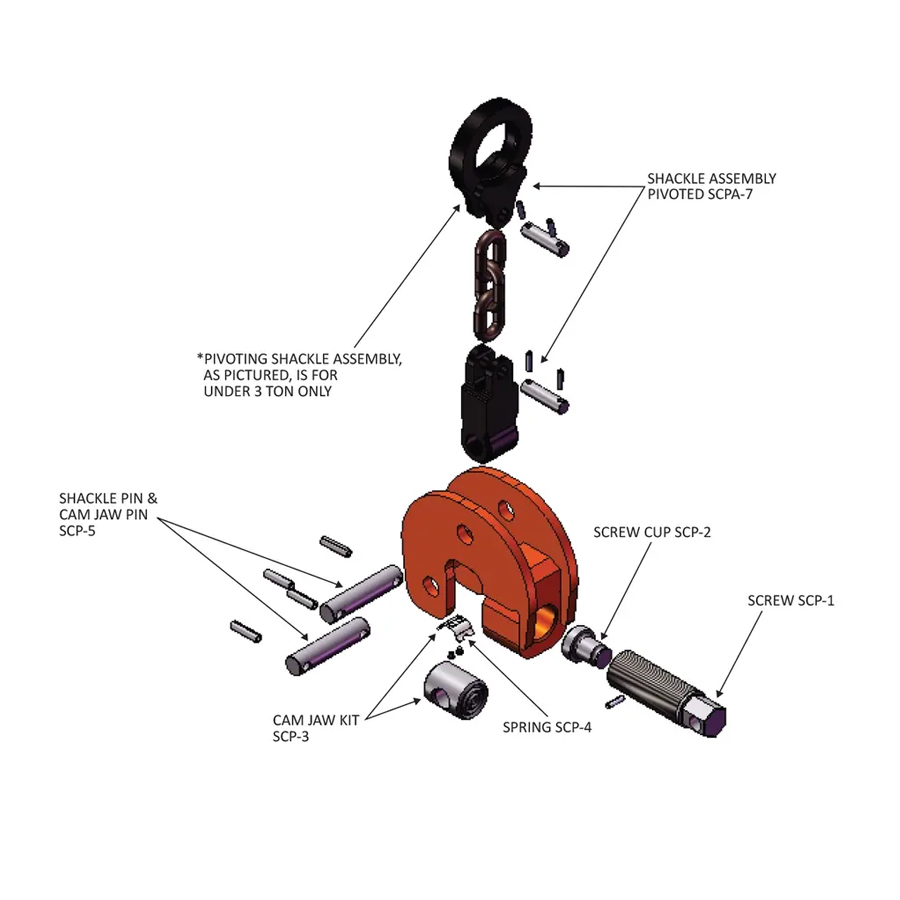

The SCPA clamp is capable of handling steel plate from horizontal to vertical to horizontal through a 180 degree arc and may be used for handling plate at rolling and forming machines. These clamps feature a spring loaded pivoting cam jaw that “cams in” when a load is applied to the lifting shackle. Clamp is capable of handling plate horizontally when used in pairs or sets of pairs, or in a tripod arrangement. *Pivoting shackle assembly, as shown, is available on capacities of 3 tons and larger.

Product Features

  • Developed to handle plate at rolling & forming machines
  • Single plate handling from horizontal to vertical to horizontal through a 180 degree arc
  • Features spring loaded pivoting jaw to engage when a load is applied
  • Can be used in pairs, sets of pairs or tripod arrangement

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

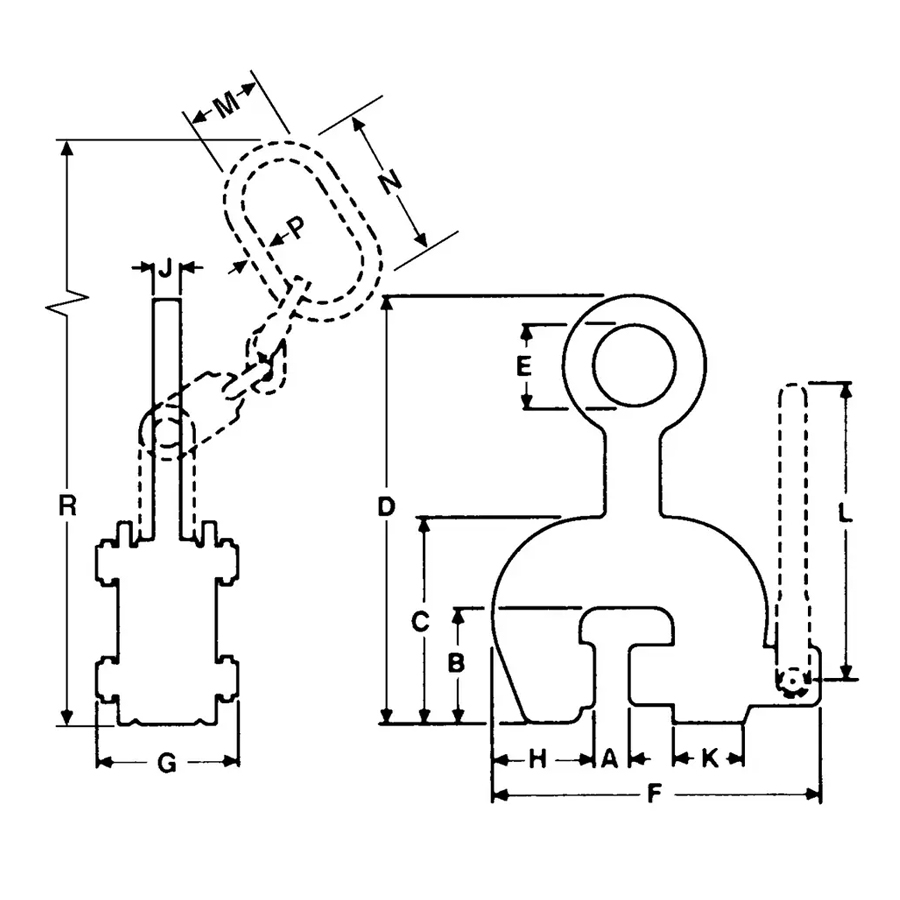

Model Number Capacity (tons Shackle Hole Dia (in.) Weight (lbs.) Max Jaw Open (in.) Clamp Height (in.) Clamp Length (in.) Clamp Width (in.) Jaw Height (in.) Jaw Length (in.) Oblong Open Len (in.) Oblong Open Wid (in.) Oblong Thick (in.) Overall Clamp Height (in.) Overall Clamp Length (in.) Max Plate Thickness (in.) Screw Block Width (in.) Shackle Thick (in.) In Stock Price
SCPA-00.50-A 0.5 2.38 8 0.75 4.5 6.62 2.38 2.38 1.88 1.75 1.75 0.56 12.19 10.75 0.75 1.5 0.5 ✔ $
SCPA-01.50-A 1.5 2.62 15 1.25 5.5 8.44 3.38 2.88 2.38 2 2 0.69 14.19 13 0.75 1.75 0.62 ✔ $
SCPA-03.00-A 3 2.38 24 2 5.75 10.81 4.06 3.12 2.81 6 3 0.75 21.38 19.25 1.5 2 0.75 ✔ $
SCPA-06.00-A 6 3 57 2.5 7.56 14.38 5.38 4.31 3.44 7 3.5 1 27.75 0 0 2.94 1 ✔ $
SCPA-10.00-A 10 3.25 134 3 9.75 16.38 6.75 5.5 4.38 7 3.5 1 29.44 0 0 3.12 1 ❌ $
SCPA-15.00-A 15 3.75 312 4 12.12 21.5 8.25 7.25 5.56 8 3.88 1.25 36.5 0 0 4 1.25 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
