Caldwell Rig-Release® Manual Releasing Hook – Model RR

Rope Guide allows rigging to be released when hook is either above or beside the operator.
Designed for rugged outdoor use.
Easy to use – simply rig, lift, set and release.
LOCK & CAPTURE feature engages with very little load weight (see Minimum Load in chart below).
Rated load capacity can be lifted from either Lift Arm or the lower Strip Sling Hook. Do not exceed rated capacity of hook.
Oversized bail for easy mounting on crane hook – 5, 10 & 15 ton units provided with fixed bails.
Designed and manufactured to ASME standards.

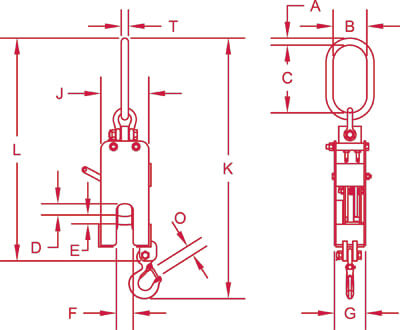

Model Number	Rated Cap. (tons)	Dimensions (inches)								Bail Dimensions (inches)				Weight (lbs.)
Model Number	Rated Cap. (tons)	D	E	F	G	J	K	L	O	A	B	C	T	Weight (lbs.)
RR-1	1	1.15	0.75	1.25	2.77	4.25	23.10	19.75	0.89	0.63	3.00	6.00	0.63	14
RR-2.5	2.5	1.75	1.00	1.50	4.25	9.56	31.67	26.88	1.09	0.63	3.00	6.00	0.63	45
RR-5	5	1.83	1.50	1.50	5.00	11.13	36.40	30.75	1.36	2.00	4.00	7.00	1.25	110
RR-10	10	2.25	1.75	2.00	6.31	11.00	41.16	32.13	2.08	2.00	4.00	7.00	1.25	200
RR-15	15	3.00	2.50	2.50	6.31	15.00	49.25	39.25	2.27	2.50	5.00	9.00	1.50	325

NOTE: For larger capacities see page E.21.

				Rigging
Model Number	Rated Capacity (tons)	*Minimum Load (lbs.)		Recommended Lifting Slings	**Maximum Allowable Rigging Weight (lbs.)
Model Number	Rated Capacity (tons)	Basket	Choker	Rope Dia. (inches)	Basket	Choker
RR-1	1	30	15	3/8	14	7
RR-2.5	2.5	80	40	5/8	28	14
RR-5	5	230	115	7/8	60	30
RR-10	10	230	115	1-1/4	100	50
RR-15	15	400	200	1-1/2	100	50

*If minimum load weight is not met, safety mechanism will not engage into the LOCK & CAPTURE position.
**If maximum allowable rigging weight is exceeded, unit will remain in the LOCK & CAPTURE position and can not be released.
If the maximum allowable rigging weight needs to be increased, additional springs can be added, refer to the Instruction Manual.
