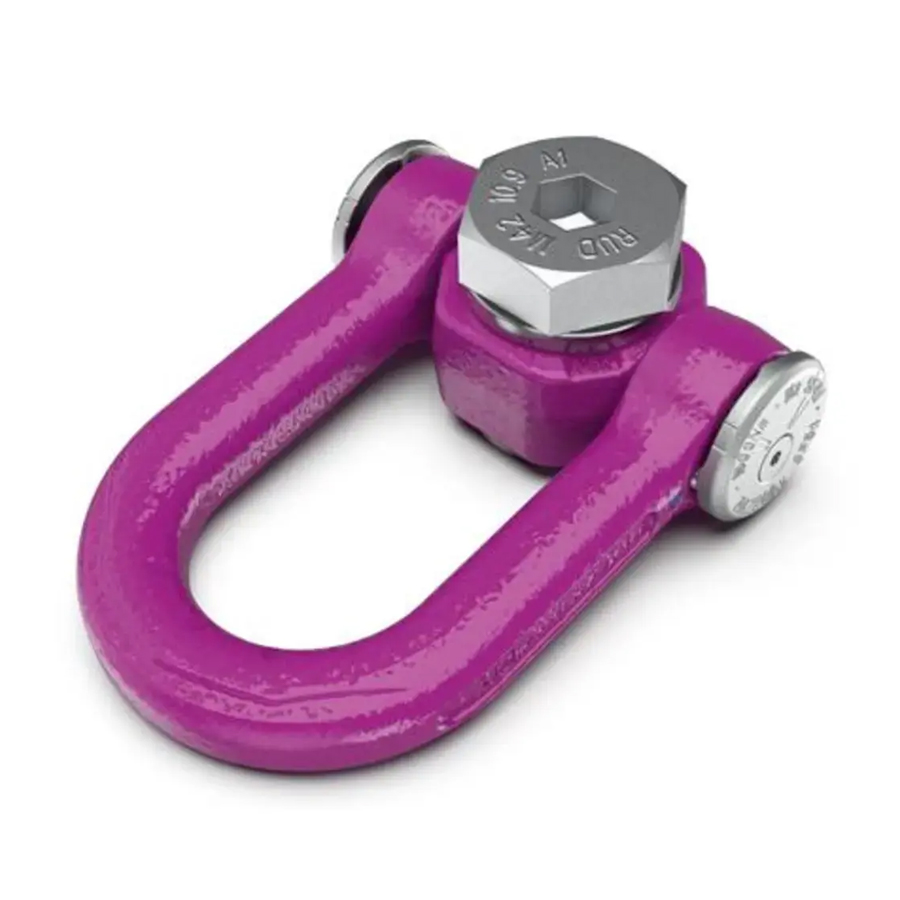

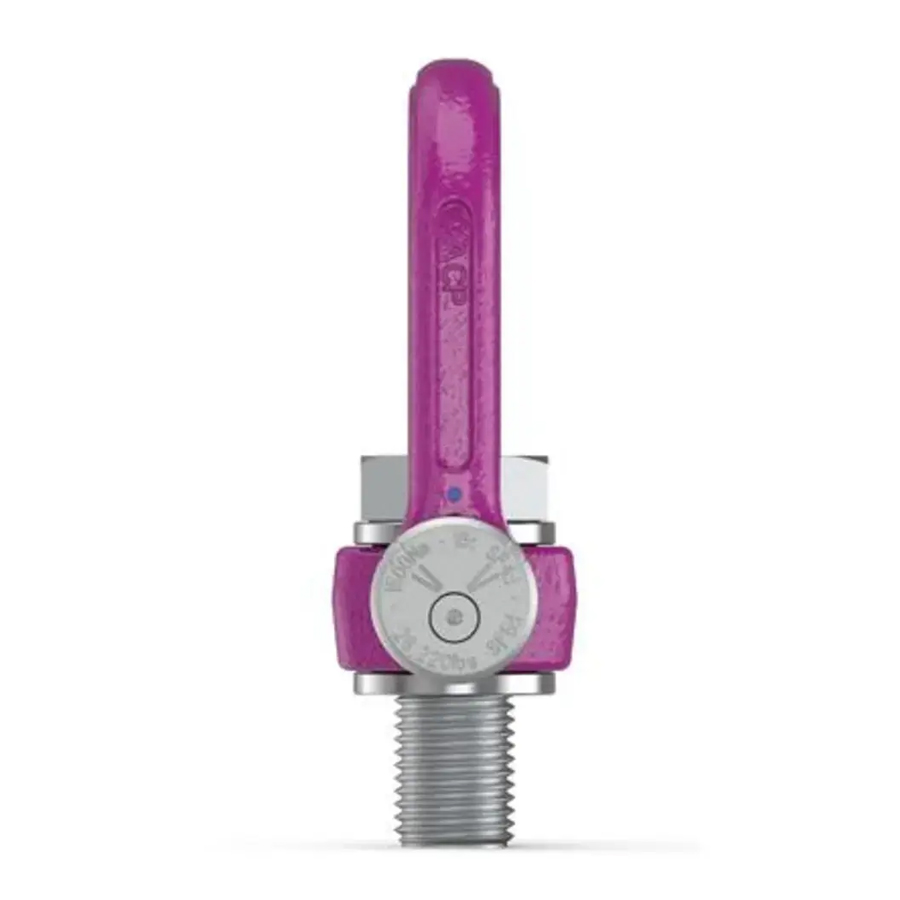

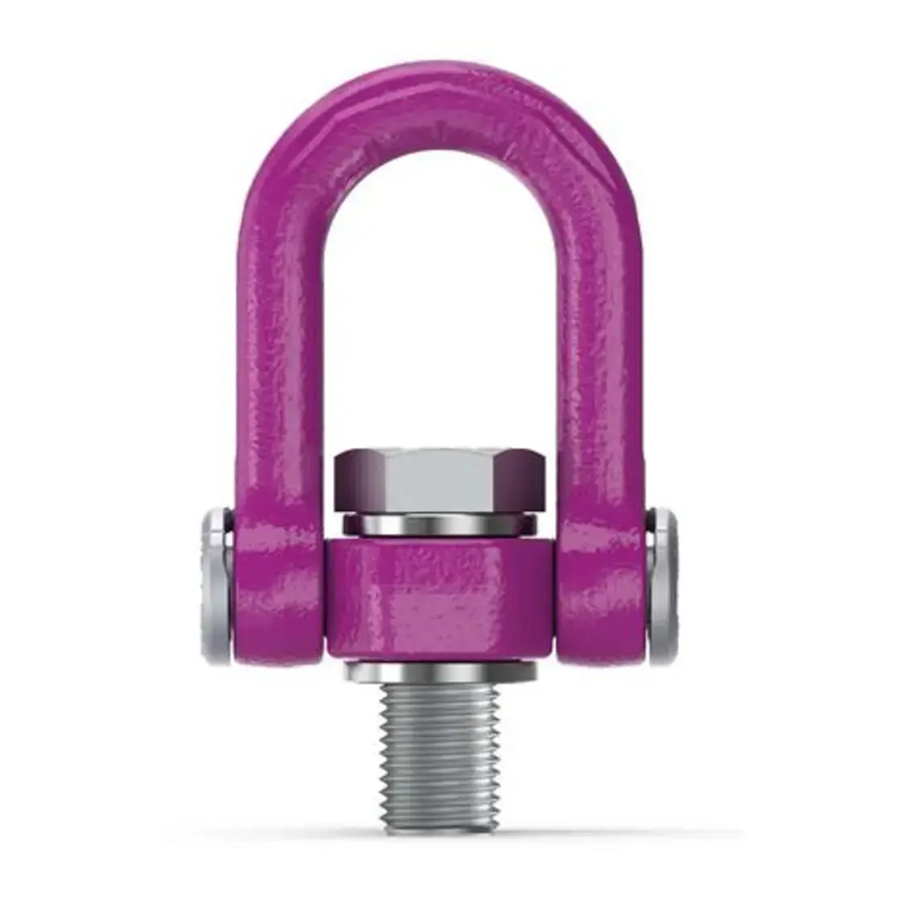

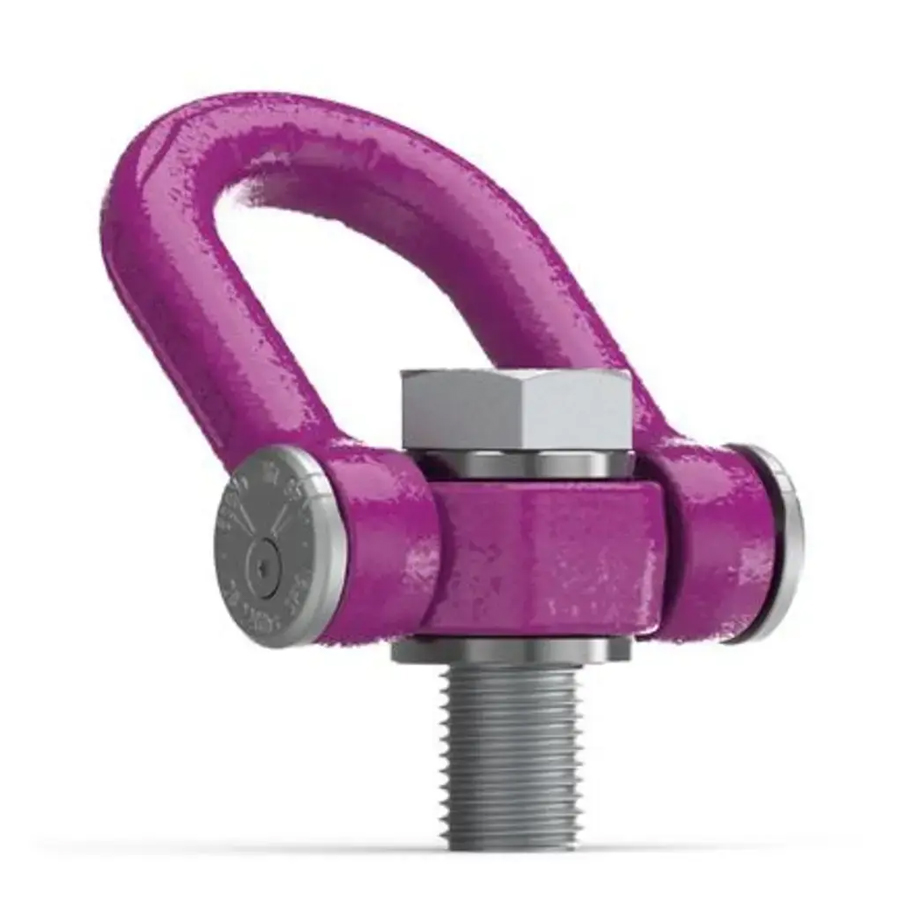

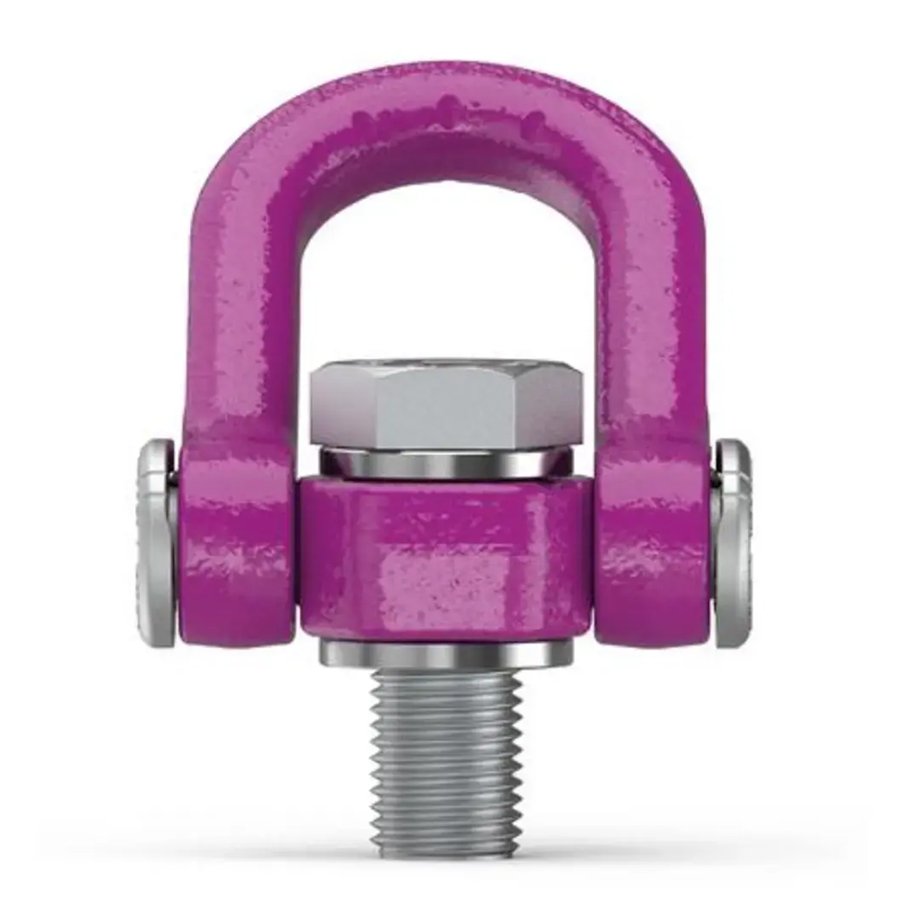

RUD ACP-TURNADO MAX: Metric Thread, Automatic Center Point Boltable Lifting Point

RUD ACP-TURNADO MAX: Metric Thread, Automatic Center Point Boltable Lifting Point

Product Features:

  • Innovative, optimally protected internal spring mechanism – prevents the lift bail from stopping with transverse load
  • Swivel joint in the lifting ring axis
  • Wear lenses for checking discard criteria
  • Integrated RFID transponder to make checks easier
  • Safety factors 4:1 and 5:1
  • Meets and exceeds the requirements of the American standard ASME B30.26
  • Deflector disc with angle marking, WLL information in “t” and “lbs”, safety factors, and torque moment
  • M36 – M48: Combination head screw with internal and external hexagon

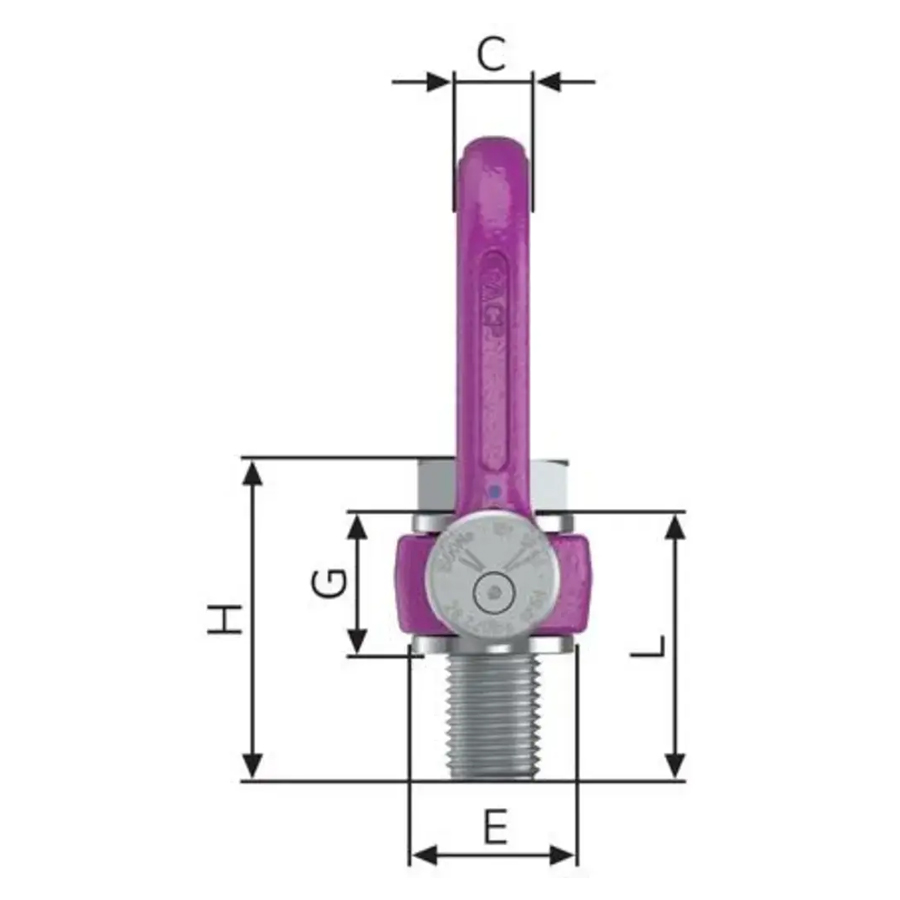

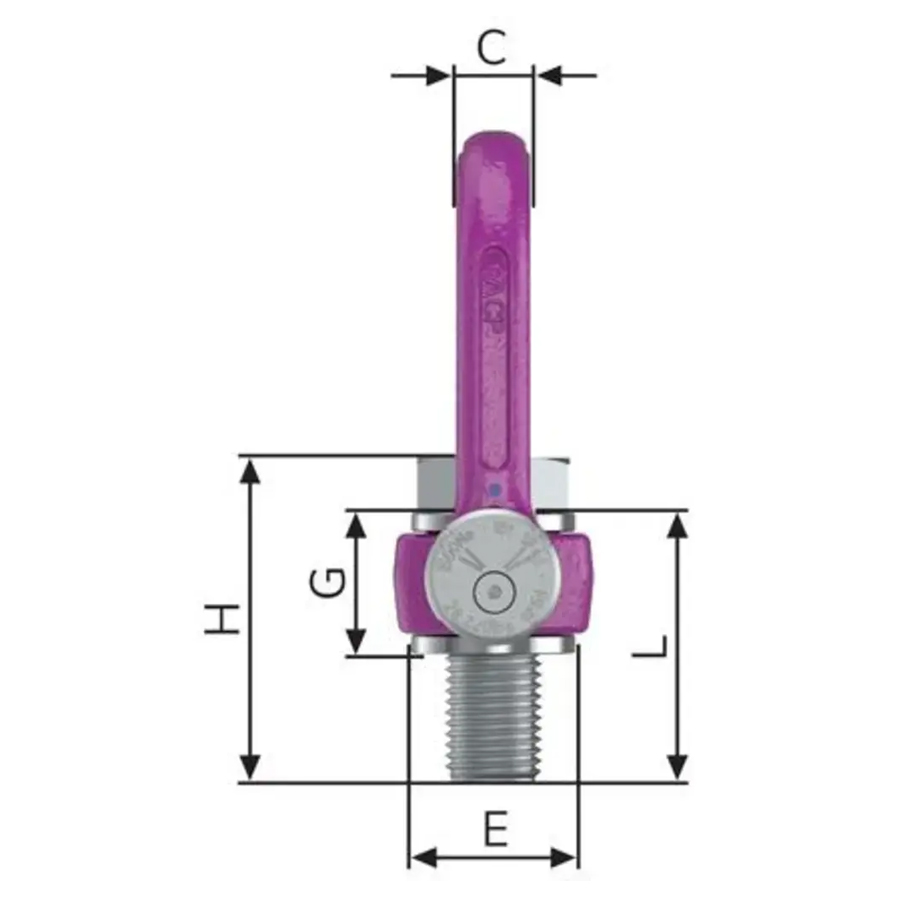

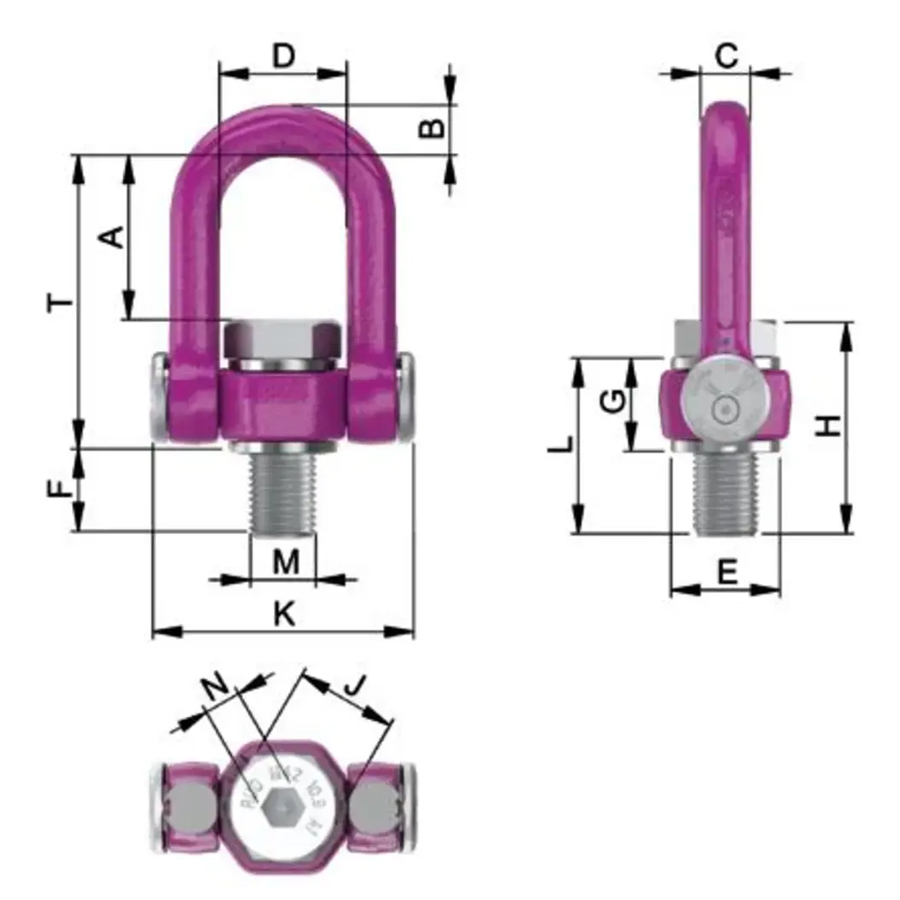

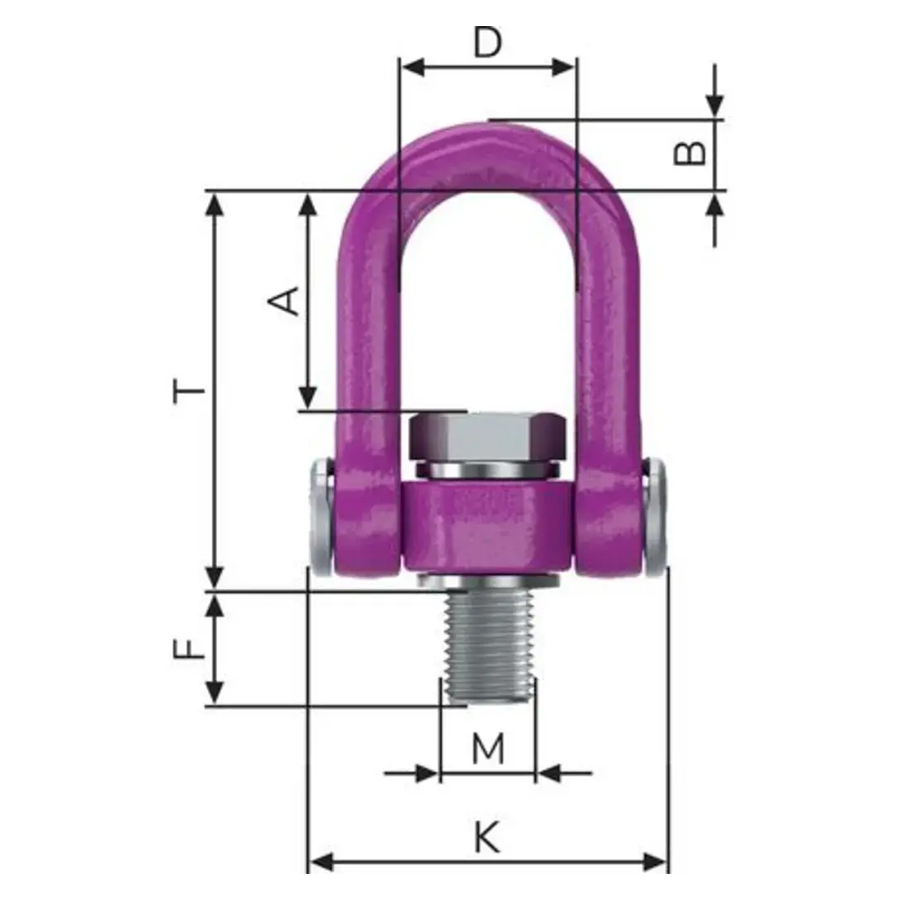

Model Number WLL (tons) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I K (mm) L (mm) M N (mm) Pitch T (mm) In Stock Price
7911052 12.5 106 32 32 82 70 45 60 128 55 168 105 M36 22 189 $
7911053 16 106 32 32 82 70 53 60 136 65 168 113 M42 24 189 $
7912630 20 127 40 40 103 90 61 78.5 169 75 204 139 M48 24 235 $
7912631 24 123.5 40 40 103 95 65 108 173 75 204 0 M52 24 232 $
7912632 27 123.5 40 40 103 95 70 108 178 75 204 0 M56 24 232 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
