RUD ACP-TURNADO SUPERMAX: Metric Thread, Automatic Center Point Boltable Lifting Point

RUD ACP-TURNADO SUPERMAX: Metric Thread, Automatic Center Point Boltable Lifting Point

Product Features:

  • Innovative, protected internal spring mechanism – prevents the lift bail from stopping with transverse load
  • Swivel joint in the lifting ring axis
  • Wear lenses for checking discard criteria
  • Integrated RFID transponder to make checks easier
  • Safety factors 4:1 and 5:1
  • Meets and exceeds the requirements of the American standard ASME B30.26
  • Deflector disc with angle marking, WLL information in “t” and “lbs”, safety factors, and torque moment
  • Threaded rod – firmly connected
  • Free space for individual marking/stamp

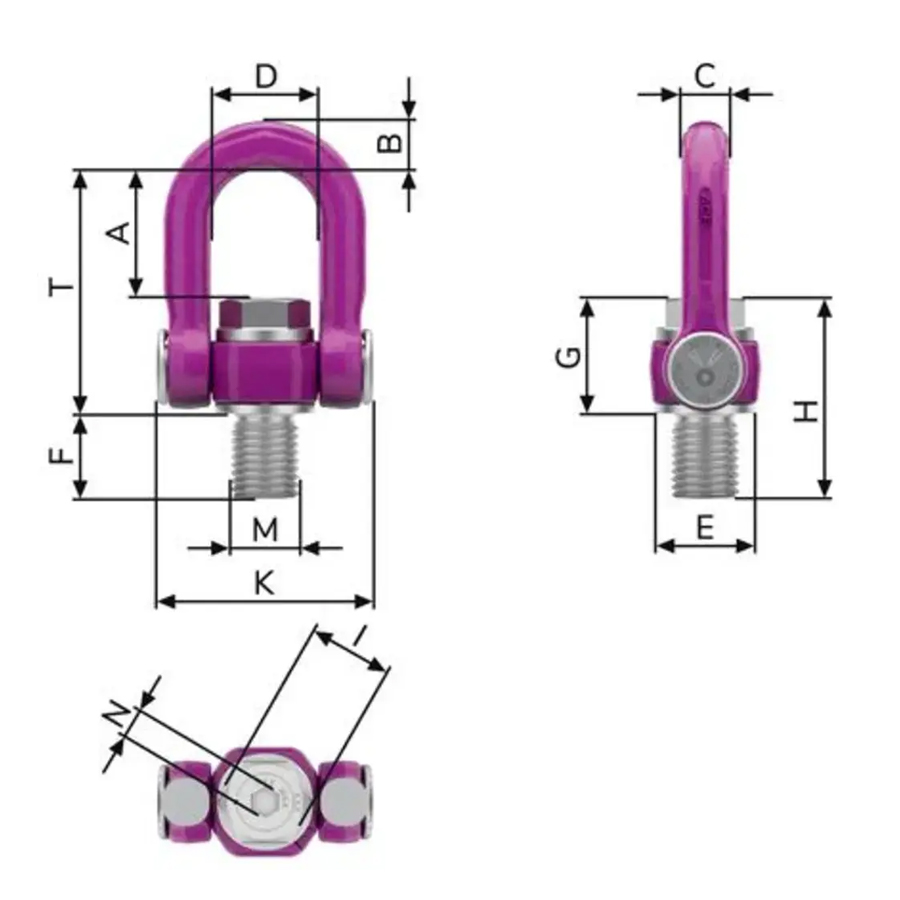

Model Number WLL (lbs.) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) K (mm) M N (mm) Pitch T (mm In Stock Price
7912633 57320 123.5 45 45 103 95 80 108 188 75 204 M64 24 232 $
7912634 57320 123.5 45 45 103 95 90 108 198 75 204 M72 24 232 $
7912635 57320 123.5 45 45 103 100 100 108 208 75 204 M80 24 232 $
7912636 57320 123.5 45 45 103 110 113 116 229 75 204 M90 24 240 $
7912637 57320 123.5 45 45 103 120 125 116 241 75 204 M100 24 240 $
