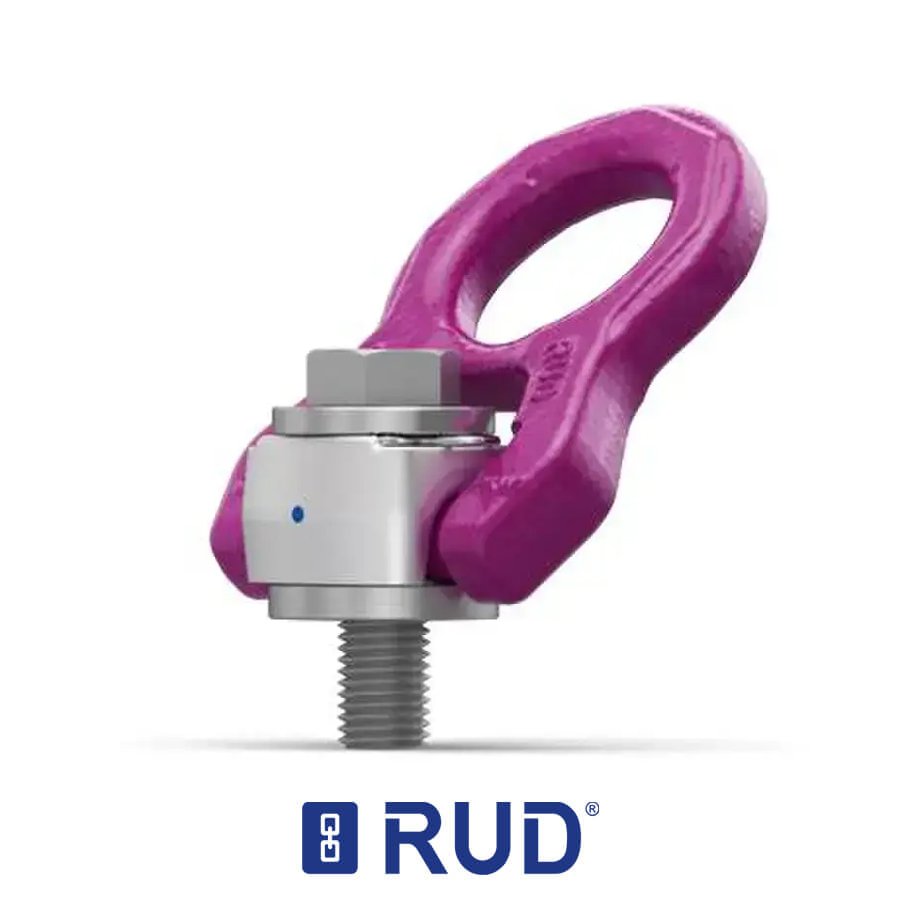

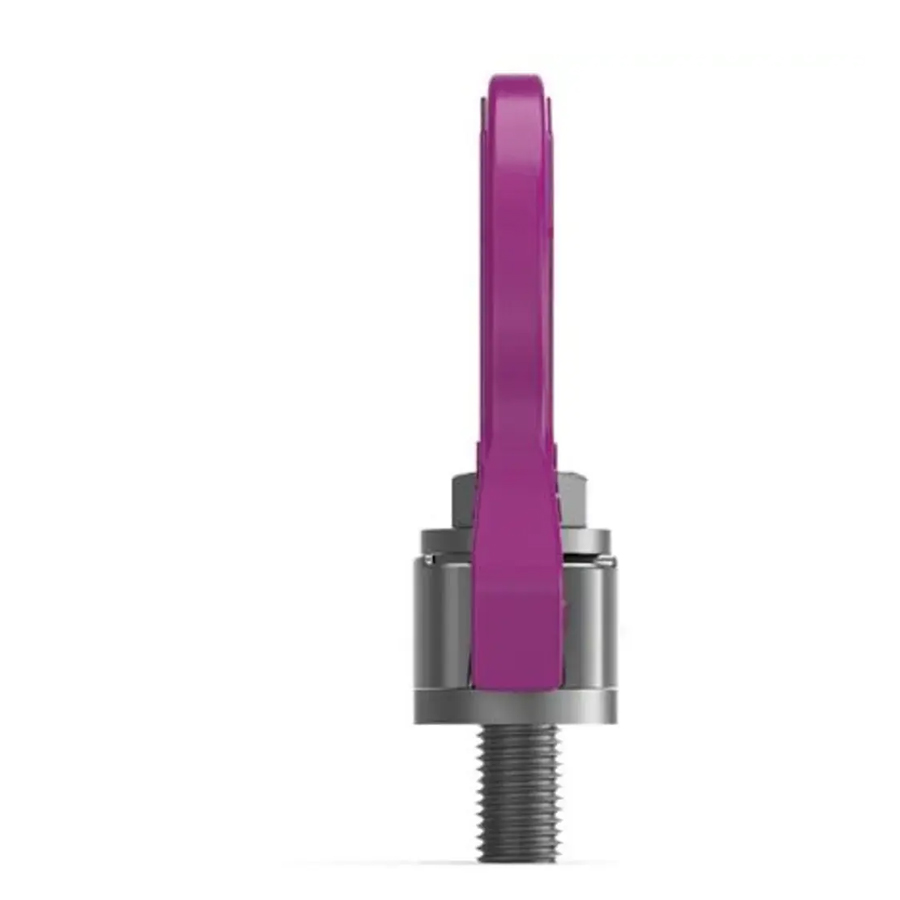

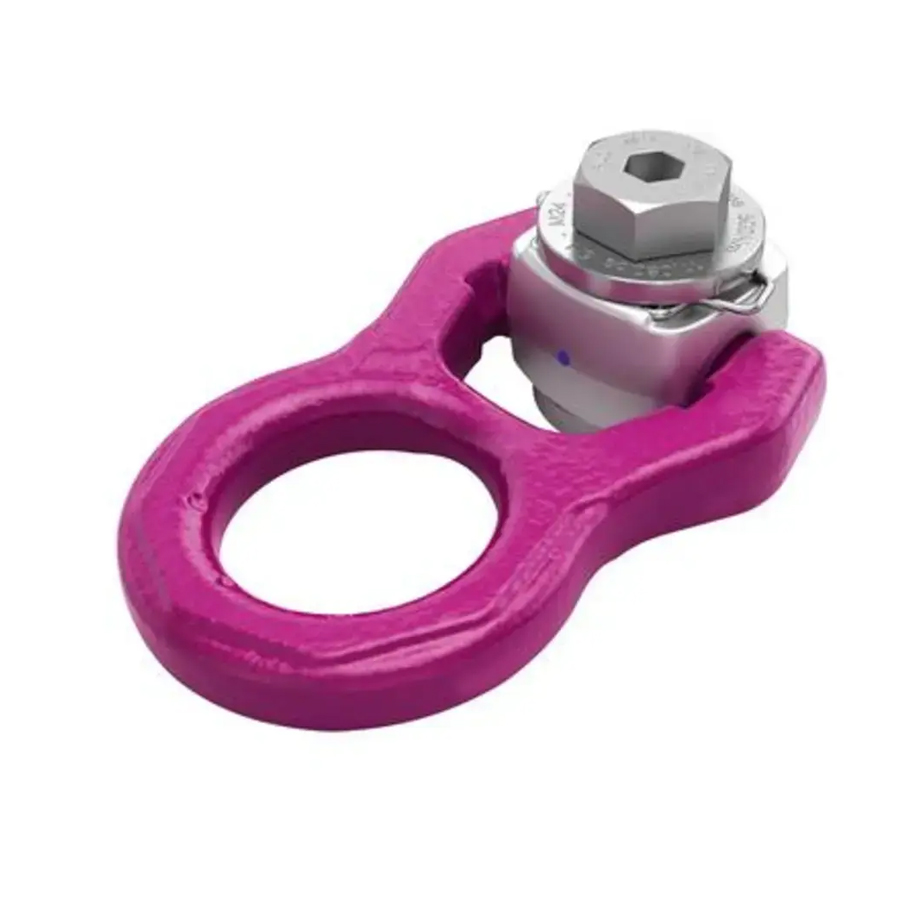

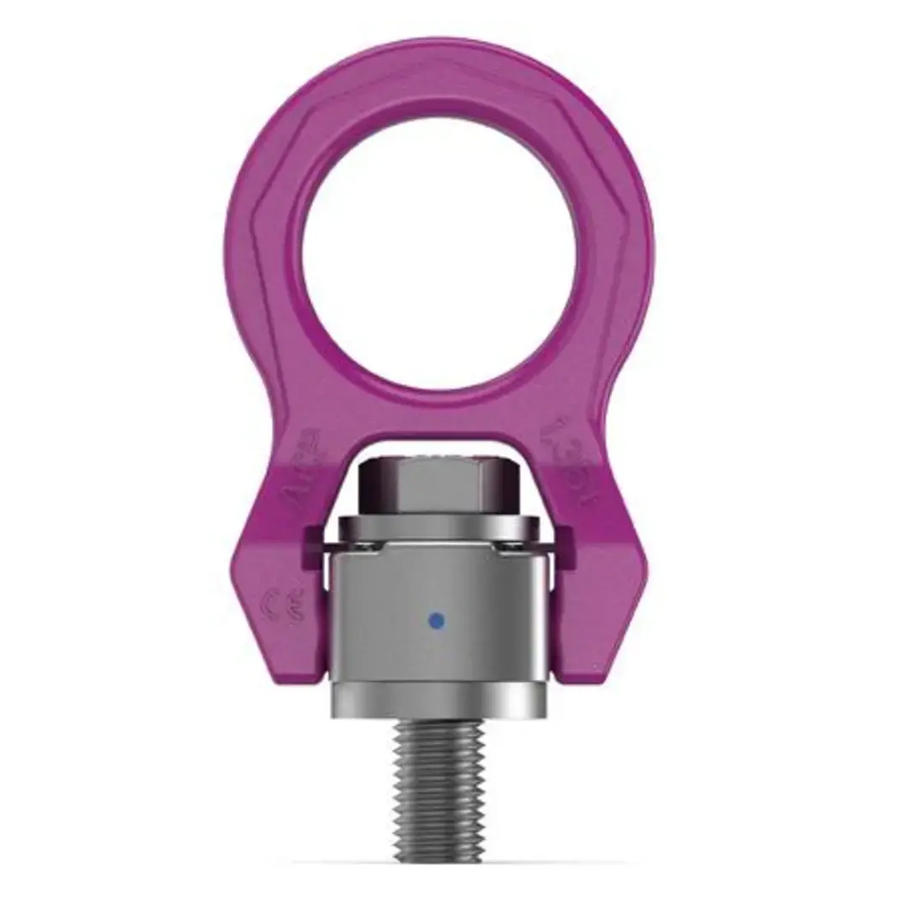

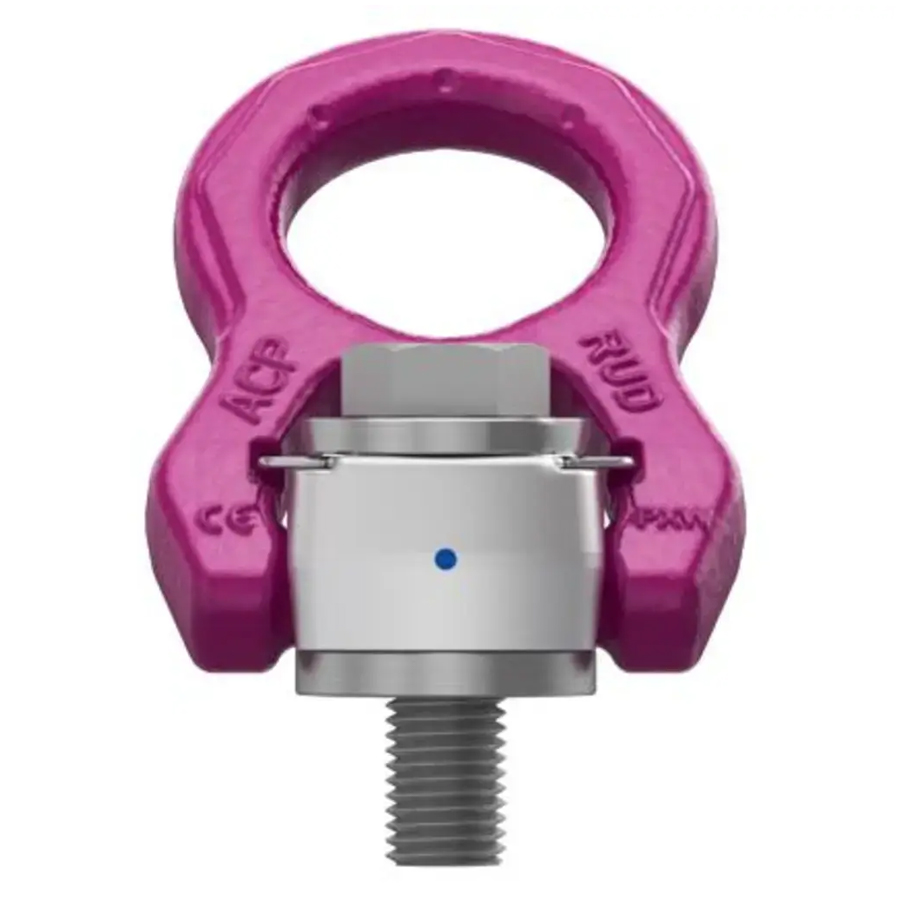

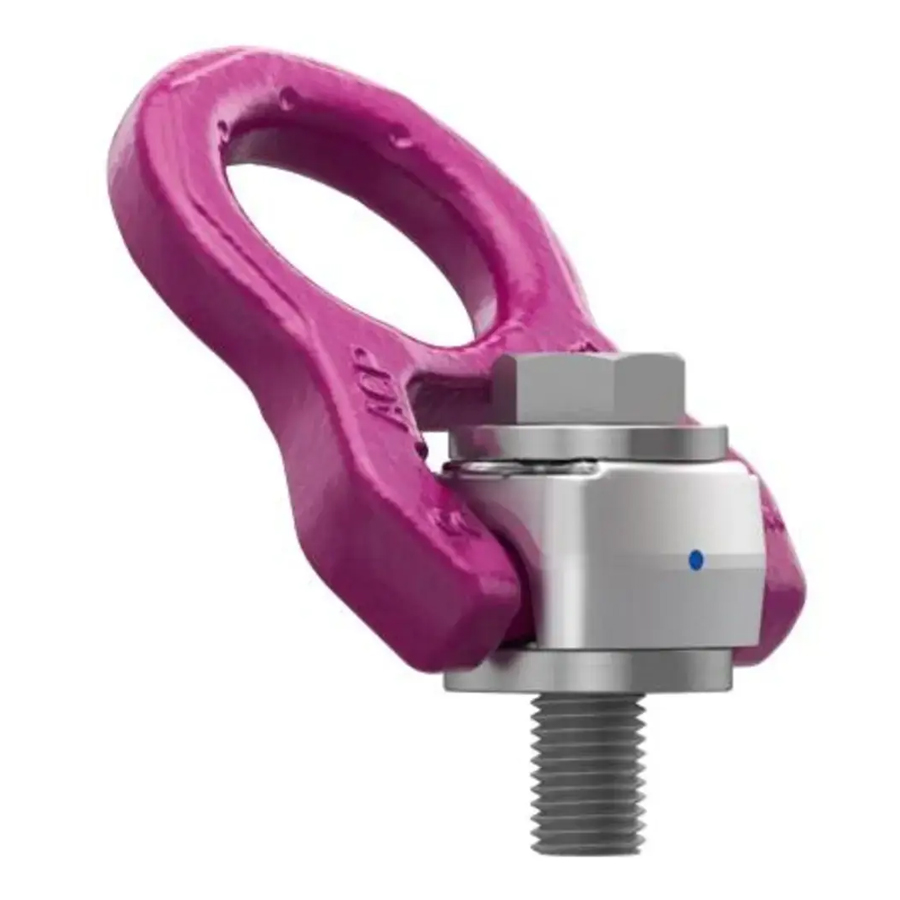

RUD ACP-TURNADO: UNC Thread, Automatic Center Point Boltable Lifting Point

RUD ACP-TURNADO: UNC Thread, Automatic Center Point Boltable Lifting Point

Product Features:

  • Large WLL range 1.35 t – 16 t
  • Higher WLL than comparable design sizes
  • Unique RUD spring mechanism
  • Stuck position of suspension ring avoided
  • No dangerous transverse loads
  • No kinks
  • Pivots 180°
  • Swivels 360°

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

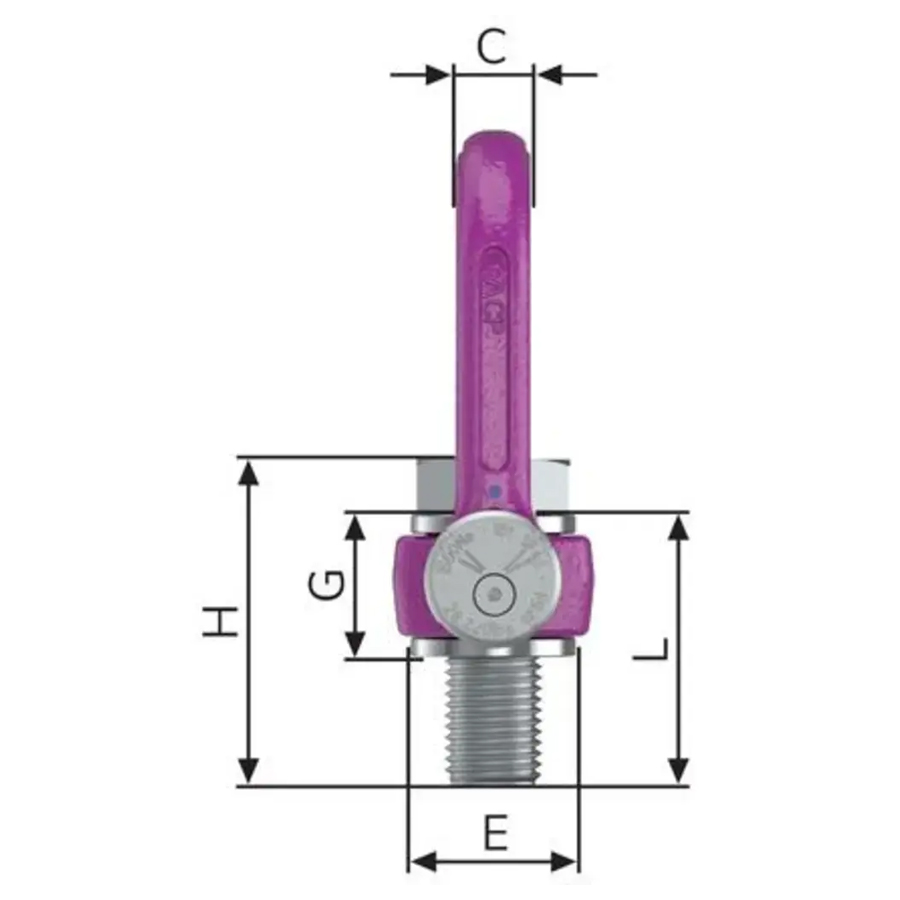

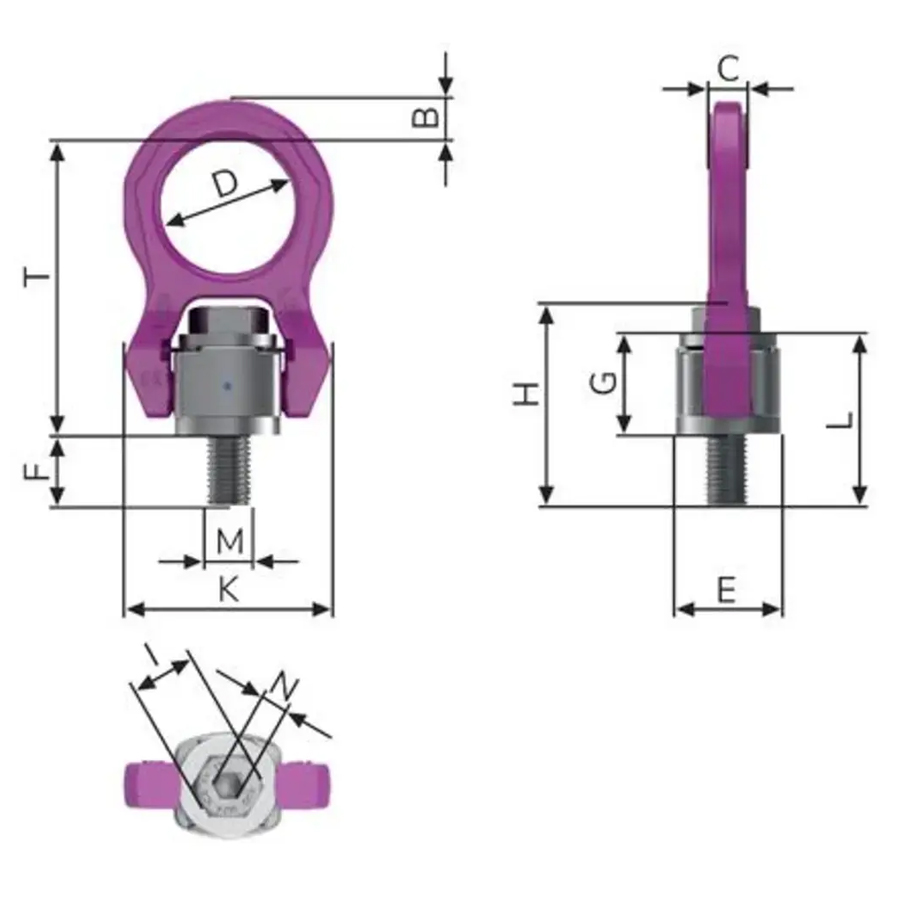

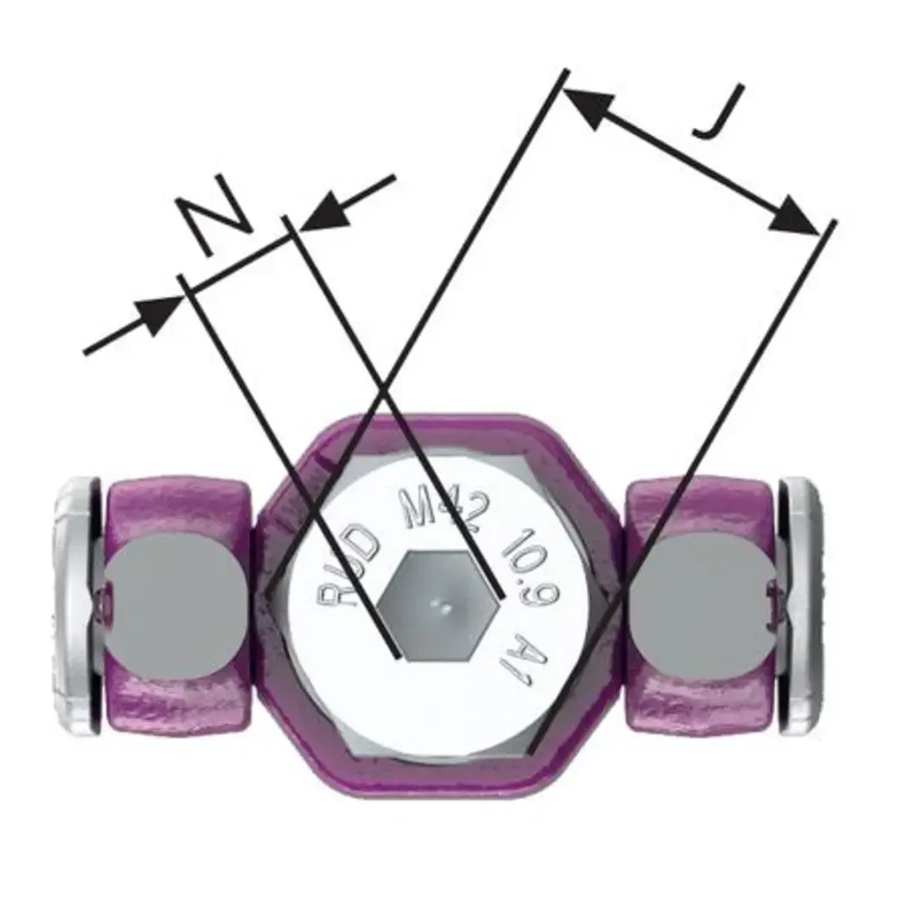

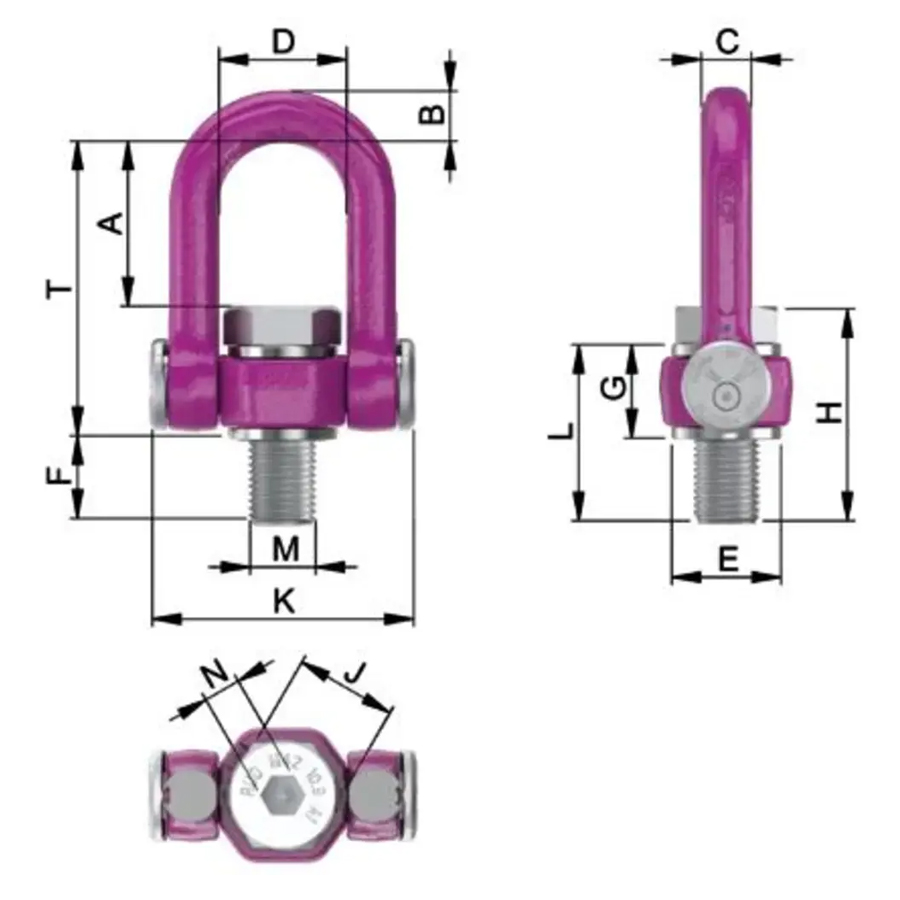

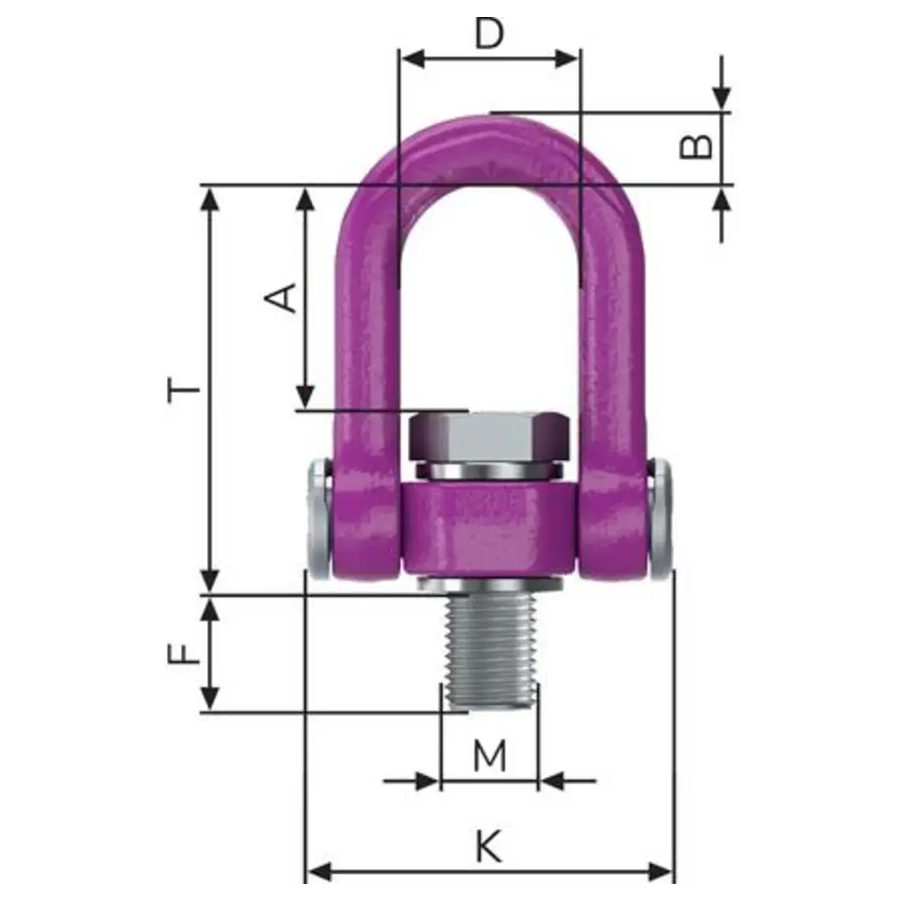

Model Number WLL (lbs.) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I K (mm) L (mm) M N (in.) Pitch T (mm In Stock Price
7909417 2380 11 10.5 38 30 18 28 54 0.75 58 46 1/2″-13UNC 0.31 83 ✔ $
7909418 4400 14 14 50 40 22 36 68 0.94 76 58 5/8″-11UNC 0.38 107 ✔ $
7909419 7040 17 17 50 45 25.5 43.5 81 1.12 89 69 3/4″-10UNC 0.5 118 ✔ $
7909420 11080 23 23 66 60 36 55 105.5 1.5 121 91 1″-8UNC 0.56 154 ✔ $
7909421 14080 29 27 75 75 46.5 68.5 134.5 1.88 148 115 1 1/4″-7UNC 0.62 183 ✔ $
7911054 24690 32 32 82 70 48 60 131 2.25 168 108 1-1/2″-6UNC 0.88 189 ❌ $
7911055 28220 32 32 82 70 56 60 141 2.62 168 117 1-3/4″-5UNC 1 189 ❌ $
7912638 38800 40 40 103 90 63.5 78.5 172 3 204 142 2″-4,5UNC 1.12 235 ✔ $
7912639 57320 45 45 103 95 79 108 187 3 204 142 2 1/2″-4,5UNC 1.12 232 ✔ $
7912640 57320 45 45 103 95 95 108 203 3 204 142 3″-4UNC 1.12 232 ✔ $
7912641 57320 45 45 103 110 111 116 227 3 204 142 3 1/2″-4UNC 1.12 232 ✔ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
