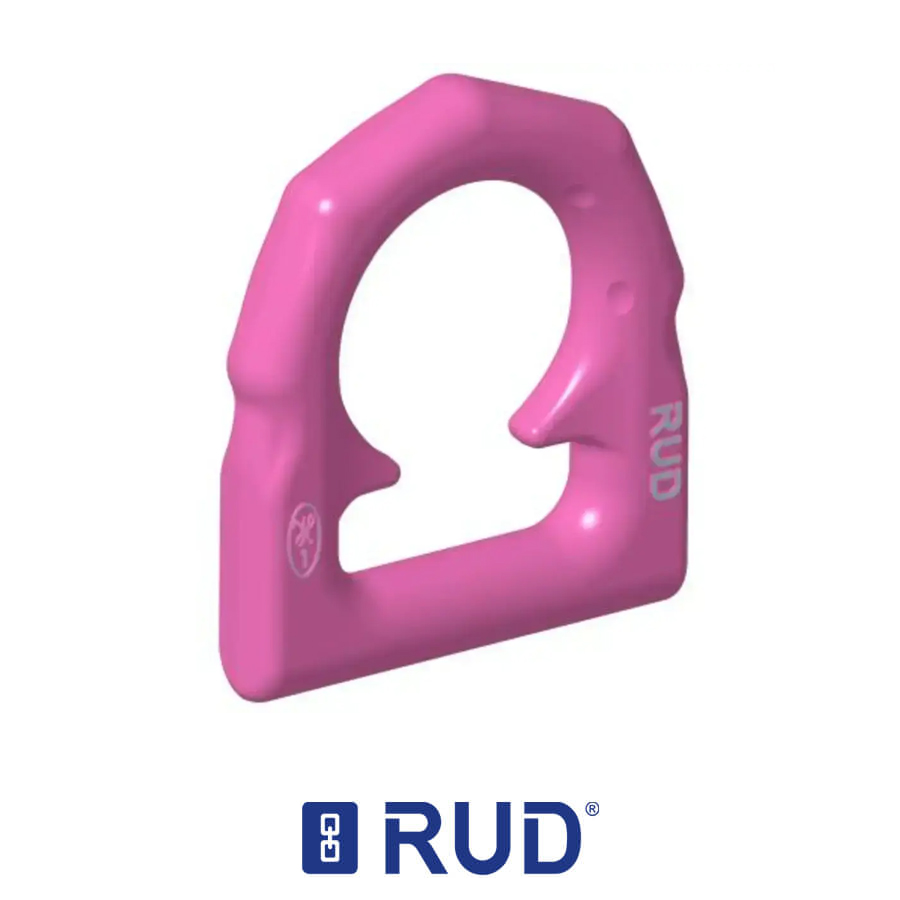

RUD Load Ring – VLBS Ring Only

RUD Load Ring - VLBS Ring Only

  • Large WLL range 1.5 t – 16 t
  • Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring
  • WLL possible up to 90° in load ring plane

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

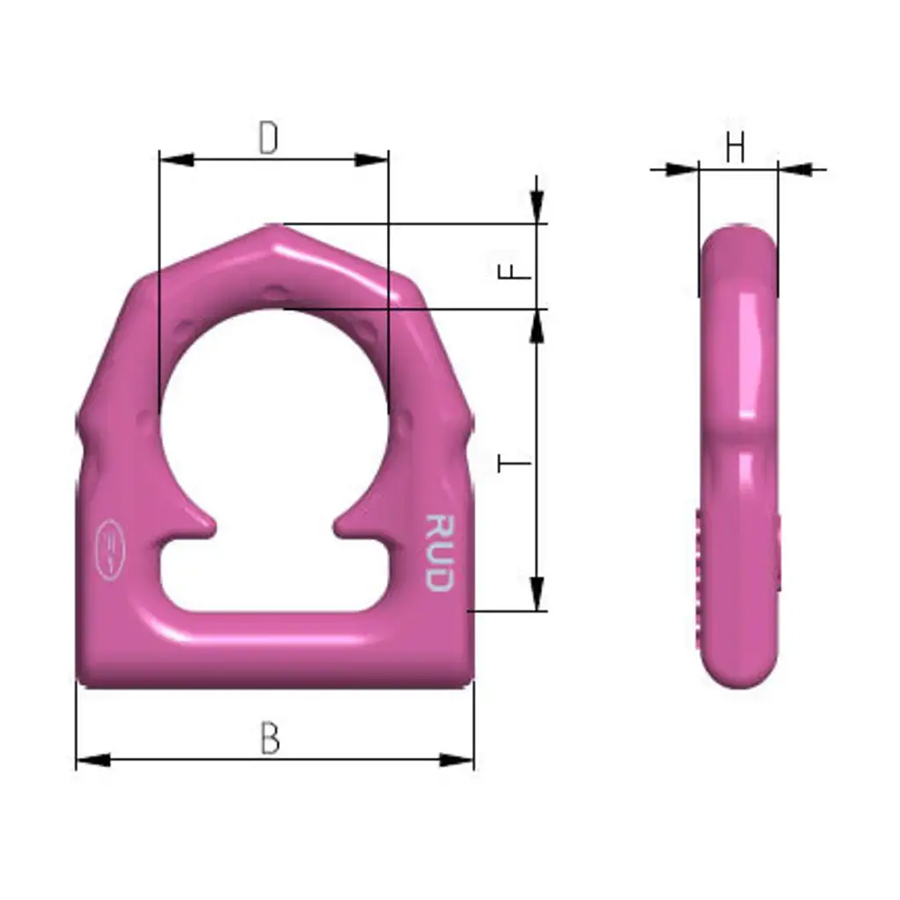

Type WLL (lbs) Dimensions (mm)
B  D F H Pitch T
VLBS-Ring 5500 77 45 16 16 58

  • The new VLBS forged out of high tensile CrNiMo – steel with an innovative design offers many advantages.
    • Up to 50% higher WLL.
    • The two protective supporting lugs (inside the load ring) are patented and they improve the connection with the attachment in addition to the protected clamping spring.
    • The support effect is exceptional, especially if the ring is side loaded or the lifting point is welded on an uneven work piece.
    • The special fluorescent pink powder coating permanently highlights the maximum temperature at which the VIP chain has been used.
  • Easy and quick to weld assemble.
  • Compact and shapely design.
  • High dynamic and static strength.
  • Forged suspension ring acc. to EN 1677, grade 80, electromagnetic crack detected, pink powder coated; meets the requirements of the appropriate safety authorities.
  • The welding block has been forged of material 1.0570 (St 52-3) and clearly stamped with the permissible WLL. The patented distance lugs assist in achieving the correct root weld.
  • Important: By the special weld design (continuous HV), the requirements of DIN 18800 are fulfilled, i.e., a closed weld avoids corrosion and thus suitable for outdoor use.
  • Distinctive features for type LBS-U: A protected spring maintains the load ring in every required position. The parts are assembled in such a way that they remain captive.
  • The spring reduces vibration induced noise.



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
