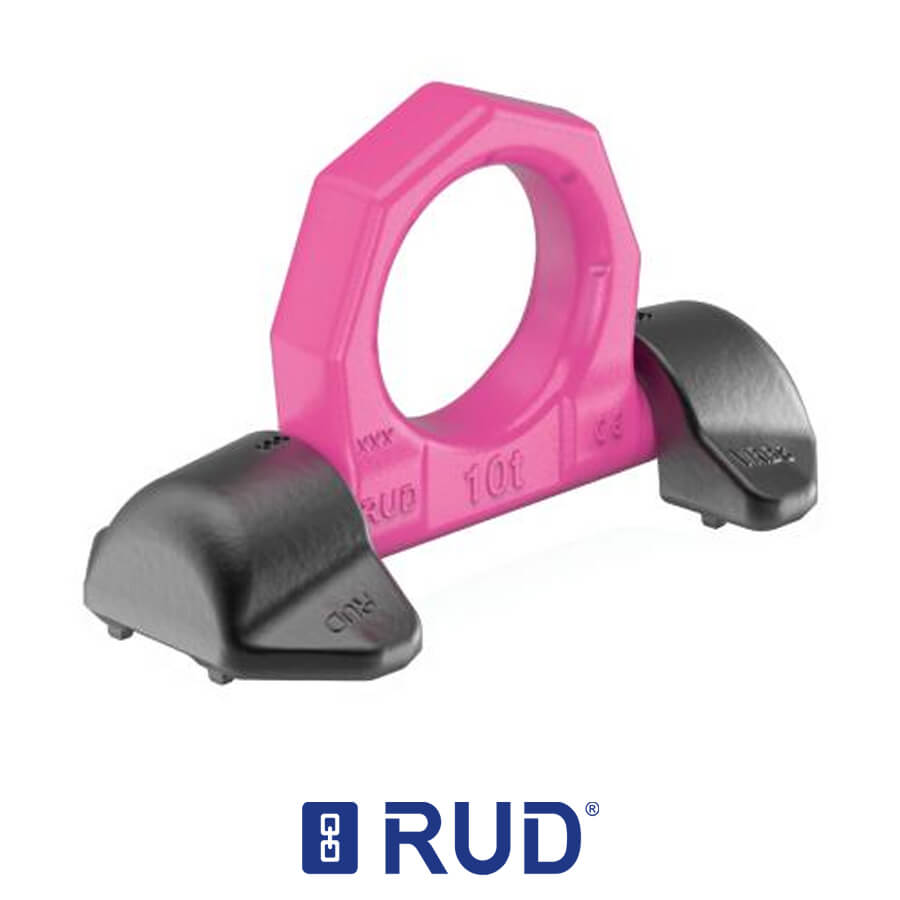

RUD Load Ring – VRBS For Welding

RUD Load Ring - VRBS For Welding


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

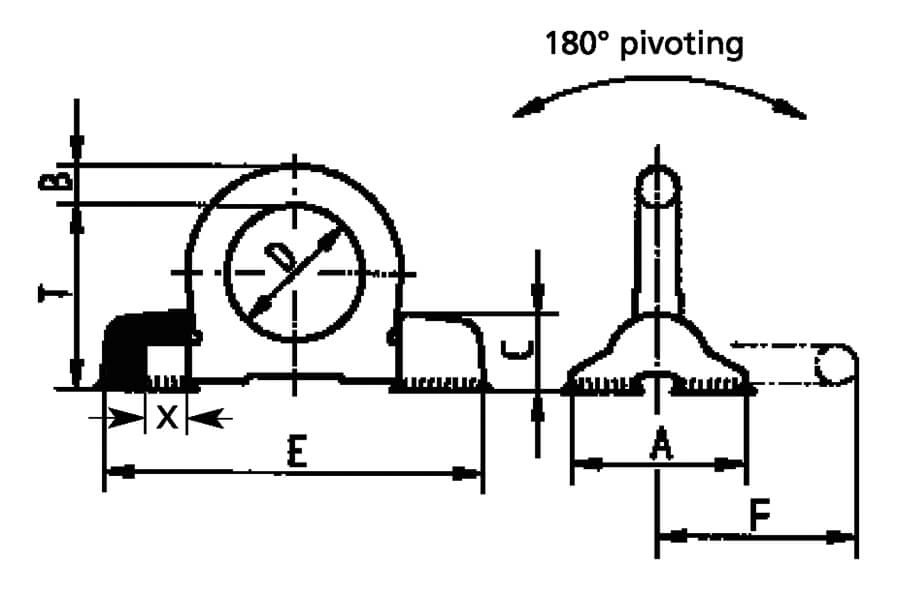

Type RUD No. captive complete WLL lbs. A B C D E F O Q X T Weld HV +   ◣a Weight lbs.
VRBS 4 79 92 488 8800 2-29/64 5/8 1-7/64 1-7/8 5-5/16 2-51/64 21/32 3-1/32 9/16 2-9/16 HV 4 + 3 1.76
VRBS 6.7 79 92 489 14740 3-15/32 25/32 1-17/32 2-3/8 6-11/16 3-19/32 29/32 3-31/32 19/32 3-5/16 HV 5.5+3 4.62
VRBS 10 79 92 490 22000 3-15/16 7/8 1-13/16 2-9/16 7-11/16 3-15/16 1-7/64 4-11/64 7/8 3-3/4 HV 6+4 6.16
VRBS 16 79 92 491 35200 5-1/8 1-3/16 2-1/4 3-35/64 10-7/16 5-9/32 1-13/32 5-25/32 1-7/64 5 HV 8.5+4 14.52
VRBS 30 60267 66000 6-19/64 1-21/32 3-5/64 5-1/8 14-49/64 7-43/64 1-55/64 8-21/32 1-29/64 7 HV 15+4 41.80
VRBS 50 56 834 110000 9-7/16 2-3/4 4-23/32 9-1/16 24-13/32 13-3/8 2-9/16 14-31/32 – 12-21/64 HV 25+8 187.00

  • Distribution of the load force due to the 2 point fixing, hence an optimized force introduction to the work piece.
  • Forged, suspension ring acc. to EN 1677-1, electromagnetic crack detected, pink power coated. Suspension ring can also be ordered single. For instance VRL 4. This lifting point fulfills the requirements of the appropriate safety authorities (German Employer’s insurance Association). Stamped.
  • Lays flat when not in use.
  • Low profile
  • Rounded well shaped design.
  • High dynamic and static strength.
  • The welding blocks are forged out of the ideal weldable steel ST52-3N (S355J2+N) and the nominal WLL is embossed.

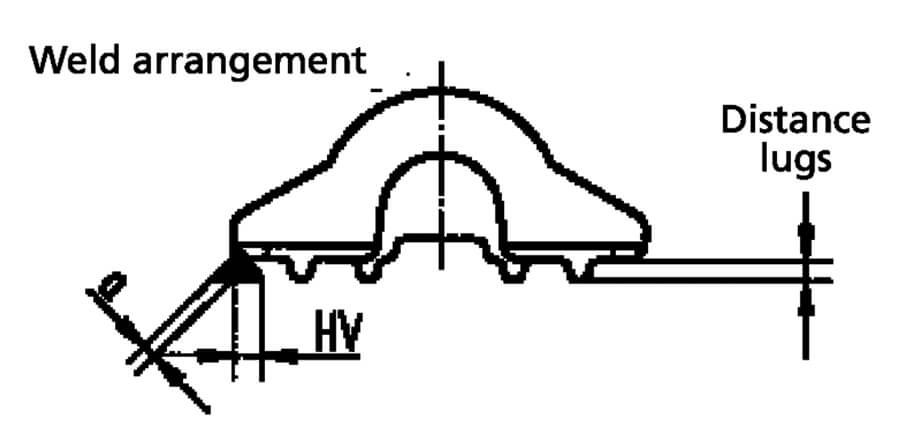

  • Patented distance lugs assist in achieving the correct root weld (approx. 3 mm).
  • The weld arrangement (continuous HV weld) fulfills the requirements of DIN 18800 i.e. the closed weld avoids corrosion and is thus suitable for outdoor use.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
