RUD PowerPoint Star PP-B (Vario)

RUD PowerPoint Star PP-B (Vario)


PowerPoint Star
The first generation of lifting points with a double ball bearing which enables jerk-free turning, swiveling
and tilting. PP-S is designed with a universal connection for every lifting appliance (hook and ring assemblies, round slings, loops endless slings etc.)


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

NOTE: RUD Lifting Points are also available in metric sizes

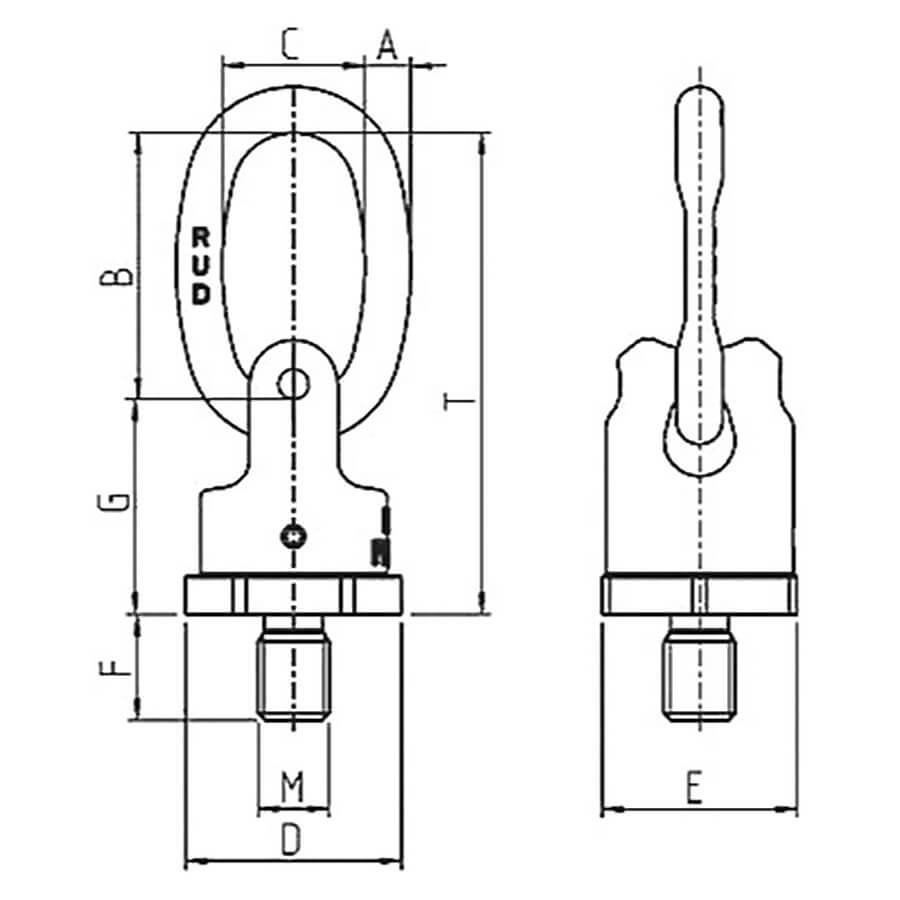

Type RUD
No.		 WLL
lbs.		 M A C T
PP-B – 0.63t-1/2 – 13UNC 7989901 1385 1/2 3/8 1-3/8 4-1/8
PP-B – 1.5t-5/8 – 11UNC 7989902 3300 5/8 7/16 1-3/8 5-7/32
PP-B – 2.5t-3/4 – 10UNC 7989903 5500 3/4 1/2 1-9/16 7-5/16
PP-B – 2.5t-7/8 – 9UNC 7989904 5500 7/8 1/2 1-9/16 7-5/16
PP-B – 4t-1 – 8UNC 7989905 8800 1 5/8 1-3/4 6-3/4
PP-B – 5t-1-1/4 – 7UNC 7989906 11000 1-1/4 7/8 2-3/8 8-3/4
PP-B – 8t-1-1/2 – 6UNC 7989907 17600 1-1/2 1 2-9/16 9-1/2

*Nominal WLL

  • Optimized design prevents the lifting points as well as the load from being damaged
  • Tested design factor 4:1 in any direction
  • Cr Ni Mo Steel, Quenched and tempered
  • Double Ball Bearing for smooth tilting and turning
  • Maximum WLL with the smallest thread diamete
  • Can be turned in a 90° position from the bolt center line
  • Not suitable for permanent swiveling under full load
  • Body and bolt, 100% electro-magnetic alloy crack tested in accordance with specification EN 1677
  • Surface: pink powder coated

Why are RUD-Lifting Points Pink?
The special fluorescent pink powder coating permanently changes color at increased temperatures. If chain reaches temperatures of 400°C, the color changes to a deep black with small bubbles, indicating that the chain as been over-heated; the chain should not be used at this high temperature. The special fluorescent pink powder coating permanently highlights the maximum temperature at which the VIP lifting point has been used.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
