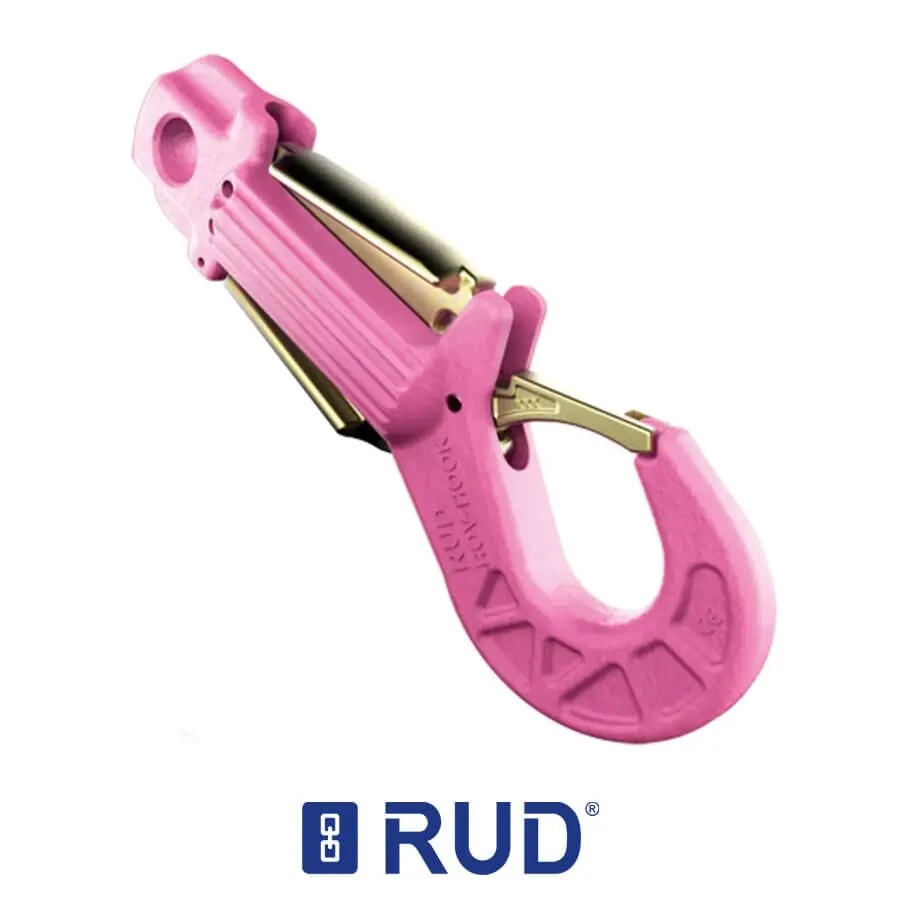

RUD ROV-Hook

RUD ROV-Hook

Access to ROV hooks is important to major subsea and oil and gas contractors for utilization in multi-million-dollar projects to handle valuable loads in hazardous environments, often many miles offshore and up to water depths of 10,000 ft. The safe lifting and lowering of loads on deck and underwater—coupled with ambient conditions, unpredictable currents, and difficult lighting—presents enormous challenges. The RUD ROV hook helps make each lift more efficient, easier, and safer.

Product Features:

  • Two sizes in stock: 10t and 25t
  • The RUD ROV-HOOK eliminates the risk of snagging and accidental rigging
  • The outer profile is smooth with no protruding hook nose
  • Outwards opening safety latch
  • Eliminate dropped loads because the safety latch automatically closes and locks when the ROV releases the triggers
  • The hook can be operated by all commonly used ROV manipulators, including the grabber
  • The hook safety latch opening and closing can be operated by a single ROV manipulator
  • The hook design minimises the time the ROV takes to carry out the attachment/detachment operation
Model Number Nominal WLL (tons) Weight (lbs.) T (in.) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) G (in.) H (in.) In Stock Price
7910553 11.02 29.76 15.5 4.41 1.78 1.78 2.16 6.53 2.56 1.5 3.25 $
7910554 27.55 57.32 19.06 5.19 2.16 2.16 3.63 9.81 3.78 2.06 3.25 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
