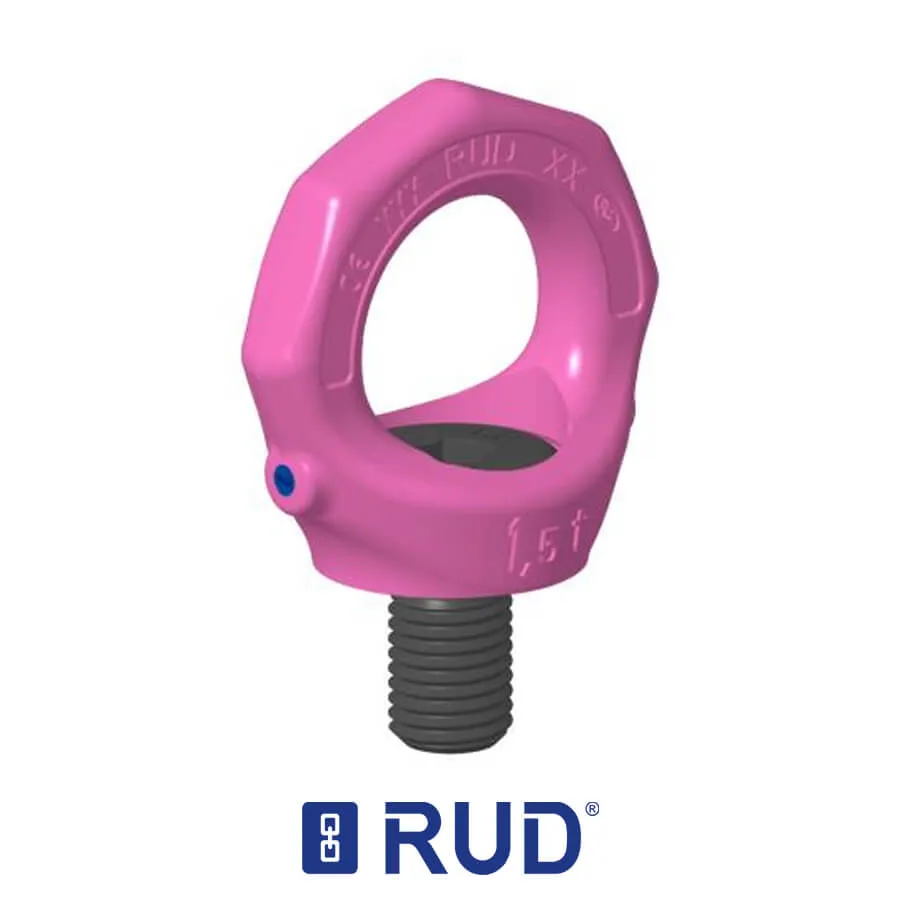

RUD StarPoint® VRS-F Swivel Eyebolt

RUD StarPoint® VRS-F Swivel Eyebolt


The StarPoint® is the perfect solution to eliminate the unsafe and rigid style eye bolt.

  • Safety factor 4:1 in any direction.
  • Marked working load limits (WLL) are rated at 90° from thread.
  • Clear indication of working load limit in metric tons and lbs. for side loading applications.
  • Forged material (1.6541) alloy quenched and tempered.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

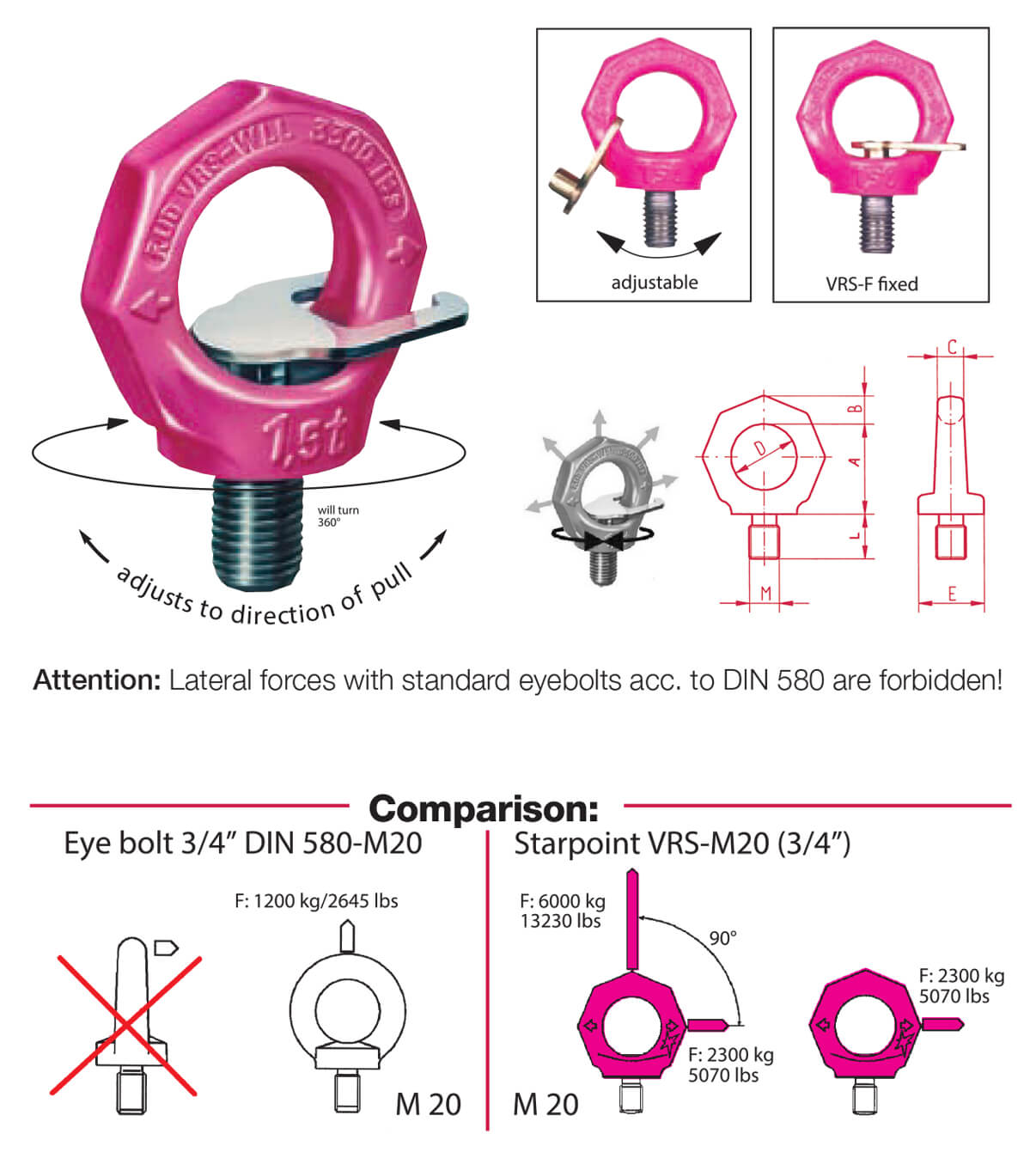

Type
UNC		 RUD
No.		 WLL lbs. M A B C D E L
VRS-F 1/2″-13UNC 8501003 1650 1/2 1-5/8 1/2 3/8 1-3/16 1-3/16 23/32
VRS-F 5/8″-11UNC 8501004 3300 5/8 1-15/16 9/16 9/16 1-3/8 1-3/8 15/16
VRS-F 3/4″-10UNC 8501005 5070 3/4 2-1/4 11/16 11/16 1-9/16 1-9/16 1-3/16
VRS-F 7/8″-9UNC 8501006 5070 7/8 2-1/4 11/16 11/16 1-9/16 1-9/16 1-1/4
VRS-F 1″-8UNC 8501007 7050 1 2-3/4 13/16 13/16 1-7/8 1-7/8 1-13/32
VRS-F 1 1/4″-7UNC 8501008 9920 1-1/4 3-3/8 1 1 2-3/8 2-3/8 1-3/4

*Nominal WLL; Box quantities

Type
Metric		 RUD
No.		 WLL
t		 M A B C D E L
VRS-F M10 7982213 0.4 10 34 11 8.5 25 25 15
VRS-F M12 7982214 0.75 12 42 13 10 30 30 18
VRS-F M16 7982215 1.5 16 49 15 14 35 35 24
VRS-F M20 7982216 2.3 20 57 17 16 40 40 30
VRS-F M24 7982217 3.2 24 69 21 19 48 48 36
VRS-F M30 7982218 4.5 30 86 26 24 60 60 48
VRS-F M36 7984201 7 36 103 32 29 72 75 54
VRS-F M42 7984202 9 42 120 38 34 82 85 63
VRS-F M48 7984203 12 48 137 43 38 94 100 72

*Nominal WLL; Box quantities



  • The Distinct Florescent pink powder-coating changes its color when temperatures exceed 200°C. If the StarPoint® reaches temperatures of 400°C, the color changes to a deep black
    with small bubbles, indication that it has been over-heated.
  • Body and bolt, 100% electromagnetic alloy crack tested in accordance with specification EN 1677.
  • The StarPoint® is supplied with an annealed star-profile-key. Simply engage the Hexagon socket bolt with the star-profile-key and use your fingers to respectively tighten or untighten the arrangement. Disengage the key.
  • The StarPoint® is rotatable!

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
