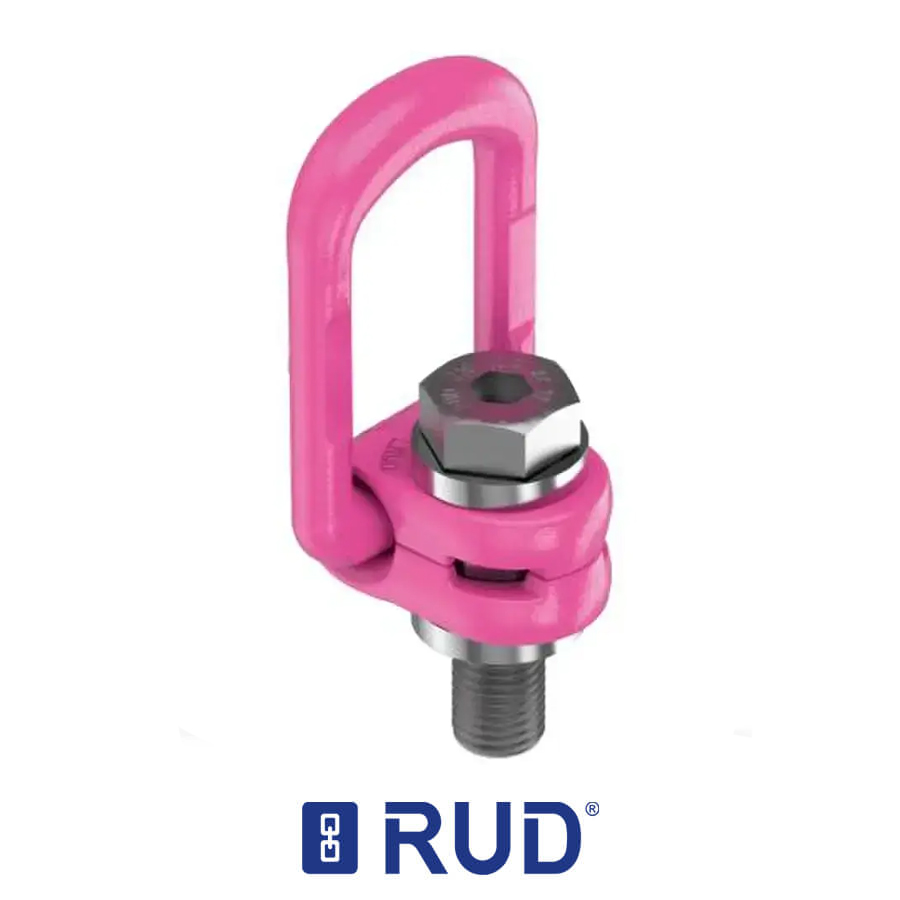

RUD VLBG Ring Bolt, metric fine thread with variable length

RUD VLBG Ring Bolt, metric fine thread with variable length

Product Features:

Large WLL range
Captive but exchangeable RUD-Bolt with special corrosion protection Corrud-DT
The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state

VIEW IN CATALOG

WARNINGS & CAUTIONS

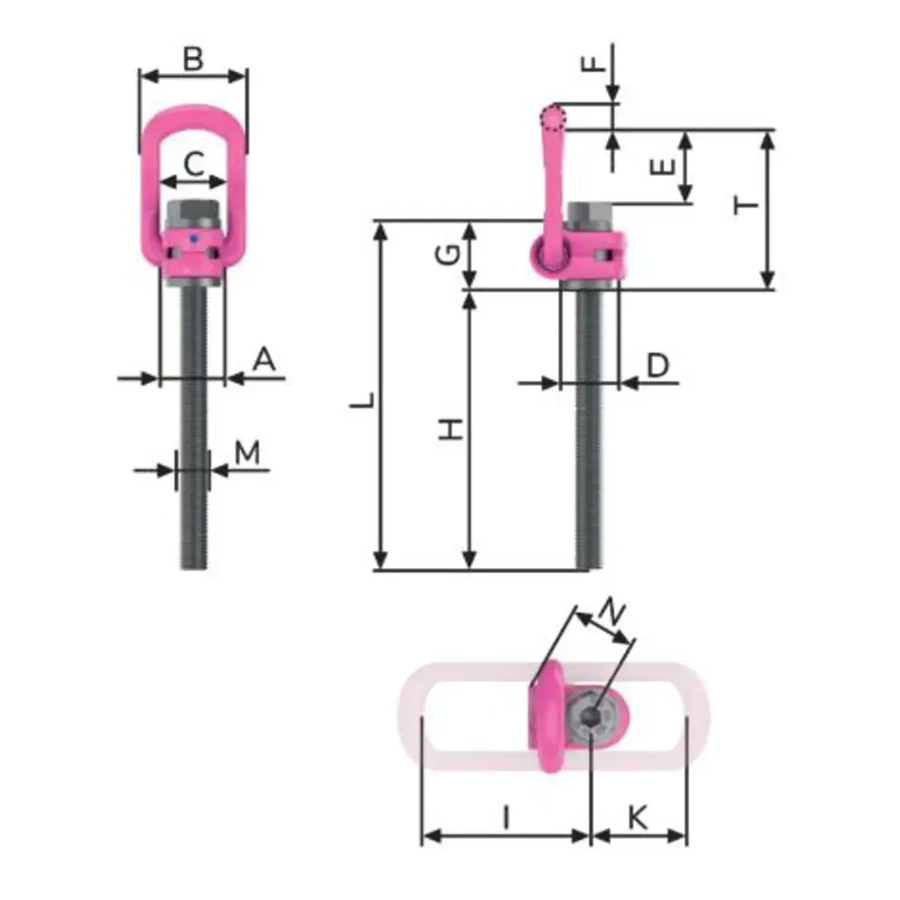

Model Number	WLL (lbs.)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H Max (mm)	H Min (mm)	I (mm)	K (mm)	L Max (mm)	L Min (mm)	M	N (mm)	Pitch T (mm)	In Stock	Price
8600382	2200	32	54	34	26	38	10	29	31	12	75	45	60	41	M12x1,5	32	75	❌	$
8600383	3300	33	56	36	30	39	13.5	36	39	16	86	47	75	52	M16x1,5	38	85	❌	$
8600386	8820	50	82	54	45	67	18	43	62	24	130	78	105	67	M24x1,5	48	125	✔	$

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
