RUD VWBG-V Load ring, metric thread

RUD VWBG-V Load ring, metric thread

Product Features:

  • Large WLL range 0.3 t – 5 t
  • Clear indication of the minimum WLL for all loading directions. Higher WLL by optimised attachment or application
  • Rotatable 90° to the bolt-on direction under rated WLL
  • Variable bolt lengths available for use in threaded and through holes
  • Non-removable special bolt (do not use unsuitable standard screws)
  • RUD bolts with special corrosion protection Corrud-DT
  • Large clearance between the bolt-on surface and load to prevent damage

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

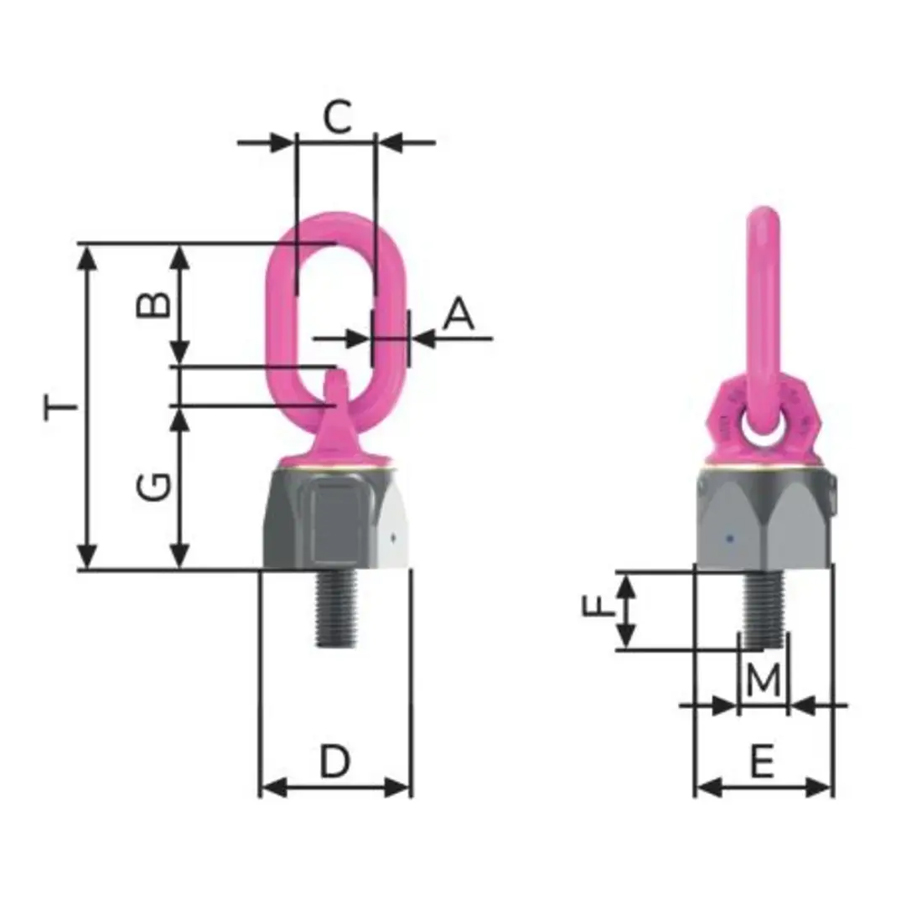

Model Number WLL-X (tons) WLL-Y (tons) WLL-Z (tons) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) M Pitch T (mm) In Stock Price
7103720 0.3 0.4 0.6 8 31 29 30 27 13 36 M8 76 ✔ $
7103715 0.45 0.6 0.9 8 31 29 33.5 30 17 38 M10 78 ✔ $
7100180 0.45 0.75 1.2 10 49 35 42 36 21 47 M12 107 ✔ $
Item# 7910221 0 0 0 0 0 0 0 0 0 0 0 ❌ $
7100430 1.3 1.5 2.6 13 46 38 48 41 25 56 M16 114 ✔ $
8600338 M18 F32 MM 1.8 2 3.6 13 54 35 62 55 27 67 M18 137 ✔ $
7100800 2 2.5 4 13 54 35 62 55 33 67 M20 137 ✔ $
8600334 M22 F94MM 2 2.5 4 13 54 35 62 55 33 67 M22 137 ❌ $
7100640 3.5 4 7 18 66 40 81 70 40 88 M24 173 ✔ $
8600335 M27 F41MM 3.5 4 7 18 66 40 81 70 41 88 M27 173 ❌ $
7100650 5 6 10 22 90 50 99 85 50 106 M30 221 ✔ $
