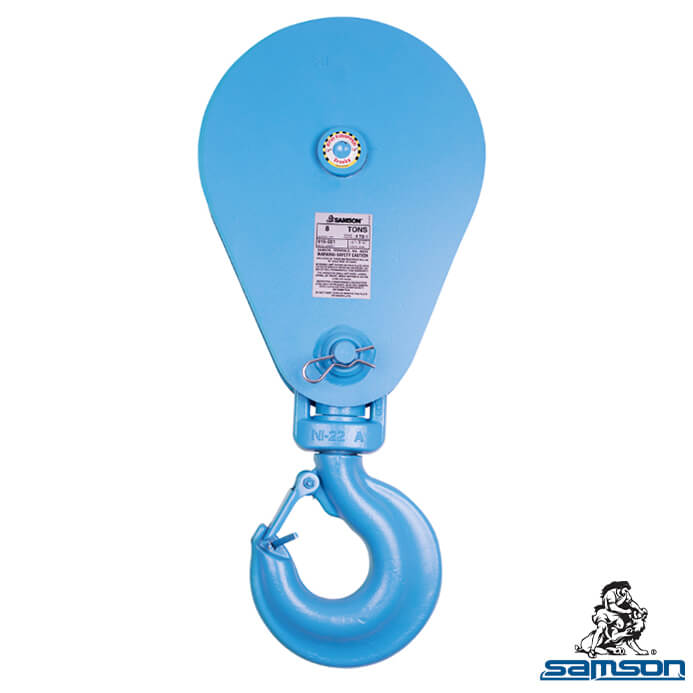

Samson Nylite™ Snatch Block

Samson Nylite™ Snatch Block

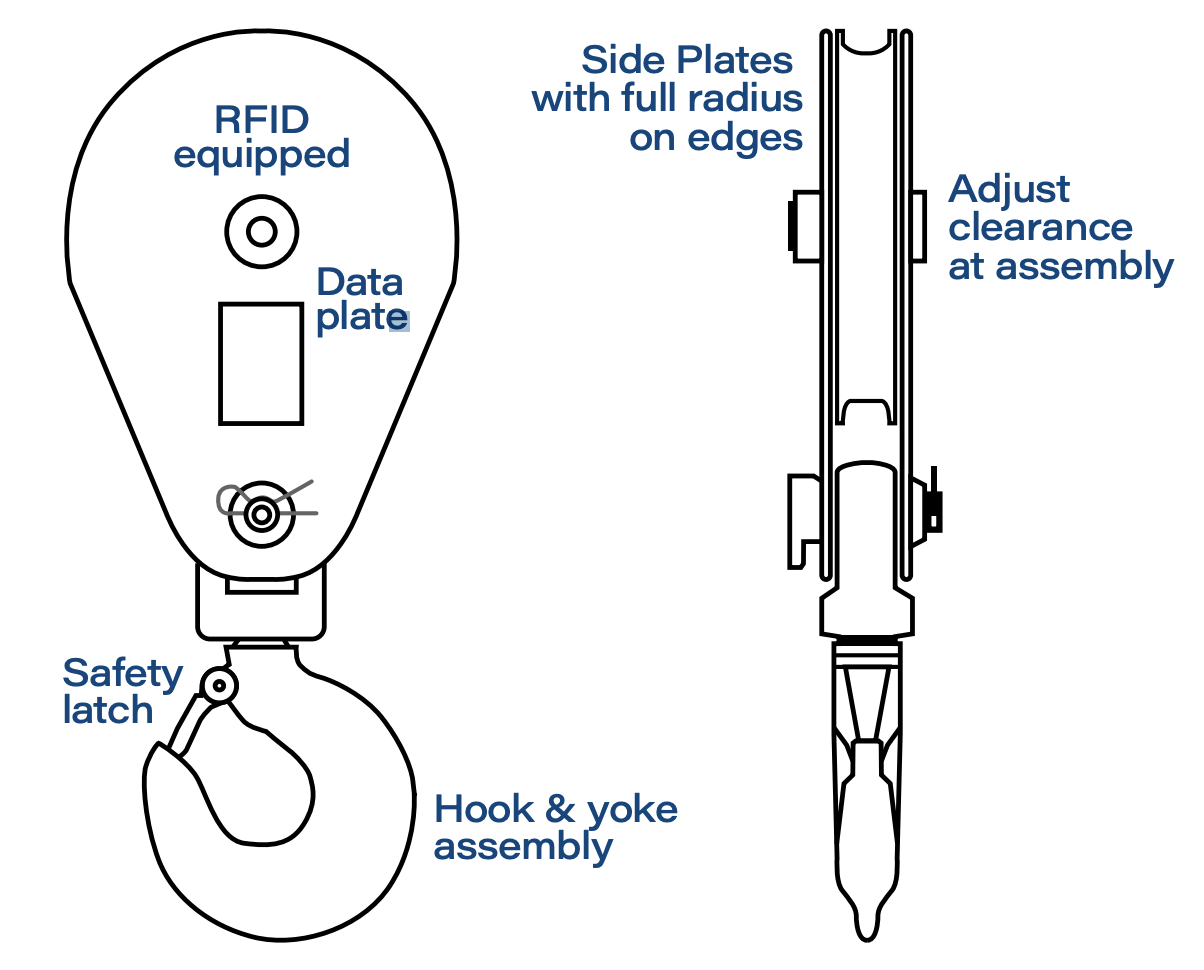

The Nylite Snatch Block maximizes a two-part lifting system without over stressing synthetic rope. The exclusive high-strength sheave reduces weight while providing the proper radius and groove shape to eliminate rope wear. The swivel plate has a locking bolt that makes change over easy and fast. The hook swivels under no- to low-load conditions.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Nylite™ Snatch Block
CERTEX Cat. Ref. No. CX09-0024
Part No. 915-321
Rope Dia. 7/8″ to 1-1/8″
Max. Workload 8 tons
Block Wt. 33 Ibs.
Overall Length (A) 23.0″
Hook Opening (B) w/latch 1.5″
Steel Cheek Plates & Hook -Request Blueprint #00201045 for strengths, standard for usage and maintenance

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
