Crosby® SHUR-LOC® S-1316 Eye Hook with Positive Locking Latch

Crosby® SHUR-LOC® S-1316 Eye Hook with Positive Locking Latch

• Forged Alloy Steel — Quenched and Tempered.
• 25% stronger than Grade 80.
• Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
• Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
• Easy to operate with enlarged thumb access.
• Positive Lock Latch is SelfLocking when hook is loaded.
• Eye style is designed with “Engineered Flat” to connect to S-1325 chain coupler.
• Suitable for use with Grade 100 and Grade 80 chain.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

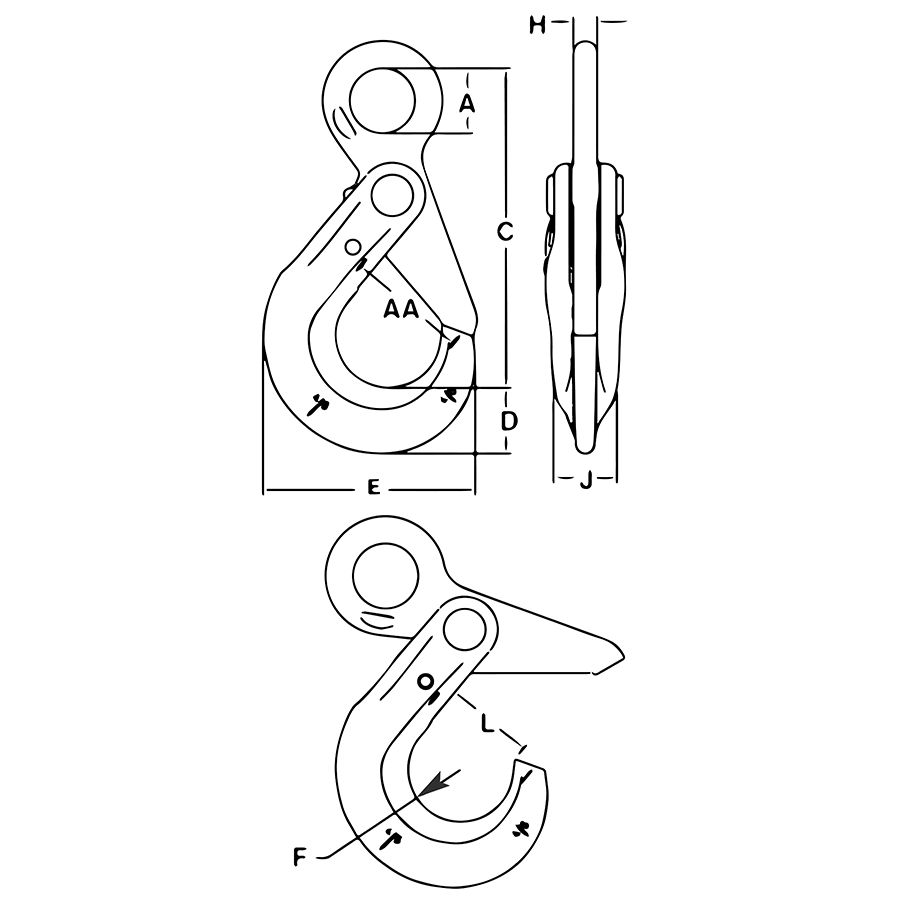

Chain Size Working Load Limit (lbs)* S-1316 Stock No. Weight Each (lbs.) Dimensions (in.)
(in.) (mm) A B C F E H J L AA
– 6 3200 1022896 0.85 0.78 3.95 0.79 2.60 0.67 0.31 0.63 1.14 1.50
1/4-5/16 7-8 5700 1022914 1.80 1.08 5.31 1.10 3.50 0.87 0.39 0.81 1.48 2.00
3/8 10 8800 1022923 3.40 1.30 6.57 1.17 4.39 1.10 0.51 0.94 1.83 2.50
1/2 13 15000 1022932 6.00 1.65 8.23 1.67 5.45 1.26 0.67 1.16 2.22 3.00
5/8 16 22600 1022941 15.1 2.20 10.06 2.04 6.56 1.50 0.87 1.50 2.65 3.50
3/4 18-20 35300 1022942 19.0 2.60 10.77 2.22 7.76 2.01 0.87 2.03 3.52 –
7/8 22 42700 1022943 28.0 2.87 12.49 2.45 8.75 2.27 0.98 2.20 3.83 –
1 26 59700 1022944 49.5 3.15 14.60 3.21 9.87 2.46 1.26 2.68 4.09 –

* Minimum Ultimate Load is 4 times the Working Load Limit.



• The SHUR-LOC® hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA.
• Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B).
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• “Look for the Platinum Color – Crosby Grade 100 Alloy Products”.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
